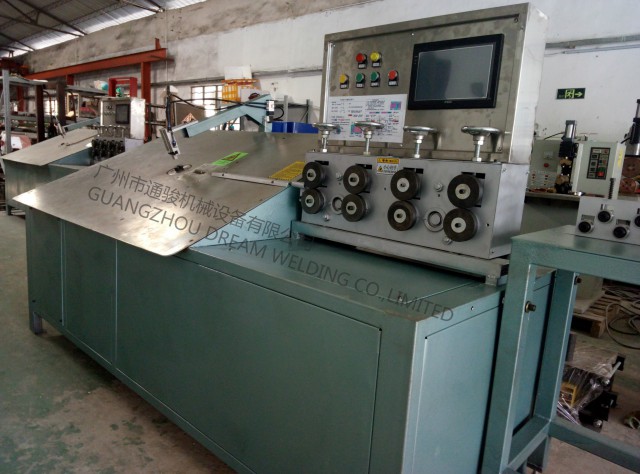

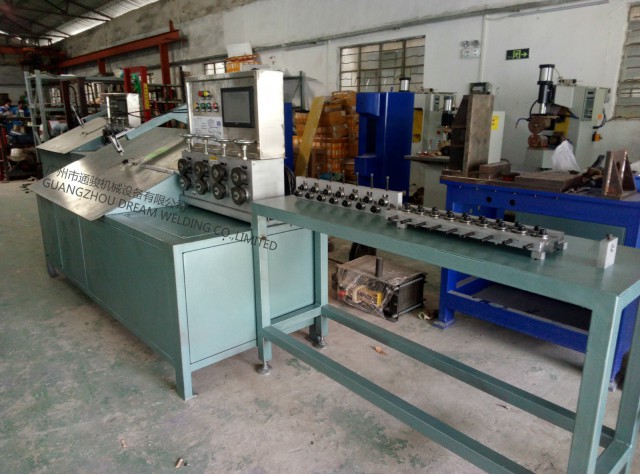

功能与特点：
1. 本设备设计理念，以机器代替人工，无需调直机构、无需开模即可生产，只要产品是在一个平面上，各种形状均可成型。
2. 选用高精度伺服控制系统驱动伺服电机，机械传动选用精密齿轮连接，永远保持不变的送线精度和送线速度
3. 剪切油缸液压站配备强制风冷散热器，保证机器长期连续工作的稳定性，加倍延长液压系统元件的使用寿命
4. 控制系统采用PLC与人机触摸屏连接，既方便操作，又保证了控制系统的稳定性，而且设计有生产数量预置功能，设定好产量后，设备自动连续运行，为企业节省了人工开支

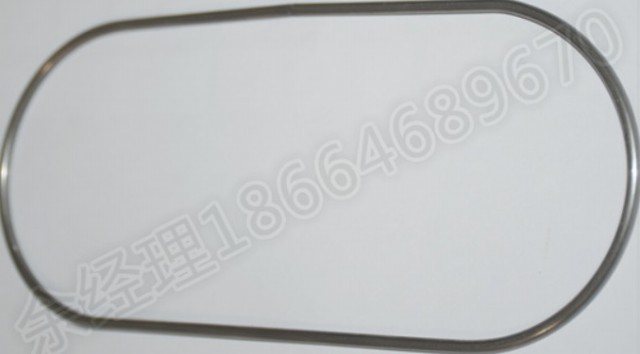

5. 主要用于铁线、不锈钢线、铜线、铝线成型（弯制）各种不规则形状的平面产品，如方、圆、六角、椭圆、各种扣类、各式挂钩及不同圈径和不同弧形的线材
Functions and features:
1.This equipment design concept, This equipment design concept, No need straightening materials, do not need to open mold production, as long as the products are in one plane, various shapes can be formed;
2.Selects the high precision servo motor servo control system, Mechanical transmission choice precision gears to connect,Always keep constant wire feeding precision and linear velocity;
3.Shear cylinder hydraulic station equipped with forced air cooling heat sink, Ensure the long-term continuous working stability of machine, Double extend the service life of hydraulic system components;
4.Control system adopts PLC and touch HMI connection, Convenient operation, and ensure the stability of the control system.Preset functions and design with production quantity, Set production, equipment automatic continuous operation, saving the expenditure of the hire people for the enterprise;
5.It is mainly used for iron wire, stainless steel wire, copper wire, aluminum wire forming (bending) all kinds of irregular shape of flat products, such as square, round, hexagonal, oval, all kinds of buttons, all kinds of hook and different ring of wire diameter and different arc.
主要技术参数Main Technical Parameters:
|
机种型号Machine Model |
TJCX2-6 |
TJCX4-8 |
|
线径范围Wire diameter range |
Φ2-6mm铁线iron wire |
Φ4-8mm铁线iron wire |
|
输入电压Input Voltage e |
380V 50Hz/60Hz |
|
|
伺服电机功率Servo motor power |
4.5KW |
7.5KW |
|
切断油缸切力Cylinder Shear force |
Φ7.0铁线iron wire |
Φ9.0铁线iron wire |
|
油压范围Oil pressure range |
0.3-0.6Mpa |
0.3-1Mpa |
|
液压油型号Hydraulic oil model |
46#/68# |
|
|
适用线材Wire Range |
圆线、方线、扁线（适用任何材质线材） Round, square, flat wire (suitable for any material wire) |
|
|
送线长度length of wire feeding wire |
按照用户设定According to the user setting |
|
|
储存数据Store data |
50组数据，300个动作一组50 sets of data, a set of 300 actions |
|
|
最大送线速度Max. Wire Feed Speed |
50M/Min |
45M/Min |
|
最大弯折速度max. bending speed |
300转/Min 角度±180度 300 rpm /Min Angle±180o |
|
|
弯折精度Bending accuracy |
±0.5mm |
|
|
送线精度Wire feeding accuracy |
±0.2mm |
|
|
外观尺寸Machine size |
2000*800*1500mm |
2800*850*1500mm |
|
机器重量Machine weight |
1000KG |
1200KG |
|
标准配备Sandard equipment: |
送线架一个(A Wire feeding frame) |
|
|
(1) 送线轮Wire feeding wheel |
3pcs |
|
|
(2) 切刀+切刀固定座cutter+Cutting knife block |
1SET |
|
|
(3) 旋转头 rotate handpiece |
2PCS |
|
|
选备配件: Optional accessories |
||
|
(1) 送线架Wire feeding frame 500KGS 或 1000KGS 或 1500 KGS |
||
