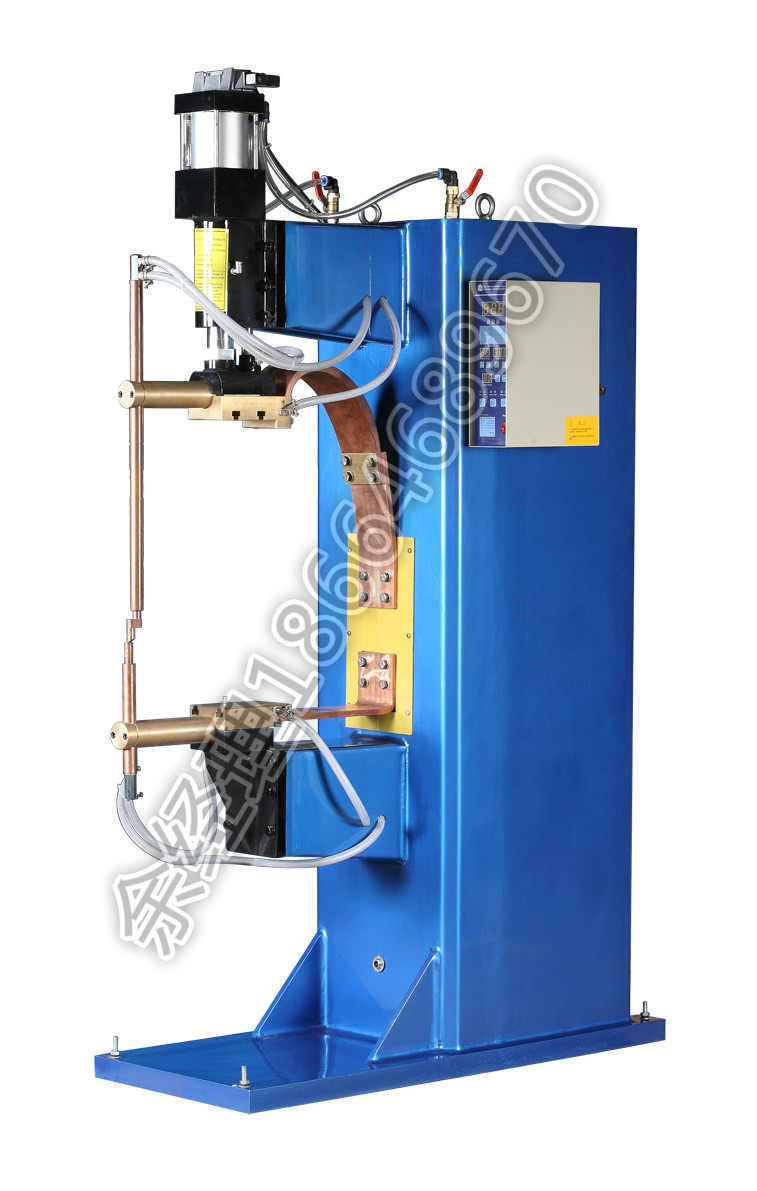

特点：
1.特殊设计的一体化加压气缸，确保加压的稳定性、随动性及焊接速度，一体式高强度的机架结构,更具有抗冲击及抗震能力。
2.全铜水冷变压器，进口矽钢片，环氧树脂浇铸，占载率高，使用寿命更长
3.多路循环水冷却系统，保证设备长期运行的可靠性和稳定性。

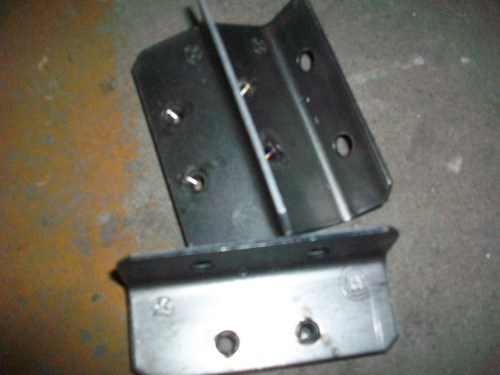

4.点焊和凸焊兼用，最大发挥焊接性能。
5.配备恒压、恒流、恒热量、多段放电、缓升缓降等多功能微电脑控制器，可储存多组焊接参数，轻松满足客户对焊接产品品质的高要求。
Main Features:
1.Special design of Integrated Pressurized Cylinder, To ensure the stability and the pressure of the pressure and the speed of welding,Integrated high-strength frame Structure,more impact resistant and anti-shock ability under high pressure operation.
2.All copper water-cooling transformer,Multi-channel forced water cooling system to ensure the reliability of the machine running for long time
3.Improved water-cooling system guarantees flawless performance in heavy-duty applications.
4.Rigid Frame of the Machine allows the use as Projection or Spot welder.
5.equipping functions of Constant Voltage,Constant Current,Constant Heating,Slowly Increasing,Slowly Decreasing,save multi-group Schedule Number,etc.Easily meet customers,high requirements of welding quality
主要技术参数 Main technical Parameters:
|
项目 Item
型号 model |
额定 容量 Rated capacity |
额定初 级电压 Rated Primary voltage |
额定 频率 Rated frequency |
最大次 极电流 Max. secondary current |
负载持续率Rated duty cycle |
臂伸 尺寸 Arm length
|
最大加压力 Maximum Force
|
电极 行程 Electrode stroke |
冷却水 Cooling Water flow |
重量 weight |
电极尺寸 Electrode size |
||
|
电极头
Electrode Head |
电极握杆
Electrode holding rod |
电极臂杆
Electrode arm |
|||||||||||
|
KVA |
V |
Hz |
A |
% |
mm |
N |
mm |
L/min |
Kg |
(mm) |
(mm) |
(mm) |
|
|
TDN-25 |
25 |
380 |
50/60 |
17500 |
50 |
380 |
2500 |
60 |
6 |
300 |
16 |
20 |
45*200 |
|
TDN-35 |
35 |
380 |
50/60 |
18500 |
50 |
380 |
4000 |
60 |
6 |
380 |
16 |
25 |
50*200 |
|
TDN-50 |
50 |
380 |
50/60 |
20000 |
50 |
380 |
6000 |
60 |
6 |
430 |
16 |
25 |
50*200 |
|
TDN-75 |
75 |
380 |
50/60 |
25000 |
50 |
380 |
6280 |
60 |
8 |
500 |
16 |
25 |
60*200 |
|
TDN-100 |
100 |
380 |
50/60 |
30500 |
50 |
380 |
6280 |
60 |
8 |
600 |
16 |
25 |
60*200 |
|
TDN-150 |
150 |
380 |
50/60 |
38500 |
50 |
380 |
9800 |
60 |
12 |
750 |
20 |
30 |
80*250 |
|
TDN-200 |
200 |
380 |
50/60 |
43000 |
50 |
380 |
9800 |
60 |
12 |
800 |
20 |
30 |
80*250 |
