特点和用途：
1. 包含两种基本的机型：横缝焊接和纵缝焊接。
2. 一台机器可以同时具备横缝焊接和纵缝焊接两种功能，只要将转换一下上电极轮的方向和更换
一下下电极臂，就可以在几分钟内完成两种焊接方式的切换。
3. 单轮采用进口变频器无级调速驱动，焊接速度调整方便，保证上下两轮切线速度一致。
4. 采用可调行程气缸加压，避免上下电极碰撞损伤。
5. 电源可选择中频逆变直流或普通交流。
6. 广泛用于箱体:如汽车、摩托车油箱；桶体:如钢桶、油桶以及成形板材工件：如轮圈\消声\暖气片等的缝焊.
Main Principle:

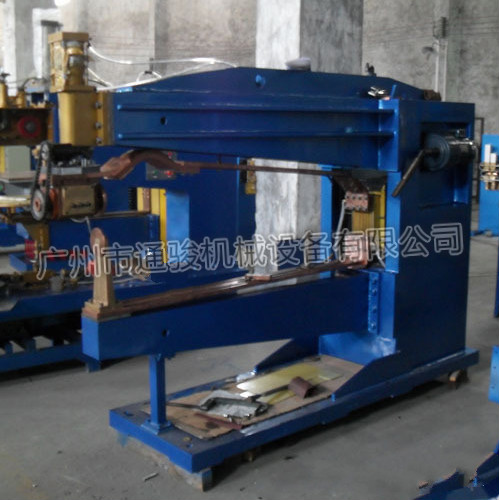

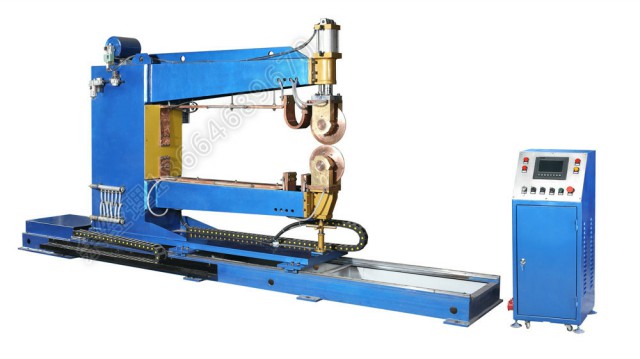

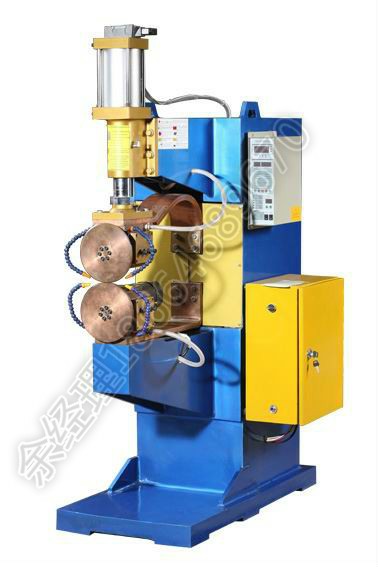

1. There is two standard models: Transversal Seam Welding Model and Longitudinal Seam Welding Model.
2. Also one machine can be used as both transversal seam welding and longitudinal seam welding, only need to change the direction of upper seam wheel head and change the lower welding head and welding arm within minutes.
3. Driven one head and free the other head. The two seam wheels have the same tangential speed.
4. Adopt adjustable stroke cylinder,to avoid collision damage between upper and lower welding wheel.
5. There are two types of Welding Power Source:Medium Frequency inverter DC or AC
6. Widely used in hardware, appliances, automotive, manufacturing pots, can, fuel tank, tank producing and other metal manufacturing and processing industries.
主要技术参数 Main Technical Parameters:
|
项目
Item Model |
额定 Rated Capacity |
额定初 Rated Primary Voltage |
额定 Rated Frequency |
最大短 Current |
电极 |
焊接 |
电极 |
电动机 Source |
电动机 |
冷却 |
重量Weight |
|
KVA |
V |
Hz |
A |
mm |
M/min |
KN |
V |
W |
L/min |
Kg |
|
|
TFN-50 |
50 |
380 |
50/60 |
15000 |
50 |
0.6-2 |
2.5 |
3-380V |
90 |
30 |
500 |
|
TFN-75 |
75 |
380 |
50/60 |
18000 |
50 |
0.6-2 |
3.9 |
3-380V |
90 |
30 |
650 |
|
TFN-100 |
100 |
380 |
50/60 |
20000 |
50 |
0.6-2 |
4.7 |
3-380V |
150 |
30 |
880 |
|
TFN-150 |
150 |
380 |
50/60 |
26000 |
50 |
0.6-2 |
6.1 |
3-380V |
150 |
40 |
1050 |
|
TFN-200 |
200 |
380 |
50/60 |
31000 |
50 |
0.6-2 |
6.1 |
3-380V |
150 |
40 |
1250 |
