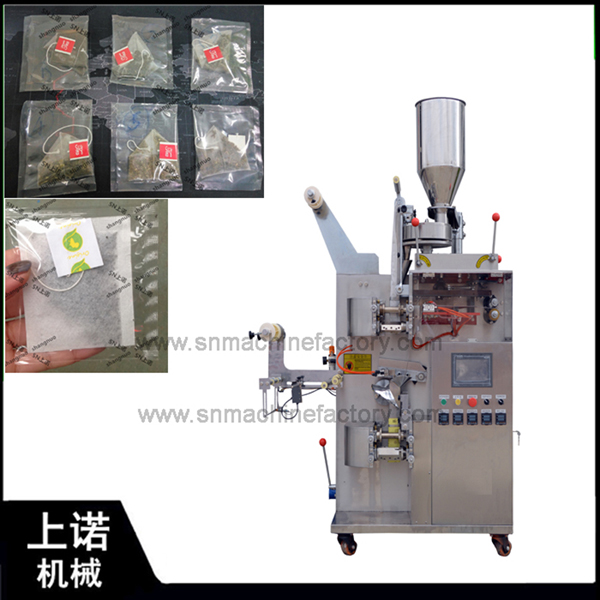

全自动袋泡茶包装机
简介：本机用于包装茶叶、中草药、咖啡等冲泡产品的内外袋一次性包装，内袋为食品级过滤纸，与棉线、标签自动粘合在一起，外袋由可热封的复合膜制成。
Application: This machine use for packing tea,Chinese herbs,coffee etc.,one-time complete inner and outer bag packing,inner bag is food grade filter paper,which is automatically boned with the cotton thread and the label,the outer bag is made of a heat-sealable composite film.
|
型号/Model |
SN-180C |
|
包装速度/Packing speed |
20-60袋/分bags/min |
|
包装重量/Packing weight |
1-15g(根据物料而定/depends on product) |
|
内袋尺寸/Inner bag size |
宽Width 40-80mm,长Length 50-70mm |
|
外袋尺寸/Outer bag size |
宽Width 60-90mm,长Length 70-120mm |
|
外袋膜宽/Outer bag film width |
≤180mm |
|
标签展开尺寸/Tag unfolding size |
宽Width 40-50mm,长Length 20-25mm |
|
线长/Thread length |
155mm |
|
包装精度/Packing accuracy |
≤±1%(根据物料而定/depends on product) |
|
耗气量/Air consumption |
0.8Mpa,0.3m3/min |
|
功率/Power |
3.7KW |
|
电源/Power supply |
1Ph.220V,50/60Hz |
|
封口类型/Seal type |
（3/4边封）3/4 sides seal |
|
净重/Net weight |
450kgs |
|
机器尺寸/Machine dimension |
L1200*W900*H1900mm |
