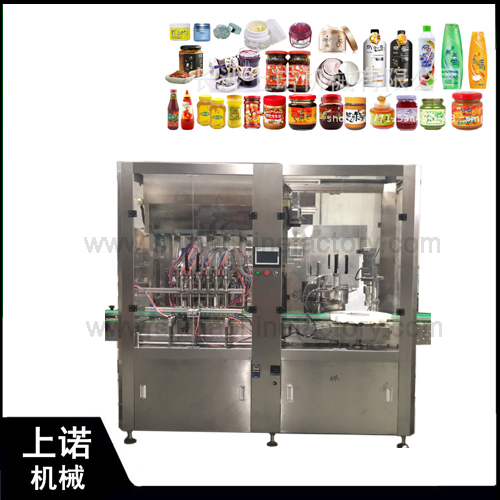

产品名称：SN-JZ4/6/8全自动酱体/膏体灌装旋/轧盖机
简介：适用于各种不含颗粒或含小颗粒的半流体如辣椒酱、豆瓣酱、番茄酱、花生酱、果酱、蜂蜜、酱料、虾酱类的灌装、也可灌装各种液体、粘稠体（如：洗发水沐浴露、牙膏、面霜乳液、酒精凝胶、芦荟胶、洗洁精）等的灌装旋（轧）盖，进行全自动灌装、上盖，旋/轧盖，采用直线式输送灌装,转盘内上盖旋/轧盖。PLC控制触摸屏操作界面，具有缺瓶不灌，无瓶不上盖等功能，自动化程度高，灌装不漏液，该机设计合理,操作方便。
Application: suitable for filling semi-liquid without or with small particles, such as sweet chili sauce, beef paste, bean sauce, mushroom sauce, tomato sauce, peanut butter, jam, honey, sauce, shrimp paste, also can work for various liquid and viscous liquid products(such as shampoo and body wash, toothpaste, face cream, alcohol gel, aloe vera gel, dishwashing liquid),filling and capping, the machine is full automatic filling, cover, screw/roll cap, adopt linear conveying filling, screw/roll cap in rotary plate PLC control touch screen operation interface, with lack of bottle no filling, no bottle plugging, no cap and other functions, high degree of automation, filling without leakage, the machine design reasonable, easy to operate.
技术参数/Technical parameter:
|
型号/Model |
SN-JZ4 |
SN-JZ6 |
SN-JZ8 (可定制10、12头灌装) |
|
灌装头数/Filing head number |
4 |
6 |
8 |
|
旋盖头数/Capping head number |
1 |
1 |
2 |
|
灌装量/Filling volume |
30-500ml（也可以定制500-1000ml） |
||
|
生产能力/Capacity |
10-40 bottles/min |
20-60 bottles/min |
30-80 bottles/min |
|
电源/Power supply |
1 Ph. AC220V, 50/60Hz |
||
|
总功率/Total power |
1.6 KW |
1.9 KW |
2 .5KW |
|
净重/Net weight |
600kg |
650kg |
750kg |
