产品名称：SN-PZ2/4/8全自动喷雾/滴管瓶 液体灌装旋/轧盖机
简介：该机主要用于各类30-1000ml喷雾瓶或者滴管瓶的水剂液体灌装旋（轧）盖，如：消毒液、消炎药剂喷雾、花露水、香水、精油、臭氧油、玻尿酸等各类水剂液体。进行全自动灌装、上喷头/滴管，旋/轧喷头/滴管，采用直线式输送,直线输送带灌装/转盘内进行灌装，转盘内进行上喷头/滴管，再旋/轧喷头/滴管。PLC控制触摸屏操作界面，具有缺瓶不灌，无瓶不上盖等功能，自动化程度高，灌装不漏液，该机设计合理,操作方便。
Application: The machine is mainly used for various types of 30-1000ml spray bottles or dropper bottles, such as: disinfectant, anti-inflammatory spray, toilet water, perfume, essential oil, ozone oil, hyaluronic acid, etc. Full automatic filling, upper nozzle / dropper, rotary / rolling nozzle / dropper, linear conveying, linear conveyor belt filling / turntable filling, upper nozzle / dropper in turntable, and then rotary / rolling nozzle / dropper. PLC control touch screen operation interface, with no bottle filling, no bottle cover and other functions, high degree of automation, filling no leakage, the machine design is reasonable, easy to operate.

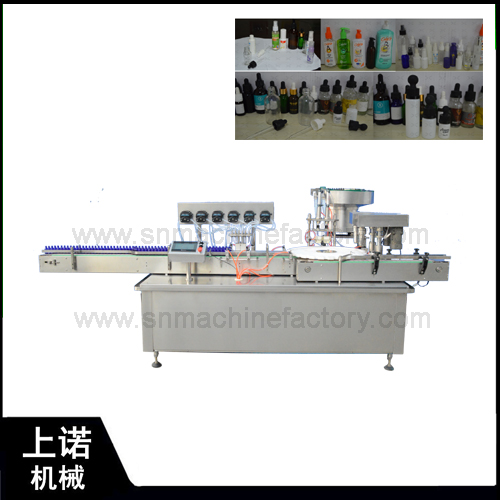

Machine name: SN-PZ4/6/8 Automatic Automatic Spray Filling and Capping Machine
技术参数/jisTechnical parameter:
|
型号/Model |
SN-PZ2 |
SN-PZ4 |
SN-PZ8 (可定制10、12头灌装) |
|
灌装头数/Filing head number |
1 |
4 |
8 |
|
扎盖头数/Capping head number |
1 |
1 |
2 |
|
灌装量/Filling volume |
30-500ml（也可以定制500-1000ml） |
||
|
生产能力/Capacity |
10-35 bottles/min |
25-45 bottles/min |
50-90 bottles/min |
|
电源/Power supply |
1 Ph. AC220V, 50/60Hz |
||
|
总功率/Total power |
1.2 KW |
1.5 KW |
2KW |
|
净重/Net weight |
500kg |
550kg |
650kg |
