简介：该机主要适用于100毫升以内滴眼液、指甲油、眼线液、精油等产品的自动灌装、加塞和旋盖。进行全自动灌装、加塞/加走珠/指甲油毛刷，上盖旋/轧盖，采用直线式输送,直线输送带上/转盘内进行滚珠，转盘内上塞上盖旋/轧盖。PLC控制触摸屏操作界面，具有缺瓶不灌，无瓶不上塞不上盖等功能，自动化程度高，灌装不漏液，该机设计合理,操作方便。

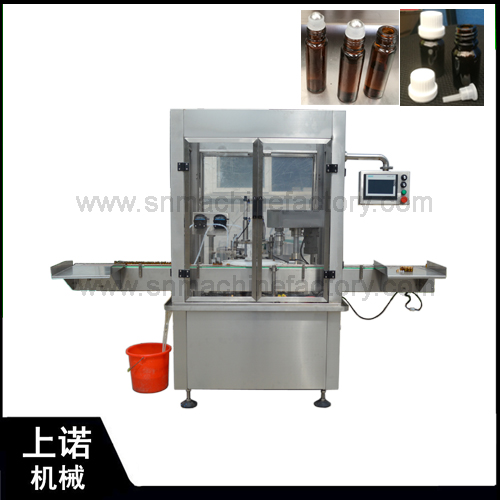

Machine name: SN-YS2/4/8 Automatic Liquid Filling and Capping Machine
Application: This machine is mainly suitable for automatic filling, plugging in and screw capping of electronic cigarette liquid, eye drops, nail polish, eye shadow, essential oil, with filling volume less then 100ml. It’s full automatic filling, plug,add remove beads/nail brush, cover screw/cap rolling, adopt linear conveying, linear conveyor belt/ball rolling in the rotary plate, cover screw/cap rolling in the rotary plate.PLC control touch screen operation interface, with lack of bottle no filling, no bottle plugging, no cap and other functions, high degree of automation, filling without leakage, the machine design reasonable, easy to operate.
技术参数/jisTechnical parameter:
|
型号/Model |
SN-YS2 |
SN-YS4 |
SN-YS8 (可定制10、12头灌装) |
|
灌装头数/Filing head number |
2 |
4 |
8 |
|
扎盖头数/Capping head number |
1 |
2 |
2 |
|
灌装量/Filling volume |
1-50ml（也可以定制50-100ml） |
||
|
生产能力/Capacity |
20-40 bottles/min |
40-80 bottles/min |
60-80 bottles/min |
|
电源/Power supply |
1 Ph. AC220V, 50/60Hz |
||
|
总功率/Total power |
1.2 KW |
1.5 KW |
2 KW |
|
净重/Net weight |
500kg |
600kg |
650kg |
