简介：该机主要用于各类30-1000ml水剂液体的的灌装旋（轧）盖，如：糖浆酵素口服液、酒水饮料、酱醋油、液体肥料、精油、爽肤保湿水、墨水、消毒液、注射液、医用药剂、工业酒精以及各类医用液体。进行全自动灌装、上盖，旋/轧盖，采用直线式输送灌装,转盘内上盖旋/轧盖。PLC控制触摸屏操作界面，具有缺瓶不灌，无瓶不上盖等功能，自动化程度高，灌装不漏液，该机设计合理,操作方便。
Application:This machine is mainly used for filling and rolling lids of 30-1000ml aqua liquid,such as: syrup enzyme oral liquid, alcoholic beverage, soy sauce and vinegar oil, cod liver oil liquid calcium health products, liquid fertilizer, essential oil, ink, disinfectant, injection, medical agent, industrial alcohol and all kinds of medical liquid. It’s full automatic filling, cover cap, screw/roll cap, adopt linear conveying filling, screw/roll cap in rotary plate. PLC control touch screen operation interface, with no bottle filling, no bottle cover and other functions, high degree of automation, filling no leakage, the machine design is reasonable, easy to operate.

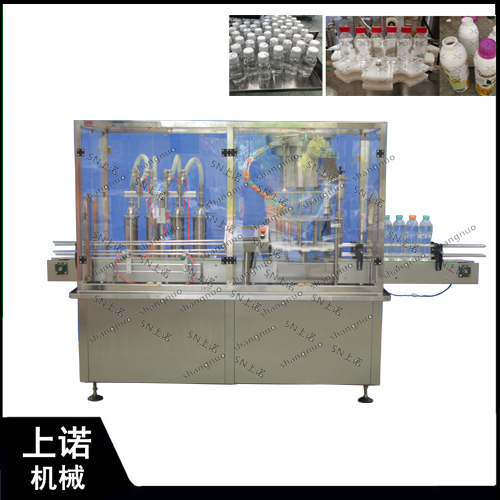

Machine name: SN-YZ4/6/8 Automatic Liquid Filling and Capping Machine
技术参数/jisTechnical parameter:
|
型号/Model |
SN-YZ4 |
SN-YZ6 |
SN-YZ8 (可定制10、12头灌装) |
|
灌装头数/Filing head number |
4 |
6 |
8 |
|
扎盖头数/Capping head number |
1 |
1 |
2 |
|
灌装量/Filling volume |
30-500ml（也可以定制500-1000ml） |
||
|
生产能力/Capacity |
10-50瓶/分 |
20-70瓶/分 |
35-100 bottles/min |
|
电源/Power supply |
1 Ph. AC220V, 50/60Hz |
||
|
总功率/Total power |
1.6 KW |
1.6 KW |
2 KW |
|
净重/Net weight |
140kg |
500kg |
650kg |
