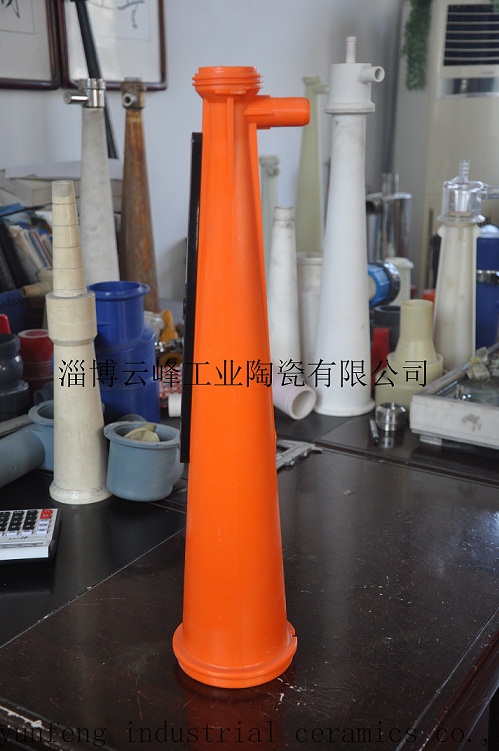

云峰YFC133-F平列式 山东厂家 加工定制
700平列式
双向除渣器是在广泛吸收国内外先进技术的基础上开发研制而成的新型高效除渣器，可广泛用于各种纸浆中对细小重质残渣的清理与分离，是多种制浆设备配套和技术改造中不可缺少的首选除渣装置之一，特别适用于纸机流送系统。除渣器采用模块化的结构设计，平列式安装，垂直向上组合扩展，其结构简洁紧凑，可根据用户对产量需求的不同，组合而成多种组数。
主要技术参数
700 the quiet type
700 The Compound bi Cleaner is developed
on the basis of a wide range of absorption of foreign advanced technology
developed from the new high efficiency Cleaner can be widely used in various
pulp cleaning and separation of fine heavy residue is more one of the
preferred cleaning plant species pulping equipment and technological
innovation indispensable, especially for paper machine approach flow system.
Cleaner modular design, is flown alongside the installation, a combination of
vertical upward extension, its structure is simple and compact, a variety of
different user groups according to the number of output demand combination.
单支通过量： 780L/min
进浆浓度： O.5-0.9％
进浆压力： 0.2-O.26MPa
良浆压力：
0.04-O.06MPa
单段体积排渣率：8-12％(相对进浆流量)
浆料温度要求： 不大于60
The main technical parameters Zibo yunfeng industrial ceramics co., LTD
Single by volume: 780L / min
Into the plasma concentration: O.5-0.9%
Into the plasma pressure: 0.2-O.26MPa
Good slurry pressure: 0.04-O.06MPa
Single-stage volume slagging rate: 8-12% (relative feed slurry flow rate)
Slurry temperature requirements: no more than 60
