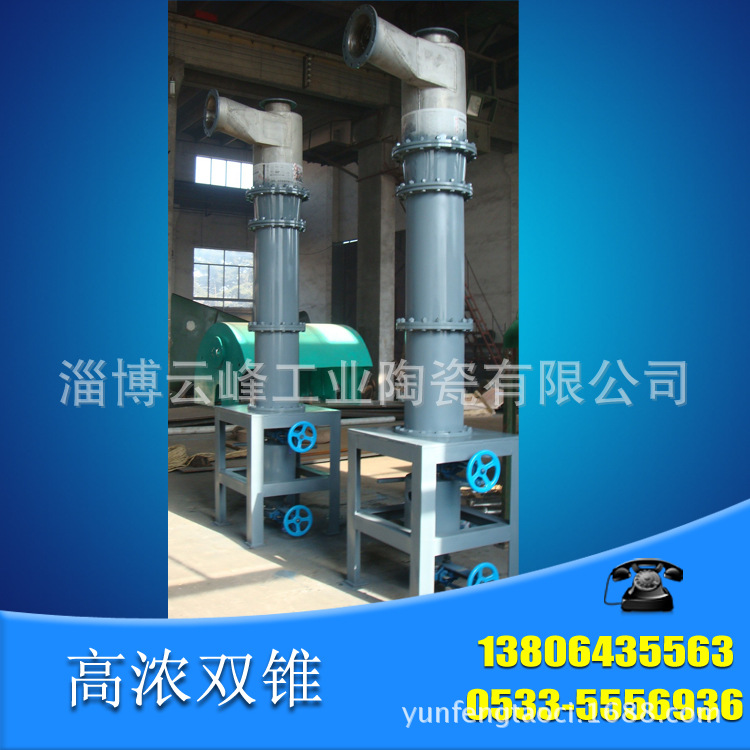

双锥体高浓除渣器是纸浆净化先进设备，尤其是净化废纸纸浆效果更佳，是废纸再生利用不可缺少的关键设备之一。它利用纤维与杂质比重不同，利用离心原理使重杂质从纸浆中分离出来，达到净化纸浆的目的。该设备使用面广，既可用于高浓度纸浆的粗选净化．也可用于纸机前，对低浓度纸浆进行精选净化。
该除渣器结构简单，占地面积小，生产能力大，自动化可调试排渣操作简单．不易堵塞排渣口，净化效率高，浆料仅一次性通过除渣器，不再需要尾浆处理设备，纤维流失小。锥体耐磨，使用寿命长：没有传动，无需较多维护，有全自动和手动两种形式。
技术参数
|
型号功能 |
FTG1 |
FTG2 |
FTG3 |
FTG4 |
FTG5 |
FTG6 |
FTG7 |
FTG8 |
FTG9 |
FTG10 |
|
|
粗选 |
压差MPa |
0.02-0.08 |
0.02-0.08 |
0.02-0.08 |
0.02-0.08 |
0.03-0.09 |
0.03-0.09 |
0.03-0.12 |
0.03-0.12 |
0.03-0.12 |
0.04-0.13 |
|
流量m3/Min |
0.25-0.55 |
0.5-0.95 |
0.75-1.60 |
1.0-3.0 |
2.0-3.5 |
3.5-5.0 |
5.0-6.0 |
6.0-7.5 |
7.5-10 |
10-11.5 |
|
|
能力t/d |
15-30 |
29-55 |
43-100 |
57-130 |
100-180 |
140-220 |
180-250 |
220-320 |
300-450 |
400-550 |
|
product
deSCRJPTion:
A double cone high density cleaner pulp is advanced purification equipment,
especially in the purification of waste paper pulp better, it is one of the key
equipment of waste paper recycling indispensable. It uses different fibers and
the proportion of impurities, so that the principle of centrifugal separation
of heavy impurities from the pulp out to purify the pulp purposes. The device
using a wide, both for the high consistency pulp roughing purification. Before
the machine can also be used for low consistency pulp cull purification.
The Cleaner is simple, small footprint, large capacity, automation can debug
simple slagging operation. Clogging tap outlet, clean and efficient, one-time
only through Cleaner slurry, slurry handling equipment is no longer required
tail, small fiber loss. Cone wear and long life: no drive, no more maintenance,
there are two types of automatic and manual.
Technical Parameters
|
Model Function |
FTG1 |
FTG2 |
FTG3 |
FTG4 |
FTG5 |
FTG6 |
FTG7 |
FTG8 |
FTG9 |
FTG10 |
|
|
roughing |
pressure MPa |
0.02-0.08 |
0.02-0.08 |
0.02-0.08 |
0.02-0.08 |
0.03-0.09 |
0.03-0.09 |
0.03-0.12 |
0.03-0.12 |
0.03-0.12 |
0.04-0.13 |
|
Flow m3/Min |
0.25-0.55 |
0.5-0.95 |
0.75-1.60 |
1.0-3.0 |
2.0-3.5 |
3.5-5.0 |
5.0-6.0 |
6.0-7.5 |
7.5-10 |
10-11.5 |
|
|
Processing capacity t/d |
15-30 |
29-55 |
43-100 |
57-130 |
100-180 |
140-220 |
180-250 |
220-320 |
300-450 |
400-550 |
|
