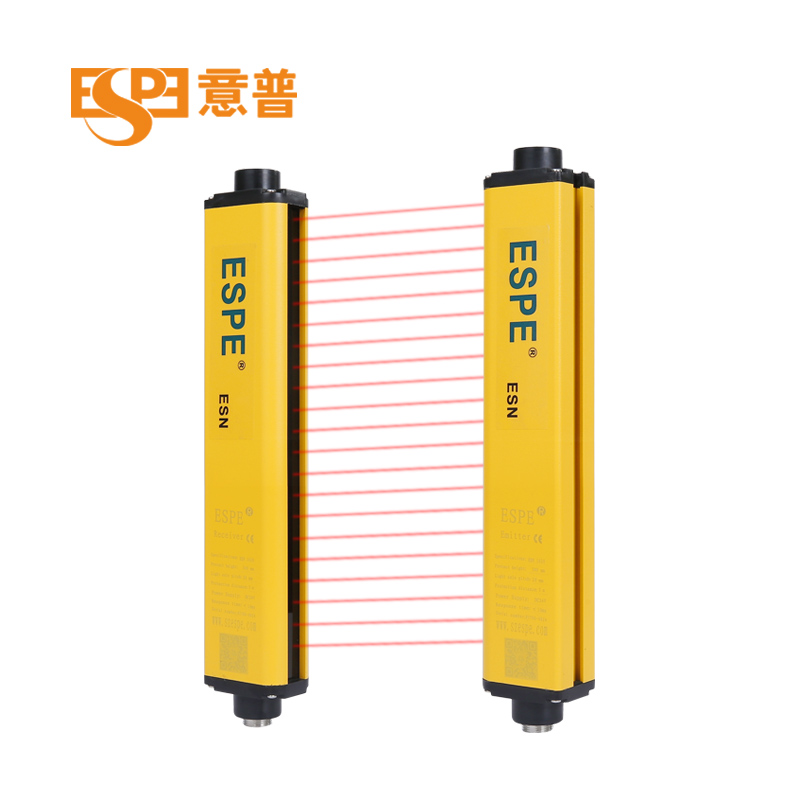

ESN0620安全光栅，意普兴安全光栅，ESPE-ESN系列，意普兴厂家订购ESN系列安全光栅，次系列常用型号为：ESN0620/ESN0820/ESN1020 意普兴总部市场部李经理：13632797506 0755-27972227-814
行业内标准起草人，安全光栅权威资质认证齐全
|
深圳市龙华新区观澜街道大布巷工业区
Big lane industrial area ， GuanLan Street,， Longhua area ,Shenzhen city ,Guangdong Province ,China
Tel:0755-27972227-814 Fax:0755-86111092
◆产品性能特点
Product performance characteristics
★ 全程自检，抗震性强、性能稳定。
★ 高分辨力，可保护手指安装方式简便多样。
★ 光轴对准容易，抗光、电磁干扰强。
★ 低功耗设计，响应时间短，可靠性高。
★ Self-inspection in whole process,
excellent vibration resistance and
performance stability
★ High resolution,workable to protect
finger,with diversified installation
forms
★ Easy to align with optical axis,strong
to fight against optical or electromagnetic
interference
★ Low power consumption design,short
|
response time and high reliability
|
||||||
 |
||||||
|
|
||||||
◆ ESN系列选型表 ESN Series Selecion Table
|
光轴间距（5mm)/beam pitch5mm |
|
光轴间距（10mm)/beam pitch10mm |
||||||
|
光束数量（n） |
保护高度 protection height |
外壳高度 Shell height |
规格型号 specifications and models |
光束数量（n）beams |
保护高度 protection height |
外壳高度 Shell height |
规格型号 specifications and models |
|
|
16 |
75 |
170 |
ESN1605 |
8 |
70 |
130 |
ESN0810 |
|
|
24 |
115 |
210 |
ESN2405 |
12 |
110 |
195 |
ESN1210 |
|
|
32 |
155 |
250 |
ESN3205 |
16 |
150 |
235 |
ESN1610 |
|
|
40 |
195 |
290 |
ESN4005 |
20 |
190 |
275 |
ESN2010 |
|
|
48 |
235 |
330 |
ESN4805 |
24 |
230 |
315 |
ESN2410 |
|
|
56 |
275 |
370 |
ESN5605 |
28 |
270 |
355 |
ESN2810 |
|
|
64 |
315 |
410 |
ESN6405 |
32 |
310 |
395 |
ESN3210 |
|
|
72 |
355 |
450 |
ESN7205 |
36 |
350 |
435 |
ESN3610 |
|
|
80 |
395 |
490 |
ESN8005 |
40 |
390 |
475 |
ESN4010 |
|
|
光轴间距（20mm)/beam pitch20mm |
|
光轴间距（40mm)/beam pitch40mm |
||||||
|
光束数量（n） beams |
保护高度 protection height |
外壳高度 Shell height |
规格型号 specifications and models |
光束数量（n） |
保护高度 protection height |
外壳高度 Shell height |
规格型号 specifications and models |
|
|
4 |
60 |
120 |
ESN0420 |
4 |
100 |
195 |
ESN0440 |
|
|
6 |
100 |
195 |
ESN0620 |
6 |
180 |
275 |
ESN0640 |
|
|
8 |
140 |
235 |
ESN0820 |
8 |
260 |
355 |
ESN0840 |
|
|
10 |
180 |
275 |
ESN1020 |
10 |
340 |
435 |
ESN1040 |
|
|
12 |
220 |
315 |
ESN1220 |
12 |
420 |
515 |
ESN1240 |
|
|
14 |
260 |
355 |
ESN1420 |
14 |
500 |
595 |
ESN1440 |
|
|
16 |
300 |
395 |
ESN1620 |
16 |
580 |
675 |
ESN1640 |
|
|
18 |
340 |
435 |
ESN1820 |
18 |
660 |
755 |
ESN1840 |
|
|
20 |
380 |
475 |
ESN2020 |
20 |
740 |
835 |
ESN2040 |
|
◆ 技术参数 Technical parameters
|
外观尺寸 External dimension |
|
50mm*35.5mm |
|
检测距离 Detecting distance |
0~3000mm(特殊长度可定做） |
|
|
光轴数 Beams |
4~160（其他可定做） |
|
|
分辨率 Resolution |
10mm、15mm、25mm、45mm |
|
|
光轴间距 Gap of optical axis |
5mm、10mm、20mm、40mm |
|
|
供电电压 Voltage of power supply |
DC24V±20% |
|
|
功率 Power |
5W |
|
|
响应时间 Response time |
<10ms |
|
|
输出类型 Output type |
NPN |
|
|
输出电流 Output current |
≤200mA |
|
|
工作环境湿度 Operating environmental temperature |
-10~55℃ |
◆ NPN接线图/NPN wiring diagram
工作电源：DC24V≥1500mA
工作状态：通光状态时发射器与接收器两边都是亮绿灯，挡光状态时接收器一边亮红灯。
输出状态：通光时NPN信号线输出OV，最大驱动电流≤200mA。挡光时NPN信号线无输出，为悬空。
接线方法：
1、 发射器棕色线VCC与接收器棕色线VCC相接，再接电源负极+24DC.+.
2、 发射器黑色线GND与接收器黑色线GND相连，再接电源负极OV.
3、 发射器灰色线CP与接收器灰色线CP相连。
4、 接收器蓝色线NPN输出信号为OV.接继电器负极或者接PLC端口。
Working power supply:DC 24V≥1500mA
Working status:On the state of passing light,both sides of the transmitter and receiver are green light,when the light is blocked,red light is on at the receiver side.
Output state:When the light is passed,the NPN signal line output OV,the PNP signal line outputs 24V.The maximum drive current≤200mA。When light is blocked,both NPN and PNP signal line give no output,which is the floating state.
Connection method:
1. Connect the brown line VCC of the transmitter with the brown line VCC of the receiver,then connect with power supply +24DC.
2. Connect the black line GND of the transmitter with the black line GND of the receiver,then connect with the cathode of the power supply OV.
3. Connect the grey line CP of the transmitter with the grey line CP of the receiver.
4. The output signal of the blue line of the receiver NPN is OV.Connect with the cathode of the relay or the PLC port.
