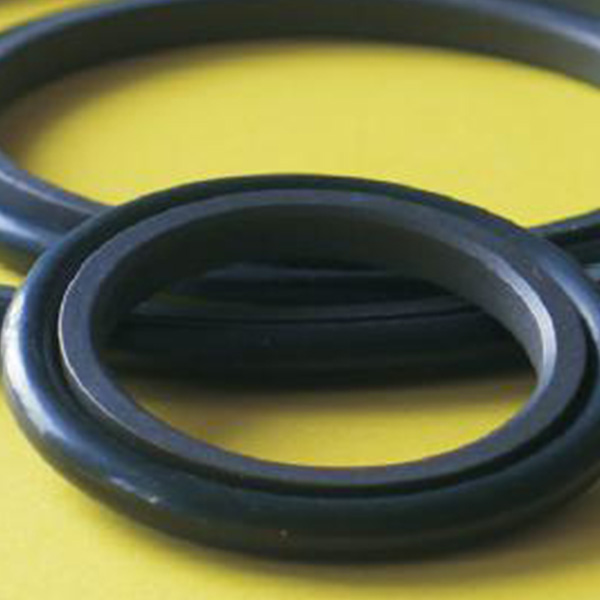

工况条件
| 速度 | 压力范围 | 温度范围 | 介质 | 标准材料 |
| 15 m/s | 0-35 Mpa | -30X> +200X： (取决于0型圈材质） | 通用石油基液压油、水乙二醇 液压油，油-水乳化型液压油 | PTFE、NBR、 FKM |
安装尺寸
| 轴径 | 沟槽直径 | 沟槽宽度 | 高度 | 最大径向间隙Smax | o形圈截面 | ||
| dh9 | DH9 | L+0.2 | H | 10 Mpa | 20 Mpa | 40 Mpa | d2 |
| 12-20.9 | d+6 | 3.2 | 3 | 0.4 | 0.25 | 0.15 | 2.4 |
| 21-45.9 | d+9 | 4 | 3.8 | 0.4 | 0.25 | 0.2 | 3.5 |
| 46-145.9 | d+15 | 6.5 | 6.3 | 0.5 | 0.35 | 0.25 | 5.7 |
| 146-400.9 | d+20 | 10 | 9.8 | 0.7 | 0.5 | 0.3 | 8.4 |
规格表
| 订货号 | 轴径 | 沟槽直径 | 沟槽宽度 |
| dh9 | DH9 | L+0.2 | |
| SPN0 0120 | 12 | 18 | 3.2 |
| SPN0 0140 | 14 | 20 | 3.2 |
| SPN0 0160 | 16 | 22 | 3.2 |
| SPN00180 | 18 | 24 | 3.2 |
| SPN0 0200 | 20 | 26 | 3.2 |
| SPN0 0220 | 22 | 31 | 4 |
| SPN0 0250 | 25 | 34 | 4 |
| SPN0 0280 | 28 | 37 | 4 |
| SPN0 0300 | 30 | 39 | 4 |
| SPN0 0320 | 32 | 41 | 4 |
| SPN0 0360 | 36 | 45 | 4 |
| SPN0 0400 | 40 | 49 | 4 |
| SPN0 0450 | 45 | 54 | 4 |
| SPN0 0500 | 50 | 65 | 6.5 |
| SPN0 0560 | 56 | 71 | 6.5 |
| SPN0 0600 | 60 | 75 | 6.5 |
| SPN0 0630 | 63 | 78 | 6.5 |
| SPN0 0700 | 70 | 85 | 6.5 |
| SPN0 0750 | 75 | 90 | 6.5 |
| SPN0 0800 | 80 | 95 | 6.5 |
| SPN0 0850 | 85 | 100 | 6.5 |
| SPN0 0900 | 90 | 105 | 6.5 |
| SPN0 0950 | 95 | 110 | 6.5 |
| SPN01000 | 100 | 115 | 6.5 |
| SPN01050 | 105 | 120 | 6.5 |
| SPN01100 | 110 | 125 | 6.5 |
| SPN01150 | 115 | 130 | 6.5 |
| SPN01200 | 120 | 135 | 6.5 |
| SPN01250 | 125 | 140 | 6.5 |
| SPN01300 | 130 | 145 | 6.5 |
| SPNO 1350 | 135 | 150 | 6.5 |
| SPNO 1400 | 140 | 155 | 6.5 |
| SPNO 1450 | 145 | 160 | 6.5 |
| SPNO 1500 | 150 | 170 | 10 |
| SPNO 1600 | 160 | 180 | 10 |
| SPNO 1700 | 170 | 190 | 10 |
| SPNO 1800 | 180 | 200 | 10 |
| SPNO 1900 | 190 | 210 | 10 |
| SPNO 2000 | 200 | 220 | 10 |
| SPNO 2100 | 210 | 230 | 10 |
| SPNO 2200 | 220 | 240 | 10 |
| SPNO 2240 | 224 | 244 | 10 |
| SPNO 2300 | 230 | 250 | 10 |
| SPNO 2400 | 240 | 260 | 10 |
| SPNO 2500 | 250 | 270 | 10 |
| SPNO 2600 | 260 | 280 | 10 |
| SPNO 2700 | 270 | 290 | 10 |
| SPNO 2800 | 280 | 300 | 10 |
| SPNO 2900 | 290 | 310 | 10 |
| SPNO 3000 | 300 | 320 | 10 |
| SPNO 3100 | 310 | 330 | 10 |
| SPNO 3200 | 320 | 340 | 10 |
| SPNO 3300 | 330 | 350 | 10 |
| SPNO 3400 | 340 | 360 | 10 |
| SPNO 3500 | 350 | 370 | 10 |
| SPNO 3600 | 360 | 380 | 10 |
| SPNO 3700 | 370 | 390 | 10 |
| SPNO 3800 | 380 | 400 | 10 |
| SPNO 4000 | 400 | 420 | 10 |
