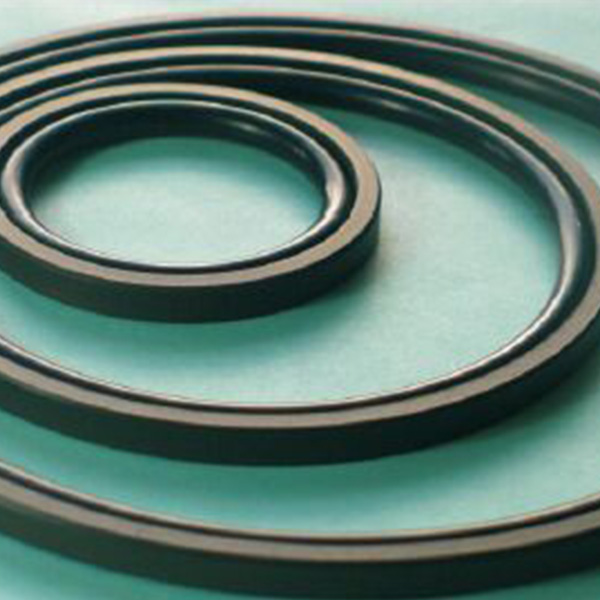

孔用方型圈（格莱圈）GSP
工况条件
|
速度 |
压力范围 |
温度范围 |
介质 |
标准材料 |
|
15m/s |
0-60 Mpa |
负3CTC +20CTC（取决于0形圈材质） |
石油基液压油、难燃液压液、环保安全液压液（生物油〉、水和其它 |
PTFE、NBR、FKM |
| 缸径 | 沟槽直径 | 沟槽宽度 | 圆角 | 径向间隙S max | 0形圈截面 | ||
| DH9 | d h9 | L+0.2 | r | 10 Mpa | 20 Mpa | 40 Mpa | d2 |
| 15-39.9 | D-8 | 3.2 | 0.6 | 0.4 | 0.25 | 0.15 | 2.62 |
| 40-79.9 | D-10 | 4.2 | 1 | 0.4 | 0.25 | 0.2 | 3.53 |
| 80-199.9 | D-15 | 6.8 | 1.3 | 0.5 | 0.3 | 0.2 | 5.33 |
| 200-300 | D-20 | 8.1 | 1.8 | 0.6 | 0.35 | 0.25 | 6.99 |
| 305-600 | D-25 | 9.5 | 2.5 | 0.7 | 0.5 | 0.3 | 8.4 |
| 订货号 | 缸径 | 沟径 | 沟權宽度 |
| DH9 | dh9 | L+0.2 | |
| GSP0180 | 18 | 10 | 3 2 |
| GSP0200 | 20 | 12 | 3.2 |
| GSP0220 | 22 | 14 | 3.2 |
| GSP0240 | 24 | 16 | 3.2 |
| 6SP0250 | 25 | 17 | 3.2 |
| GSP0260 | 26 | 18 | 3.2 |
| GSP0280 | 28 | 20 | 3.2 |
| GSP0300 | 30 | 22 | 3.2 |
| GSP0320 | 32 | 24 | 3.2 |
| GSP0350 | 35 | 27 | 3.2 |
| GSP0360 | 36 | 28 | 3.2 |
| GSP0400 | 40 | 30 | 4.2 |
| GSP0420 | 42 | 32 | 4.2 |
| GSP0450 | 45 | 35 | 4.2 |
| GSP0500 | 50 | 40 | 4.2 |
| GSP0550 | 55 | 45 | 4.2 |
| GSP0560 | 56 | 46 | 4.2 |
| GSP0600 | 60 | 50 | 4.2 |
| GSP0630 | 63 | 53 | 4.2 |
| GSP0630H | 63 | 48 | 6.8 |
| GSP0S50 | 65 | 55 | 4.2 |
| GSP0650H | 65 | 50 | 6.8 |
| GSP0700 | 70 | 60 | 4.2 |
| GSP0700H | 70 | 55 | 6.8 |
| GSP0750 | 75 | 65 | 4.2 |
| GSP0750H | 75 | 60 | 6.8 |
| GSP0800L | 80 | 70 | 4.2 |
| GSP0800 | 80 | 65 | 6.8 |
| GSP0850L | 85 | 75 | 4.2 |
| GSP0850 | 85 | 70 | 6.8 |
| GSP0900L | 90 | 80 | 4 |
| GSP0900 | 90 | 75 | 6 |
| GSP0950 | 95 | 80 | 6 |
| GSP1000 | 100 | 85 | 6 |
| GSP1100 | 110 | 95 | 6 |
| GSP1200 | 120 | 105 | 6 |
| GSP1250 | 125 | 110 | 6 |
| GSP1300 | 130 | 115 | 6 |
| GSP1350 | 135 | 120 | 6 |
| GSP1400 | 140 | 125 | 6 |
| GSP1500 | 150 | 135 | 6 |
| GSP1600 | 160 | 145 | 6 |
| GSP1700 | 170 | 155 | 6 |
| GSP1800 | 180 | 165 | 6 |
| GSP1900 | 190 | 175 | 6 |
| GSP2000 | 200 | 180 | 8 |
| GSP2100 | 210 | 190 | 8 |
| GSP2200 | 220 | 200 | 8 |
| 6SP2400 | 240 | 220 | 8 |
| GSP2500 | 250 | 230 | 8 |
| GSP2600 | 260 | 240 | 8 |
| GSP2700 | 270 | 250 | 8 |
| GSP2800 | 280 | 260 | 8 |
| GSP2900 | 290 | 270 | 8 |
| GSP3000 | 300 | 280 | 8 |
| GSP3100 | 310 | 285 | 9 |
| GSP3200 | 320 | 295 | 9 |
| GSP3300 | 330 | 305 | 9 |
| GSP3400 | 340 | 315 | 9 |
| GSP3500 | 350 | 325 | 9 |
