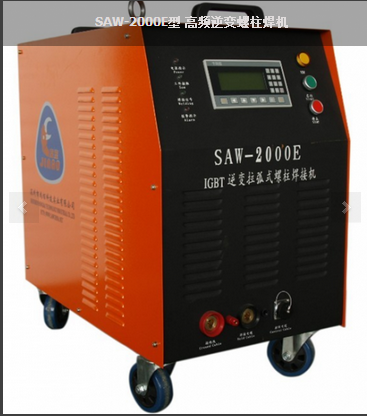

供应鸿栢金螯SAW-2000E型高频逆变螺柱焊机（栓钉焊机_鸿栢金螯

同等功率　目前世界上***轻便的栓钉植焊机

MOST ADVANCE D S TUD WE LDING MACHINE UNDER THE SAME FUNCTION IN THE WOLD

同等功能　目前世界上进的栓钉植焊机

MOST PORTABLE STUD WE LDING MACHINE UNDE R THE SAME POWER IN THE WOLD

SAW-E系列螺柱焊接机(栓钉焊机)，可广泛应用于现代建筑金属预埋件中的栓钉焊植、大型车辆、船舶建造过程中的螺钉焊植和其它机械制造过程中的螺钉焊植。该设备是钢构工程、桥梁工程和

大型车船制造厂家必备的焊接机械。该设备采用国际上先进的IGBT逆变节能技术，微处理器控制，与传统该类设备相比，节电30%以上，大大降低了使用成本，机器重量不到100KG，工地现场移动十分方便。

该设备采用了目前世界上进的DSP数字控制技术，焊接电流和时间的调节更精确，焊接电流更稳定，焊接质量可靠。

在人机对话方面，该设备采用了八寸采用真彩LCD显示屏，中英文菜单，触摸屏操作，十分方便。

该设备主要有长、短周期拉弧式焊接电源、手动焊枪组成，并可与机器人对接，实现螺柱焊接自动化。

SAW-E series of stud welder can be widely used in structural steel engineering,

machine construction, shipbuilding, civil engineering, power plant and nuclear

power plant construction, apparatus engineering, reinforced pre-fabricated

concrete construction etc. The device is a necessary welding equipment for steel

engineering, bridge construction, large vehicle and ship building.

Two types of this stud welder are available, high frequency and power-frequency.

High frequency inverter stud welder applies advanced IGBT inverter

energy-saving technology, and comparing with power-frequency welder, the

weight less than 100 KG, and the energy used decreased by 30%. Using DSP

control technology, the modulation of welding current and welding time is more

accurate.

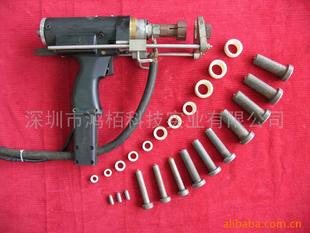

Consisting of power supply and welding gun, the welder can dock with robots

to realize fully automatic stud welding.

主机总体性能指标 OVERALL TECHNICAL DATA
输入电源 Power Supply Voltage (V)	3×380V	输出电流 Output Current (A)	In:100～2000A
引弧电流可调范围IP Arc initiation current	30~500A	焊接时间可调范围TW Welding time	10～1600ms
引弧时间可调范围IP Arc initiation time	15~500ms	电流允差 △I	△I：10A
允许网压波动范围 Voltage Fluctuation Range	△V：340V/420V	输出功率 Max Output Power	120KVA
每分钟可焊次数 Welding rate	n: 3～10
螺柱直径 Welding stud Range	Φ：10～24mm
配套能力 Feeding time	1个焊枪接口
重量 Weight	95KG
