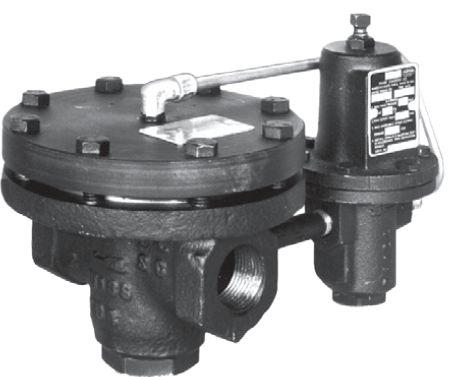

Type 92C Self-Powered Control Valve

Type 92C self-powered valve is a cost effective pressure reducing regulator used in steam service. This valve is available with a Type 6392 pilot or without a pilot for use as a pressure-loaded regulator. The pilot-operated version uses inlet pressure as the operating medium; no separate air supply is required. The pressure-loaded version is used where remote adjustment of the valve pressure setting is required.

Fisher 92C 是一种经济型的，铸铁或钢制的指挥器式调压器，适用于蒸汽，液体或热空气系统。



型号 ................................... 92C
连接尺寸........................... 1/2, 3/4, 1”
调压范围................ 5-250 psig (0.34-17.2 巴)
最大入口压力 ................. 300 psig (20.7巴)
操作方式......................... 指挥器作用式
阀体材料.....................铸铁、钢、不锈钢
最高承受温度 ....................650°F (343°C)


Body Size and End Connection Styles
Cast Iron: 1/2, 3/4, or 1 NPT

Steel or CF8M Stainless Steel: NPS 1/2, 3/4, or 1; NPT, CL150 RF, CL300 RF, or
   PN 16/25/40

Maximum Inlet Pressures
Cast Iron: 250 psig / 17,2 bar
Steel and Stainless Steel: 300 psig / 20,7 bar

Outlet Pressure Range
5 to 250 psig / 0,34 to 17,2 bar in four ranges

Pressure Registration
With Pilot: External
Without Pilot: Internal

Temperature Capabilities
Metal Diaphragm and Seat Cast Iron Body: 406°F / 208°C
Stainless Steel or Steel Body: 500°F / 260°C
Optional High-Temperature Steel or Stainless Steel Body: 650°F / 343°C

Approximate Weight
Cast Iron and Steel with Pilot: 20 Pounds / 9 kg
Cast Iron and Steel without Pilot: 16 Pounds / 7 kg
