Type EZR Relief Valve or Backpressure Regulator
Fisher Type EZR pilot-operated, pressure relief valve or backpressure regulator


Fisher Type EZR pilot-operated, pressure relief valve or backpressure regulator is typically used in city gate and district stations as a relief valve for overpressure protection, or in commercial and industrial applications as a backpressure regulator. Type EZR provides smooth, quiet operation, tight shutoff, and long life, even in dirty service. Its internally actuated metal plug eliminates disadvantages associated with boot-style relief valves and backpressure regulators. The specially engineered flow path deflects debris, protecting the seat from damage and erosion. Type EZR relief valve or backpressure regulator can be converted to a pressure reducing regulator simply by changing to a pressure reducing piloting system (see Bulletin 71.2:EZR).


产品型号： Fisher EZR / Fisher EZR-OSX
产品类别： Fisher EZR系列燃气调压器


Fisher EZR / EZR-OSX系列调压器特点：

-   指挥器式调压器，适用于天然气传输系统和各种工业、商业应用领域
-   压力设定简单、调压精确、关闭灵敏
-   一体化的EZR-OSX过压失压切断装置，确保下游管线安全
-   特殊设计的金属阀口结构和流体路径可减少阀座磨损，降低噪音
-   精确的调压特性
-   带有调压器行程指示器
-   高性能降噪声设计
-   多种监控方式可供选择
-   进口压力范围：最大72.4 bar

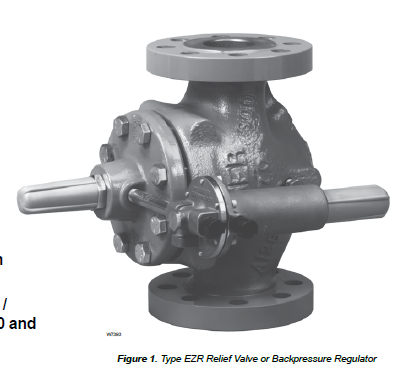

Type EZR Relief Valve or Backpressure Regulator

Available Configurations
Type EZR (Boot Style):  Pilot-operated pressure reducing regulator for low to
   high outlet pressure.
Type EZROSX: Type EZR with a Type OS2 slam-shut device for overpressure
   (OPSO) or overpressure and under pressure (OPSO/UPSO) protection


Body Sizes and End Connection Styles
Type EZR:
NPS 2 x 1, 2, 3, 4, and 6 / DN 50 x 25, 50, 80,100, and 150
   Main Valve Body Material: Cast iron
   End Connection Styles: NPT (NPS 2 x 1 and 2 only), CL125 FF, CL250 RF

NPS 1, 1-1/4 x 1, 2 x 1, 2, 3, 4, 6 x 4, 8 x 4, 6, 8 x 6, and 12 x 6 / DN 25, 32 x 25, 50 x 25, 50, 80, 100, 150 x 100, 200 x 100, 150, 200 x 150, and 300 x 150
   Main Valve Body Material: WCC Steel
   End Connection Styles: NPT or SWE (NPS 1, 2 x 1, and 2 / DN 25,
      50 x 25, and 50 only), CL150 RF, CL300 RF, CL600 RF or BWE

NPS 8 / DN 200
   Main Valve Body Material: LCC Steel
   End Connection Styles: CL150 RF, CL300 RF, CL600 RF

Type EZROSX:
NPS 1, 2 x 1, 2, 3, 4, and 6 / DN 25, 50 x 25, 50, 80, 100, and 150
   Main Valve Body Material: WCC Steel
   End Connection Styles: CL150 RF, CL300 RF, CL600 RF


Main Valve Pressure Ratings
Maximum Operating Inlet Pressure: 1050 psig / 72 bar
Maximum Operating Differential Pressure: 800 psid / 55 bar d
Maximum Emergency Inlet and Differential Pressure: 1050 psid / 72 bar d

Outlet Pressure Ranges
6-inches w.c. to 1000 psig / 15 mbar to 69.0 bar

Pressure Registration
External

Temperature Capabilities
-20 to 260°F / -29 to 127°C

Approximate Weights
Cast iron NPS 2 x 1 to 6 / DN 50 x 25 to 150: 50 to 225 Pounds / 23 to 102 kg
       depending on body size and end connection style



WCC or LCC Steel:
   NPS 1 to 8 / DN 25 to 200: 22 to 1590 Pounds / 10 to 721 kg depending on
      body size  and end connection style



Construction with Integral Slam shut:

   NPS 1 to 6 / DN 25 to 150, flanges end connection only: 44 to 537 Pounds
      / 20 to 244 kg depending on body size and flanged end connection style


POSTTTION Monitor Bracket (PMB) Specifications
Construction Materials:
   Bracket: 304 Stainless steel
   Hardware: 18-8 Stainless steel

Body Sizes and End Connection Styles
NPS 2, 3, 4, and 6 / DN 50, 80, 100, and 150: NPT (NPS 2 only), CL125B FF, CL250B RF
NPS 1, 2, 3, 4, 6, and 8 / DN 25, 50, 80, 100, 150 and 200: NPT or SWE ( NPS 1 and 2
   only), CL150 RF, CL300 RF, CL600 RF or BWE

Minimum Relief Set Pressure
20 psig / 1.4 bar

Maximum Relief (Inlet) Pressure
100 to 1050 psig / 6.9 to 72.4 bar

Pressure Registration
External through upstream control line

Temperature Capabilities
17E68 Nitrile (NBR): -20 to 150°F / -29 to 66°C
17E97 Nitrile (NBR): 0 to 150°F / -18 to 66°C
17E88 Fluorocarbon (FKM): 0 to 260°F / -18 to 127°C

Approximate Weights
Cast Iron: 22 to 225 Pounds / 10 to 102 kg depending on body size and end
   connection
WCC or LCC Steel: 22 to 790 Pounds / 10 to 358 kg depending on body size and
   end connection

-   出口压力范围：0.015-48 bar
-   最大流量：400000 Nm3/h
-   可在线维修，价格性能比极高
-   连接方式：1"-12" ANSI 125BFF/250BFF/150RF/150RF/300RF/600RF 法兰,BWE
美国FISHER品牌EZR/EZR-OSX系列灰色二级调压器
EZR/EZR-OSX型减压阀 调压阀美国FISHER费希尔EZR系列调压器瓦斯气体减压阀,瓦斯减压阀高压调压阀,天然气调压器，燃烧机稳压阀
基本参数：口径:DN50，最大进压72bar，出口压力范围：0.015-48 bar


一、美国FISHER费希尔EZR/EZR-OSX型调压器

-   指挥器式调压器，适用于天然气传输系统和各种工业、商业应用领域
-   压力设定简单、调压精确、关闭灵敏
-   一体化的EZR-OSX过压失压切断装置，确保下游管线安全
-   特殊设计的金属阀口结构和流体路径可减少阀座磨损，降低噪音
-   内置式过滤装置
-   精确的调压特性
-   带有调压器行程指示器
-   高性能降噪声设计
-   多种监控方式可供选择
-   进口压力范围：最大72.4 bar
-   出口压力范围：0.015-48 bar
-   最大流量：400000 Nm3/h
-   精度：±1%
-   可在线维修，价格性能比极高
-   连接方式：1"-12" ANSI 125BFF/250BFF/150RF/150RF/300RF/600RF
法兰,BWE
-   材料：铸铁 或 WCB 钢制阀体
-   温度：-29°～121℃
-
选项：变换指挥器，可改装成安全放散阀；可选配一体化过滤装置，防止杂质损害内部配件；配备Kixcel662型调压器电动执行器，实现远程调压

-   可用于天然气、液化石油气、空气等多种气体
 调压器相关词语：美国FISHER费希尔EZR/EZR-OSX 系列燃气调压阀 202H减压阀 稳压阀
调压器FISHER费希尔燃气减压阀 美国FISER燃气调压器 美国费希尔调压阀 液化气调压器 天然气调压阀 瓦斯减压阀
DN40大流量减压阀  DN50超压低压切断调压器
