供应圆簧抛丸强化机

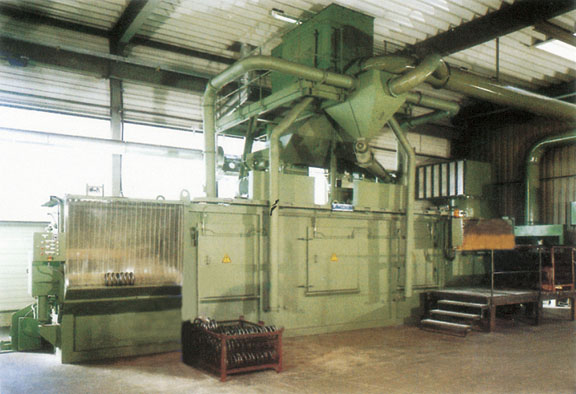

圆簧抛丸强化机
名  称                              齿轮抛丸强化机                齿轮抛丸强化机                              弹簧抛丸强化机
    Q265                                Q2615                                                  ES1422
清理工作最大尺mm        齿轮Ф1500x1700            齿轮Ф3000x1500                              直径50  -300
    内齿Ф400x  2000            内齿Ф400x  2500
    高度200-500                  高度200-500                                        长度≤700
回转台车直径mm                  Ф1500                              Ф3000                                                    -----
小活动转台直径mm              Ф500                              Ф1000                                                    -----
转台载重量kg                      5000                              15000                                                    -----
抛丸器功率KW                      3×18.5                              3×18.5                                                    30
移动抛丸器功率                    1×18.5                              1×18.5                                                  -----
抛丸量kg／min                      4×280                              4×280                                                    420
除尘器型号                          HR4-16                              HR4-32                                                JZC40
总通风量m3／h                    10000                                22000                                                  5940
总功率(不含除尘)KW        107.15                                119.3                                                  40.05
机器外型尺寸
(长x宽x高)mm    9350x  3750  x  8790                  12000X5250X  8750                                  8230x762X1752
