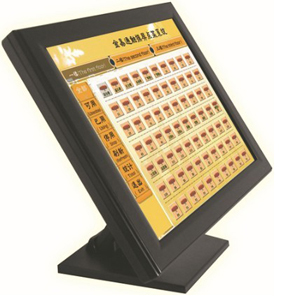

供应南京一鼎一触摸屏显示器
型号                                                                ST-170
名称                                                                17"  桌面式液晶触摸显示器
壳体颜色                                                        黑色
屏幕                                                                4:3    17"  液晶
最大分辨率                                                    1280X1024@60Hz
输入频率                                                        水平:30-80  kHz;  垂直:  60-75Hz
可触区域                                                        水平:  13.3"  (338  mm);垂直:  10.6"  (270  mm)
色数                                                                16.7  million
亮度                                                                LCD液晶:  300  cd/m2  (典型)
配触摸屏                                                        280  cd/m2  (典型)
像素                                                                0.264  x  0.264  mm
响应时间                                                        8  ms  (典型)
对比度                                                            500:1典型
可视角度                                                        水平  (左/右):  140°(70°  /70°  )
垂直  (上/下)                                                  130°(70°  /60°  )
背光源寿命                                                    50,000  小时  到1/2  亮度
视频格式                                                        VGA  或  DVI  可选
输入信号接口                                                Mini  D-Sub  15-Pin  VGA  type
控制按钮                                                        远程控制器，带1.2米长电缆
触摸原理                                                        表面声波（4线电阻，5线电阻，电容可选）
触摸屏接口                                                    RS232串口和USB  双接口
触摸反应时间                                                <15ms
安装孔位                                                        后背75  mm  &  100mm  VESA  孔安装，可拆卸底座
电源                                                                外部电源适配器供电:100-240V  AC,  50-60  Hz
功耗                                                                <50W
温度范围                                                        工作:  0°C  to  50°C;    存储:  -20°C  to  60°C
湿度范围                                                        工作:  10%-90%;    存储:  5%-90%,  无结露
外观尺寸                                                        L*W*T(405mm*338mm*65mm  )
重量                                                                5.7kg

ST-170桌面式触摸显示器，外形小巧，美观大方。人性化外观设计，底座底部特殊设计螺纹安装孔，既可悬挂显示器，也可保证显示器立于桌面更加稳固。专为桌面式和台式公共服务查询系统、POS系统等触摸应用环境设计，全塑料外壳，人体工学设计，结构紧凑，稳定可靠。内置串口和USB接口触摸屏任客户选择，使用极为方便灵活。可选表面声波屏、表面电容触摸屏或4/5线电阻触摸屏，极大丰富客户的选择，是一款防尘防水的桌面式触摸终端产品.
