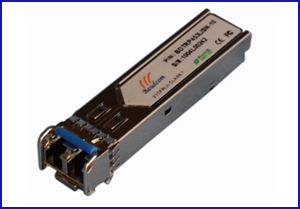

155M SFP 光模块
FEATURES:
l Up to 155Mb/s data links
l Hot-pluggable SFP footprint
l 1310nm Fabry-Perot laser transmitter
l Duplex LC connector
l Compliant with SFP MSA and SFF-8472
l Digital Diagnostic Monitoring(DDM):Internal Calibration or External Calibration
l Very low jitter
l Automatic Gain control function
l No Rate Select input required for
Fiber Channel 1x/2x Operation
l 20Km transmission on 9/125μm SMF
l Metal enclosure, for lower EMI
l Single 3.3V power supply
l Low power dissipation <700mW typical
l Class 1: FDA/IEC60825-1 Laser Security
APPLICATIONS:
l Fast Ethernet
l SDH/STM-1,SONET/OC-3
l Switch to Switch interface
l Switched backplane applications
l Router/Server interface
l Other optical transmission systems
DeSCRJPTion:
BDTRP113L1SD-20 Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA).The SFP transceiver supports dual data-rate of 155MGbps and from 20km transmission distance with SMF. They simultaneously comply with the standards IEEE Std 802.3 and IEEE 802.3u. The SFP module can be compatible with other brand switch devices like Cisco,Huawei etc.The SFP module has the function of AGC (Automatic Gain control).
Absolute Maximum Ratings
Parameter
Symbol
Min
Typ
Max
Unit
Ref.
Maximum Supply Voltage
Vcc
0.5
4.5
V
Storage Temperature
TS
-40
100
℃
Case Operating Temperature
TOP
-40
85
℃
Relative Humidity
RH
0
95
%
1
Electrical Characteristics (TOP = -40 to 85 ℃, VCC = 3.00 to 3.60 Volts)
Parameter
Symbol
Min
Typ
Max
Unit
Ref.
Supply Voltage
Vcc
3.00
3.60
V
Supply Current
Icc
200
300
mA
Transmitter
Input differential impedance
Rin
100
Ω
2
Single ended data input swing
Vin,pp
250
1200
mV
Transmit Disable Voltage
VD
Vcc – 1.3
Vcc
V
Transmit Enable Voltage
VEN
Vee
Vee+ 0.8
V
3
Transmit Disable Assert Time
10
us
Receiver
Single ended data output swing
Vout,pp
300
400
800
mV
4
Data output rise time
tr
100
175
ps
5
Data output fall time
tf
100
175
ps
5
LOS Fault
VLOS fault
Vcc – 0.5
VccHOST
V
6
LOS Normal
VLOS norm
Vee
Vee+0.5
V
6
Power Supply Rejection
PSR
100
mVpp
7
Deterministic Jitter Contribution
RX Δ DJ
51.7
ps
8
Total Jitter Contribution
RX Δ TJ
122.4
ps
Notes:
1. Non condensing.
2. AC coupled.
3. Or open circuit.
4. Into 100 ohm differential termination.
5. 20 – 80 %
6. LOS is LVTTL. Logic 0 indicates normal operation; logic 1 indicates no signal detected.
7. All transceiver specifications are compliant with a power supply sinusoidal modulation of 20 Hz to 1.5 MHz up to specified value applied through the power supply filtering network shown on page 23 of the Small Form-factor Pluggable (SFP) Transceiver MultiSource Agreement (MSA), September 14, 2000.
8. Measured with DJ-free data input signal. In actual application, output DJ will be the sum of input DJ andD??DJ.
Optical Characteristics (TOP = 0 to 70℃, VCC = 3.00 to 3.60 Volts)
Parameter
Symbol
Min
Typ
Max
Unit
Ref.
Transmitter
Output Opt. Power
POUT
-12
-5
dBm
1
Optical Wavelength
λ
1270
1310
1360
nm
2
Spectral Width
σ
3
nm
2
Optical Modulation Amplitude
OMA
174
μW
2,3
Optical Rise/Fall Time
tr/ tf
100
160
ps
4
RIN
-120
dB/Hz
Deterministic Jitter Contribution
TX Δ DJ
20
56.5
ps
5
Total Jitter Contribution
TX Δ TJ
70
119
ps
Optical Extinction Ratio
ER
10
dB
Receiver
Average Rx Sensitivity
RSENS1
-37
-34
dBm
6, 7
Overload Power
RxMAX
-3
dBm
Optical Center Wavelength
λC
1265
1600
nm
LOS De-Assert
LOSD
-35
dBm
LOS Assert
LOSA
-45
dBm
LOS Hysteresis
0.5
3
dB
Environmental Specifications
Parameter
Symbol
Min
Typ
Max
Units
Ref.
Case Operating Temperature
Top
0
70
℃
Storage Temperature
Tsto
-40
100
℃
Ordering information
BDTRP113L1SD-20
155M SFP Transceiver,dual fiber 20km transmission,1310nm,DDM
Request price
BDTRP113L1SD-40
155M SFP Transceiver,dual fiber 40km transmission,1310nm,DDM
Request price
BDTRP113L1SD-80
155M SFP Transceiver,dual fiber 80km transmission, 1550nm,DDM
Request price
