Features:
l Up to 1.25Gb/s bi-directional data links
l Hot-pluggable SFP footprint
l 1310/1550nm FP/DFB, SM Fiber
l Duplex LC connector
l Very low jitter
l Up to 100km on 9/125μm SMF
l Metal enclosure, for lower EMI
l Single 3.3V power supply
l Low power dissipation <700mW typical
Application:
DeSCRJPTion:

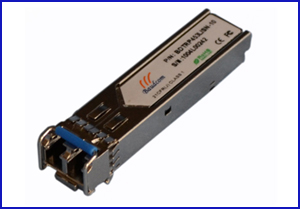

The Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They simultaneously comply with Gigabit Ethernet as specified in IEEE Std 802.31 and 1x and 2x Fiber Channel as defined in FC-PI 13.03.
