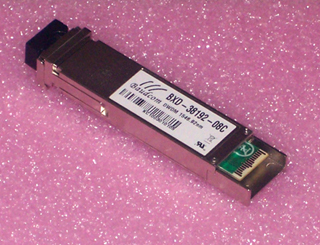

10Gbps DWDM XFP 40Km【物美价廉】
Absolute Maximum Ratings
Parameter
Symbol
Min
Max
Unit
Supply Voltage 1
Vcc3
-0.5
4.0
V
Supply Voltage 2
Vcc5
-0.5
6.0
V
Storage Temperature
Tst
-40
85
oC
Optical Input Received Power
PIN
-
+4
dBm
Operating Conditions
Parameter
Symbol
Min
Typical
Max
Unit
Supply Voltage 1
Vcc3
3.13
3.3
3.47
V
Supply current 1
Icc3
750
mA
Supply Voltage 2
Vcc5
4.75
5
5.25
V
Supply current 2
Icc5
500
mA
Operating Case temperature
Tca
-5
-
70
oC
Module Power Dissipation
Pm
-
3.5
W
Transmitter Specifications – Optical
Parameter
Symbol
Min
Typical
Max
Unit
Data Rate Multirate
Mra
9.95
-
11.3
Gbps
Center Wavelength (SOL)△
lc
lc -25
lc
lc +25
pm
Center Wavelength (EOL)▲
lc
lc -100
lc
lc+100
pm
Optical Transmit Power
Po
-1
-
+2
dBm
Optical Transmit Power (disabled)
PTX_DISABLE
-
-
-40
dBm
Extinction Ratio
ER
8.2
-
dB
Channel Spacing
??f
-
100
-
GHz
Jitter Generation
TJP-P
-
-
0.1
UI
Spectral Width (-20dB)
Dl20
-
0.1
0.3
nm
Side Mode Suppression Ratio
SMSR
30
-
-
dB
Dispersion penalty(800ps/nm)
DP
2
dB
Eye Mask
Compliant with ITU-T G.691 STM-64 eye mask
△Laser- Start of Life
▲Laser End of life
PIN Receiver Specifications – Optical
Parameter
Symbol
Min
Typical
Max
Unit
Data Rate Multirate
Mra
9.95
-
11.3
Gbps
Receiver Sensitivity
Rsens
-
-
-15
dBm
Receiver Sensitivity
(OSNR = 20dB)
Rsens-2
-
-
-24
dBm
Maximum Input Power
RX-overload
-
-
-1
dBm
Input Operating Wavelength
λ
1528
-
1564
nm
Reflectance
Rrx
-
-
-27
dB
Loss of Signal Asserted
-28
-
-
dBm
LOS De-Asserted
-
-
-22
dBm
LOS Hysteresis
0.5
-
-
dB
DeSCRJPTion
Baudcom DWDM XFP Transceiver exhibits excellent wavelength stability, supporting operation at 100 GHz channel, cost effective module. It is designed for 10G DWDM SDH, 10GBASE-ER/EW and 10G Fiber- Channel applications.
The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a PIN photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Baudcom DWDM XFP transceiver provides an enhanced monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
Features
Wavelength selectable to C-band ITU-T grid wavelengths
Suitable for use in 100GHz channel spacing DWDM systems
XFP MSA Compliant
data rate from 9.95 Gbps to 11.3Gbps
No Reference Clock required
Cold Start up Wavelength Compliance
DWDM-rated EML transmitter and PIN receiver
link length up to 40km
Low Power Dissipation 3.5W Maximum
-5oC to 70oC Operating Case Temperature
Diagnostic Performance Monitoring of module temperature, supply
Voltages, laser bias current, transmit optical power, receive optical power
RoHS compliant and lead free
Applications
SONET OC-192&SDH STM 64
10GBASE-ER/EW
40 km 10G Fiber Channel
DWDM Networks
