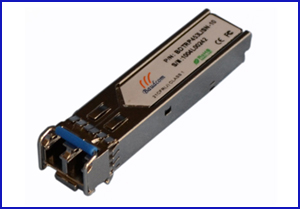

1.25G SFP 光模块
FEATURES:
l Up to 1.25Gb/s data links
l Hot-pluggable SFP footprint
l 1310nm Fabry-Perot laser transmitter
l Duplex LC connector
l Compliant with SFP MSA and SFF-8472
l Digital Diagnostic Monitoring(DDM):Internal Calibration or External Calibration
l Very low jitter
l No Rate Select input required for
Fiber Channel 1x/2x Operation
l Up to 20km on 9/125μm SMF
l Metal enclosure, for lower EMI
l Single 3.3V power supply
l Low power dissipation <700mW typical
l CWDM is also Available
l Class 1: FDA/IEC60825-1 Laser Security
APPLICATIONS:
l Gigabit Ethernet
l 1x Fiber Channel
l Switch to Switch interface
l Switched backplane applications
l Router/Server interface
l Other optical transmission systems
DeSCRJPTion:
BDTRP413L1SD-20 Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA).They comply with laser safety standard IEC-60825 and Ethernet standard IEEE802.3z 1000Base-LX/LH and IEEE802.3ah.
The transceiver consists of two sections: The transmitter section incorporates a FP laser. the receiver section consists of a PIN photodiode integrated with a trans-impedance preamplifier (TIA).
All modules satisfy class I laser safety requirements. The optical output can be disabled by a TTL logic high-level input of Tx Disable. Tx Fault indicates that degradation of the laser. Loss of signal (LOS) output indicates the loss of an input optical signal of receiver. The SFP module can be compatible with other brand switch devices like Cisco,Huawei etc.The SFP module has the function of AGC (Automatic Gain control without attenuator).
Optical Characteristics (TOP = 0 to 70℃, VCC = 3.00 to 3.60 Volts)
Parameter
Symbol
Min
Typ
Max
Unit
Ref.
Transmitter
Output Opt. Power
POUT
-9.5
-3
dBm
1
Optical Wavelength
λ
1270
1310
1355
nm
2
Spectral Width
σ
3
nm
2
Optical Modulation Amplitude
OMA
174
μW
2,3
Optical Rise/Fall Time
tr/ tf
100
160
ps
4
RIN
-120
dB/Hz
Deterministic Jitter Contribution
TX Δ DJ
20
56.5
ps
5
Total Jitter Contribution
TX Δ TJ
70
119
ps
Optical Extinction Ratio
ER
9
dB
Receiver
Average Rx Sensitivity @ 1.25 Gb/s
RSENS2
-22
dBm
6, 7
(Gigabit Ethernet)
Average Received Power
RxMAX
0
dBm
Receiver Elec. 3 dB cutoff freq.
1500
MHz
Optical Center Wavelength
λC
1270
1600
nm
Return Loss
12
dB
LOS De-Assert
LOSD
-23
-19
dBm
LOS Assert
LOSA
-30
-25
dBm
LOS Hysteresis
0.5
dB
Notes:
1. Class 1 Laser Safety per FDA/CDRH and EN (IEC) 60825 regulations.
2. Also specified to meet curves in FC-PI 13.0 Figures 18 and 19, which allow trade-off between
wavelength, spectral width and OMA.
3. Equivalent extinction ratio specification for Fiber Channel. Allows smaller ER at higher average power.
4. Unfiltered, 20-80%. Complies with IEEE 802.3 (Gig. E), FC 1x and 2x eye masks when filtered.
5. Measured with DJ-free data input signal. In actual application, output DJ will be the sum of input DJ and D??DJ.
6. Measured with conformance signals defined in FC-PI 13.0 specifications.
7. Measured with PRBS 27-1 at 10-12 BER
Ordering information
BDTRP413L1SD-20
1.25G SFP optical Transceiver,20km transmission,1310nm,DDM
Request price
BDTRP413L1SD-40
1.25G SFP optical Transceiver,40km transmission,1310nm,DDM
Request price
