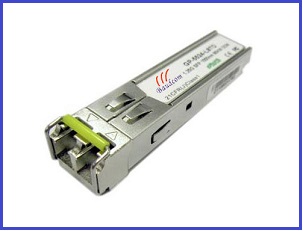

155M~2.67Gbps ESFP 光模块
Features
¨ 155Mbps~2.67Gbps bi-directional data links
¨ 1550nm DFB laser and APD photo detector for 80km transmission
¨ Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
¨ Digital Diagnostic Monitoring:Internal Calibration or External Calibration
¨ Compatible with RoHS
¨ +3.3V single power supply
¨ Operating case temperature:
Standard : 0 to +70°C
Extended : -20 to +85°C
Applications
¨ SDH STM-16 and SONET OC-48 system
¨ 2X Fiber Channel
¨ Switch to Switch interface
¨ Switched backplane applications
¨ Router/Server interface
¨ Other optical transmission systems
DeSCRJPTion
The ESFP transceivers are high performance, cost effective modules supporting multi-rate of 155Mbps~2.67Gbps and 80km transmission distance with SMF.
The transceiver consists of three sections: a DFB laser transmitter, a APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Module Block Diagram
BD-55M2-L8x(D): (DFB and APD, 1550nm,80km Reach)
Table 3 - Optical and Electrical Characteristics
Parameter
Symbol
Min
Typical
Max
Unit
Notes
Transmitter
Centre Wavelength
λc
1430
1550
1580
nm
Spectral Width (-20dB)
σ
1
nm
Side Mode Suppression Ratio
SMSR
30
dB
Average Output Power
Pout
-2
+3
dBm
1
Extinction Ratio
ER
8.2
dB
Optical Rise/Fall Time (20%~80%)
tr/tf
0.16
ns
Data Input Swing Differential
VIN
400
1800
mV
2
Input Differential Impedance
ZIN
90
100
110
Ω
TX Disable
Disable
2.0
Vcc
V
Enable
0
0.8
V
TX Fault
Fault
2.0
Vcc
V
Normal
0
0.8
V
Receiver
Centre Wavelength
λc
1260
1580
nm
Receiver Sensitivity
-28
dBm
3
Receiver Overload
-9
dBm
3
LOS De-Assert
LOSD
-30
dBm
LOS Assert
LOSA
-40
dBm
LOS Hysteresis
1
4
dB
Data Output Swing Differential
Vout
370
1800
mV
4
LOS
High
2.0
Vcc
V
Low
0.8
V
Notes:
1. The optical power is launched into SMF.
2. PECL input, internally AC-coupled and terminated.
3. Measured with a PRBS 223-1 test pattern @2488Mbps, BER ≤1×10-12.
4. Internally AC-coupled.
Ordering information
BD-55M2-L8C
ESFP module,1550nm,multi-rate 155M-2.67Gbps,80km,0oC~+70oC
Request price
BD-55M2-L8CD
ESFP module,1550nm,multi-rate 155M-2.67Gbps,80km,0oC~+70oC,With Digital Diagnostic Monitoring
Request price
