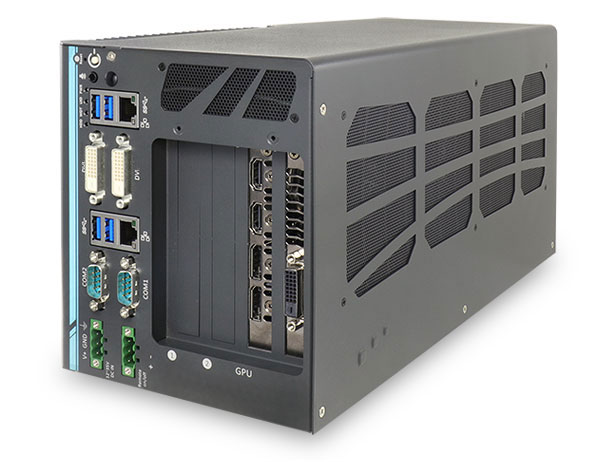

Industrial-grade GPU Computing Platform with 250W NVIDIA® GPU and Intel® Xeon® E3 v5 and 6th-Gen Core? Processor
| System Core | |
|---|---|
| Processor |
Supports Intel® Xeon® E3 V5 and 6th-Gen Core? LGA 1151 CPU -Intel® Xeon® Processor E3-1275 v5 (8M Cache, 3.6/ 4.0 GHz)* -Intel® Xeon® Processor E3-1268L v5 (8M Cache, 2.4/ 3.4 GHz) -Intel® Core? i7-6700 (8M Cache, 3.4/ 4.0 GHz)* -Intel® Core? i5-6500 (6M Cache, 3.2/ 3.6 GHz)* -Intel® Core? i7-6700TE (8M Cache, 2.4/ 3.4 GHz) -Intel® Core? i5-6500TE (6M Cache, 2.3/ 3.3 GHz) |
| Memory | Up to 32 GB ECC/ non-ECC DDR4-2133 |
| Graphics | Independent GPU via x16 PEG port, or integrated Intel® HD 530 graphics |
| Chipset | Intel® C236 platform controller hub |
| I/O Interface | |
|---|---|
| Ethernet |
1x Gigabit Ethernet port by Intel I219-LM 1x Gigabit Ethernet port by Intel I210-IT |
| Naive Video Port | 2x DVI-D connectors for DVI outputs, supporting 1920x1200 resolution |
| Video Port | 1x DVI-I connector for both analog RGB and DVI outputs |
| Serial Port | 2x Software-programmable RS-232/ 422/ 485 ports |
| USB | 4x USB 3.0 ports |
| Audio | 1x Speaker-out |
| Storage Interface | |
|---|---|
| SATA | 4x SATA ports for 2.5” HDD/ SSD installation, supporting RAID 0/ 1/ 5/ 10 |
| Expansion Slot | |
|---|---|
| PCI Express |
1x PCIe x16 slot @ Gen3, 16-lanes PCIE signals for GPU 2x PCIe x8 slot @ Gen3, 4-lanes PCIE signals |
| Power Supply | |
|---|---|
| DC Input | 2x 3-pin pluggable terminal block for 24 VDC input |
| Mechanical | |
|---|---|
| Dimension | 164 mm (W) x 174 mm (H) x 330 mm (D) |
| Weight | 4.7 kg |
| Mounting | Wall-mounting with damping bracket |
| Environmental | |
|---|---|
| Operating Temperature | -25°C ~ 60°C with 100% CPU/GPU loading **/*** |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 10%~90% , non-condensing |
| Vibration | Operating, 0.5 Grms, 5-500 Hz, 3 Axes (w/ GPU, fan and HDD), according to IEC60068-2-64) |
| Shock | - |
| EMC | CE/FCC Class A, according to EN 55022 & EN 55024 |
