FEATURES:
l Up to 155Mb/s data links
l Hot-pluggable SFP footprint
l 1310nm Fabry-Perot laser transmitter
l Duplex LC connector
l Compliant with SFP MSA and SFF-8472
l Digital Diagnostic Monitoring(DDM):Internal Calibration or External Calibration
l Very low jitter
l Automatic Gain control function
l No Rate Select input required for
Fiber Channel 1x/2x Operation
l 20Km transmission on 9/125μm SMF
l Metal enclosure, for lower EMI
l Single 3.3V power supply
l Low power dissipation <700mW typical
l Class 1: FDA/IEC60825-1 Laser Security
APPLICATIONS:
l Fast Ethernet
l SDH/STM-1,SONET/OC-3
l Switch to Switch interface
l Switched backplane applications
l Router/Server interface
l Other optical transmission systems
DeSCRJPTion:

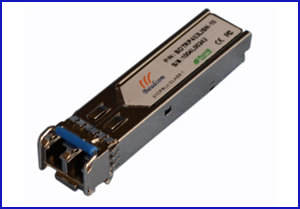

BDTRP113L1SD-20 Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA).The SFP transceiver supports dual data-rate of 155MGbps and from 20km transmission distance with SMF. They simultaneously comply with the standards IEEE Std 802.3 and IEEE 802.3u. The SFP module can be compatible with other brand switch devices like Cisco,Huawei etc.The SFP module has the function of AGC (Automatic Gain control).
Absolute Maximum Ratings
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Ref. |
|
Maximum Supply Voltage |
Vcc |
0.5 |
|
4.5 |
V |
|
|
Storage Temperature |
TS |
-40 |
|
100 |
℃ |
|
|
Case Operating Temperature |
TOP |
-40 |
|
85 |
℃ |
|
|
Relative Humidity |
RH |
0 |
|
95 |
% |
1 |
Electrical Characteristics (TOP = -40 to 85 ℃, VCC = 3.00 to 3.60 Volts)
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Ref. |
|
Supply Voltage |
Vcc |
3.00 |
|
3.60 |
V |
|
|
Supply Current |
Icc |
|
200 |
300 |
mA |
|
|
Transmitter |
||||||
|
Input differential impedance |
Rin |
|
100 |
|
Ω |
2 |
|
Single ended data input swing |
Vin,pp |
250 |
|
1200 |
mV |
|
|
Transmit Disable Voltage |
VD |
Vcc – 1.3 |
|
Vcc |
V |
|
|
Transmit Enable Voltage |
VEN |
Vee |
|
Vee+ 0.8 |
V |
3 |
|
Transmit Disable Assert Time |
|
|
|
10 |
us |
|
|
Receiver |
||||||
|
Single ended data output swing |
Vout,pp |
300 |
400 |
800 |
mV |
4 |
|
Data output rise time |
tr |
|
100 |
175 |
ps |
5 |
|
Data output fall time |
tf |
|
100 |
175 |
ps |
5 |
|
LOS Fault |
VLOS fault |
Vcc – 0.5 |
|
VccHOST |
V |
6 |
|
LOS Normal |
VLOS norm |
Vee |
|
Vee+0.5 |
V |
6 |
|
Power Supply Rejection |
PSR |
100 |
|
|
mVpp |
7 |
|
Deterministic Jitter Contribution |
RX Δ DJ |
|
|
51.7 |
ps |
8 |
|
Total Jitter Contribution |
RX Δ TJ |
|
|
122.4 |
ps |
|
Notes:
1. Non condensing.
2. AC coupled.
3. Or open circuit.
4. Into 100 ohm differential termination.
5. 20 – 80 %
6. LOS is LVTTL. Logic 0 indicates normal operation; logic 1 indicates no signal detected.
7. All transceiver specifications are compliant with a power supply sinusoidal modulation of 20 Hz to 1.5 MHz up to specified value applied through the power supply filtering network shown on page 23 of the Small Form-factor Pluggable (SFP) Transceiver MultiSource Agreement (MSA), September 14, 2000.
8. Measured with DJ-free data input signal. In actual application, output DJ will be the sum of input DJ andD??DJ.
Optical Characteristics (TOP = 0 to 70℃, VCC = 3.00 to 3.60 Volts)
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Ref. |
|
Transmitter |
||||||
|
Output Opt. Power |
POUT |
-12 |
|
-5 |
dBm |
1 |
|
Optical Wavelength |
λ |
1270 |
1310 |
1360 |
nm |
2 |
|
Spectral Width |
σ |
|
|
3 |
nm |
2 |
|
Optical Modulation Amplitude |
OMA |
174 |
|
|
μW |
2,3 |
|
Optical Rise/Fall Time |
tr/ tf |
|
100 |
160 |
ps |
4 |
|
RIN |
|
|
|
-120 |
dB/Hz |
|
|
Deterministic Jitter Contribution |
TX Δ DJ |
|
20 |
56.5 |
ps |
5 |
|
Total Jitter Contribution |
TX Δ TJ |
|
70 |
119 |
ps |
|
|
Optical Extinction Ratio |
ER |
10 |
|
|
dB |
|
|
Receiver |
||||||
|
Average Rx Sensitivity |
RSENS1 |
-37 |
|
-34 |
dBm |
6, 7 |
|
|
|
|
|
|
|
|
|
Overload Power |
RxMAX |
-3 |
|
|
dBm |
|
|
Optical Center Wavelength |
λC |
1265 |
|
1600 |
nm |
|
|
LOS De-Assert |
LOSD |
|
|
-35 |
dBm |
|
|
LOS Assert |
LOSA |
-45 |
|
|
dBm |
|
|
LOS Hysteresis |
|
0.5 |
3 |
|
dB |
|
Environmental Specifications
|
Parameter |
Symbol |
Min |
Typ |
Max |
Units |
Ref. |
|
Case Operating Temperature |
Top |
0 |
|
70 |
℃ |
|
|
Storage Temperature |
Tsto |
-40 |
|
100 |
℃ |
|
| BDTRP113L1SD-20 | 155M SFP Transceiver,dual fiber 20km transmission,1310nm,DDM | Request price |
| BDTRP113L1SD-40 | 155M SFP Transceiver,dual fiber 40km transmission,1310nm,DDM | Request price |
| BDTRP113L1SD-80 | 155M SFP Transceiver,dual fiber 80km transmission, 1550nm,DDM | Request price |
