DeSCRJPTion

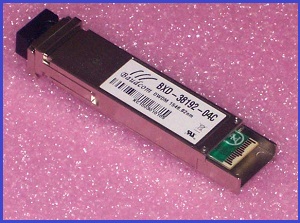

Baudcom CWDM XFP Transceiver exhibits excellent wavelength stability, supporting operation at 100 GHz channel, cost effective module. It is designed for 10G CWDM SDH, 10GBASE-ZR and 10G Fiber- Channel applications.

The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Baudcom CWDM XFP transceiver provides an enhanced monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.

Features

¨ Wavelength selectable to ITU-T standards covering CWDM grid

¨ XFP MSA Rev 4.5 Compliant

¨ Data rate from 9.95Gbps to 11.1Gbps

¨ No Reference Clock required

¨ Cooled EML and APD receiver

¨ Maximum link length up to 80km (1600ps/nm@G652 fiber)

¨ Low Power Dissipation 3.5W Maximum

¨ XFI and lineside loopback Mode Supported

¨ -5oC to 70oC Operating Case Temperature

¨ Diagnostic Performance Monitoring of module temperature,

Supply Voltages, laser bias current, transmit optical power, and receive optical power

¨ RoHS6 compliant (lead free)

Applications

¨ SONET OC-192& SDH STM 64

¨ CWDM 80km 10G Ethernet

¨ CWDM 80km 10G Fiber Channel

¨ CWDM Networks

¨ CWDM 80km 10G Ethernet with FEC

Transmitter Specifications – Optical

Parameter	Symbol	Min	Typical	Max	Unit
Center Wavelength	??c	????????????		????????????	nm
Center wavelength stability	????D	????????	??c	??????	nm
Optical Transmit Power	Po	0	-	+3	dBm
Optical Transmit Power (disabled)	PTX_DIS	-	-	-30	dBm
Extinction Ratio	ER	8.2	-	-	dB
Jitter Generation(P-P)	JG P-P	-	-	0.1	UI
Jitter Generation(RMS)	JG RMS	-	-	0.01	UI
Spectral Width (-20dB)	Δλ20	-	-	0.3	nm
Side Mode Suppression Ratio	SMSR	30	-	-	dB
Dispersion penalty(1600ps/nm) [2]	DP	-	-	3	dB
Relative Intensity Noise	RIN	-	-	-130	dB/Hz
Eye Mask	Compliant with ITU-T G.691 STM-64 eye mask

Note：

1. Wavelength stability is achieved within 60 seconds (max) of power up.

2. BER=10^-12; PRBS 2^31-1@10.3125Gbps

Transmitter Specifications – Electrical

Parameter	Symbol	Min	Typical	Max	Unit
Input differential impedance	Rim	-	100	-	Ω
Differential data Input	VtxDIFF	120	-	850	mV
Transmit Disable Voltage	VD	2.0	-	Vcc3+0.3	V
Transmit Enable Voltage	Ven	0	-	+0.8	V
Transmit Disable Assert Time	Vn	-	-	10	us

Receiver Specifications – Optical

Parameter	Symbol	Min		Typical	Max			Unit
Maximum Input Power	RX-overload	-7		-	-			dBm
Input Operating Wavelength	λ	????????		-	????????			nm
Reflectance	Rrx	-		-	-27			dB
Loss of Signal Asserted	LOS_A	-34		-	-			dBm
LOS De-Asserted	LOS_D	-		-	-24			dBm
LOS Hysteresis	LOS_H	0.5		-	-			dB
Receiver Sensitivity
Data rate (Gb/s)	BER	Dispersion (ps/nm)	Sensitivity back-to-back at OSNR>30dB (dBm)				Power Penalty at OSNR>30dB (dB)
9.95 ~10.3125	1e-12	-500 to 1450	-24				2
10.7 ~11.1	1e-4	-500 to 1300	-27				2
OSNR Performance
Data rate (Gb/s)	BER	Dispersion (ps/nm)	Min OSNR Back-to-back at Power: -7 to -16dBm (dB)			Max OSNR Penalty at Power:-7 to -16dBm (dB)
9.95 ~10.3125	1e-12	-500 to 1450	24			4
10.7 ~11.1	1e-4	-500 to 1300	16			4

Ordering information

BXC-47192-08C	1470nm,10Gbps,CWDM XFP 80km,-5C~+70C	Request price
BXC-49192-08C	1490nm,10Gbps,CWDM XFP 80km,-5C~+70C	Request price
BXC-51192-08C	1510nm,10Gbps,CWDM XFP 80km,-5C~+70C	Request price
BXC-53192-08C	cwdm XFP module,1530nm,10Gbps,80km,-5C~+70C	Request price
BXC-55192-08C	1550nm,10Gbps,CWDM XFP 80km,-5C~+70C	Request price
BXC-57192-08C	1570nm, 10Gbps, CWDM XFP 80km,-5C ~ +70C	Request price
BXC-59192-08C	1590nm,10Gbps,CWDM XFP 80km,-5C ~ +70C	Request price
BXC-61192-08C	1610nm,10Gbps,CWDM XFP 80km,-5C~+70C	Request price
BXC-XX192-04C	cwdm XFP module,wavelength 1470-1610nm,10Gbps,40km,-5C~+70C	Request price
