Features
¨ 155Mbps~2.67Gbps bi-directional data links
¨ 1550nm DFB laser and APD photo detector for 80km transmission
¨ Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
¨ Digital Diagnostic Monitoring:Internal Calibration or External Calibration
¨ Compatible with RoHS
¨ +3.3V single power supply
¨ Operating case temperature:
Standard : 0 to +70°C
Extended : -20 to +85°C
Applications
¨ SDH STM-16 and SONET OC-48 system
¨ 2X Fiber Channel
¨ Switch to Switch interface
¨ Switched backplane applications
¨ Router/Server interface
¨ Other optical transmission systems
DeSCRJPTion

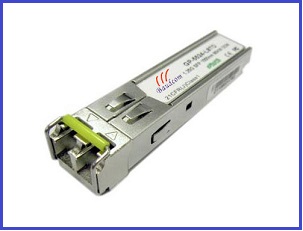

The ESFP transceivers are high performance, cost effective modules supporting multi-rate of 155Mbps~2.67Gbps and 80km transmission distance with SMF.
The transceiver consists of three sections: a DFB laser transmitter, a APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Module Block Diagram
BD-55M2-L8x(D): (DFB and APD, 1550nm,80km Reach)
Table 3 - Optical and Electrical Characteristics
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
Notes |
||
|
Transmitter |
||||||||
|
Centre Wavelength |
λc |
1430 |
1550 |
1580 |
nm |
|
||
|
Spectral Width (-20dB) |
σ |
|
|
1 |
nm |
|
||
|
Side Mode Suppression Ratio |
SMSR |
30 |
|
|
dB |
|
||
|
Average Output Power |
Pout |
-2 |
|
+3 |
dBm |
1 |
||
|
Extinction Ratio |
ER |
8.2 |
|
|
dB |
|
||
|
Optical Rise/Fall Time (20%~80%) |
tr/tf |
|
|
0.16 |
ns |
|
||
|
Data Input Swing Differential |
VIN |
400 |
|
1800 |
mV |
2 |
||
|
Input Differential Impedance |
ZIN |
90 |
100 |
110 |
Ω |
|
||
|
TX Disable |
Disable |
|
2.0 |
|
Vcc |
V |
|
|
|
Enable |
|
0 |
|
0.8 |
V |
|
||
|
TX Fault |
Fault |
|
2.0 |
|
Vcc |
V |
|
|
|
Normal |
|
0 |
|
0.8 |
V |
|
||
|
Receiver |
||||||||
|
Centre Wavelength |
λc |
1260 |
|
1580 |
nm |
|
||
|
Receiver Sensitivity |
|
|
|
-28 |
dBm |
3 |
||
|
Receiver Overload |
|
-9 |
|
|
dBm |
3 |
||
|
LOS De-Assert |
LOSD |
|
|
-30 |
dBm |
|
||
|
LOS Assert |
LOSA |
-40 |
|
|
dBm |
|
||
|
LOS Hysteresis |
|
1 |
|
4 |
dB |
|
||
|
Data Output Swing Differential |
Vout |
370 |
|
1800 |
mV |
4 |
||
|
LOS |
High |
2.0 |
|
Vcc |
V |
|
||
|
Low |
|
|
0.8 |
V |
|
|||
Notes:
1. The optical power is launched into SMF.
2. PECL input, internally AC-coupled and terminated.
3. Measured with a PRBS 223-1 test pattern @2488Mbps, BER ≤1×10-12.
4. Internally AC-coupled.
| BD-55M2-L8C | ESFP module,1550nm,multi-rate 155M-2.67Gbps,80km,0oC~+70oC | Request price |
| BD-55M2-L8CD | ESFP module,1550nm,multi-rate 155M-2.67Gbps,80km,0oC~+70oC,With Digital Diagnostic Monitoring | Request price |
