DeSCRJPTion

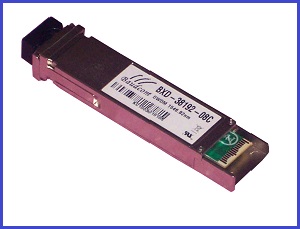

Baudcom DWDM XFP Transceiver exhibits excellent wavelength stability, supporting operation at 100 GHz channel, cost effective module. It is designed for 10G DWDM SDH, 10GBASE-ZR and 10G Fiber- Channel applications.
The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Baudcom DWDM XFP transceiver provides an enhanced monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
Features
![*]()
Wavelength selectable to C-band ITU-T grid wavelengths
![*]()
Suitable for use in 100GHz channel spacing DWDM systems
![*]()
XFP MSA Compliant
![*]()
data rate from 9.95 Gbps to 11.1Gbps
![*]()
No Reference Clock required
![*]()
Cold Start up Wavelength Compliance
![*]()
DWDM-rated EML transmitter and APD receiver
![*]()
link length up to 80km
![*]()
Low Power Dissipation 3.5W Maximum
![*]()
-5oC to 70oC Operating Case Temperature
![*]()
Diagnostic Performance Monitoring of module temperature, supply
Voltages, laser bias current, transmit optical power, receive optical power
![*]()
RoHS compliant and lead free
Applications
![*]()
SONET OC-192&SDH STM 64
![*]()
10G Ethernet
![*]()
80 km 10G Fiber Channel
![*]()
DWDM Networks
