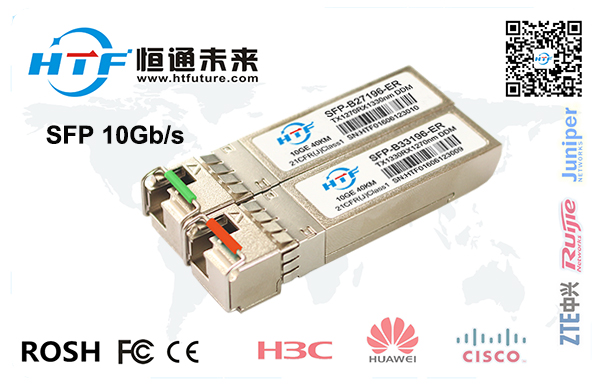

10Gb/s BIDI SFP+ 60km Transceiver
Absolute Maximum Ratings
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
|
Storage Temperature |
Ts |
-40 |
- |
85 |
oC |
|
|
Storage Ambient Humidity |
HA |
5 |
- |
95 |
% |
|
|
Operating Relative Humidity |
RH |
- |
- |
85 |
% |
|
|
Power Supply Voltage |
VCC |
-0.3 |
- |
4 |
V |
|
|
Signal Input Voltage |
|
Vcc-0.3 |
- |
Vcc+0.3 |
V |
|
Recommended Operating Conditions
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
|
Case Operating Temperature |
Tcase |
-5 |
- |
70 |
oC |
Without air flow |
|
Power Supply Voltage |
VCC |
3.14 |
3.3 |
3.47 |
V |
|
|
Power Supply Current |
ICC |
- |
|
450 |
mA |
|
|
Data Rate |
BR |
|
10.3125 |
|
Gbps |
|
|
Transmission Distance |
TD |
|
- |
60 |
km |
|
|
Coupled fiber |
Single mode fiber |
9/125um SMF |
||||
Product Features
l Up to 11.1Gbps Data Links
l Up to 60km transmission on SMF
l Power dissipation<1.5W
l 1270nm DFB laser and APD receiver for HTFPPB-273396-60BD
1330nm DFB laser and APD receiver for HTFPPB-332796-60BD
l 2-wire interface with integrated Digital Diagnostic monitoring
l EEPROM with Serial ID Functionality
l Hot-pluggable SFP+ footprint
l Compliant with SFP+ MSA with LC connector
l Single + 3.3V Power Supply
l Case operating temperature: 0oC~+70oC
Applications
l 10GBASE-BX
Standard
l Compliant with SFF-8472
l Compliant to SFF-8431
l RoHS Compliant.
Product DeSCRJPTion
HTFPPB-XXYY96-60BD is hot pluggable 3.3V Small-Form-Factor transceiver module. It designed expressly for high-speed communication applications that require rates up to 11.1Gb/s,it designed to be compliant with SFF-8472 SFP+ MSA. The module data link up to 60km in 9/125um single mode fiber.
Optical Characteristics
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
|
Transmitter |
||||||
|
Average Launched Power |
PO |
0 |
- |
5 |
dBm |
|
|
Average Launched Power(Laser Off) |
Poff |
- |
- |
-30 |
dBm |
Note 1 |
|
Center Wavelength Range |
λC |
1260 |
1270 |
1280 |
nm |
HTFPPB-273396-60BD |
|
1320 |
1330 |
1340 |
nm |
HTFPPB-332796-60BD |
||
|
Side mode suppression ratio |
SMSR |
30 |
- |
- |
dB |
|
|
Spectrum Bandwidth(-20dB) |
σ |
- |
- |
1 |
nm |
|
|
Extinction Ratio |
ER |
3.5 |
|
- |
dB |
Note 2 |
|
Output Eye Mask |
Compliant with IEEE 802.3ae |
|
Note 2 |
|||
|
Receiver |
||||||
|
Input Optical Wavelength |
λIN |
1320 |
1330 |
1340 |
nm |
HTFPPB-273396-60BD |
|
1260 |
1270 |
1280 |
nm |
HTFPPB-332796-60BD |
||
|
Receiver Sensitivity |
Psen |
- |
- |
-20 |
dBm |
Note 3 |
|
Input Saturation Power (Overload) |
PSAT |
-6 |
- |
- |
dBm |
Note 3 |
|
LOS -Assert Power |
PA |
-35 |
- |
- |
dBm |
|
|
LOS -Deassert Power |
PD |
- |
- |
-21 |
dBm |
|
|
LOS -Hysteresis |
PHys |
0.5 |
- |
5 |
dB |
|
Note:
1. The optical power is launched into SMF
2. Measured with RPBS 2^31-1 test pattern @10.3125Gbs
3. Measured with RPBS 2^31-1 test pattern @10.3125Gbs BER=<10^-12
Electrical Interface Characteristics
|
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
|
Total power supply current |
Icc |
- |
|
450 |
mA |
|
|
Transmitter |
||||||
|
Differential Data Input Voltage |
VDT |
180 |
- |
700 |
mVp-p |
|
|
Differential line input Impedance |
RIN |
85 |
100 |
115 |
Ohm |
|
|
Transmitter Fault Output-High |
VFaultH |
2.4 |
- |
Vcc |
V |
|
|
Transmitter Fault Output-Low |
VFaultL |
-0.3 |
- |
0.8 |
V |
|
|
Transmitter Disable Voltage- High |
VDisH |
2 |
- |
Vcc+0.3 |
V |
|
|
Transmitter Disable Voltage- low |
VDisL |
-0.3 |
- |
0.8 |
V |
|
