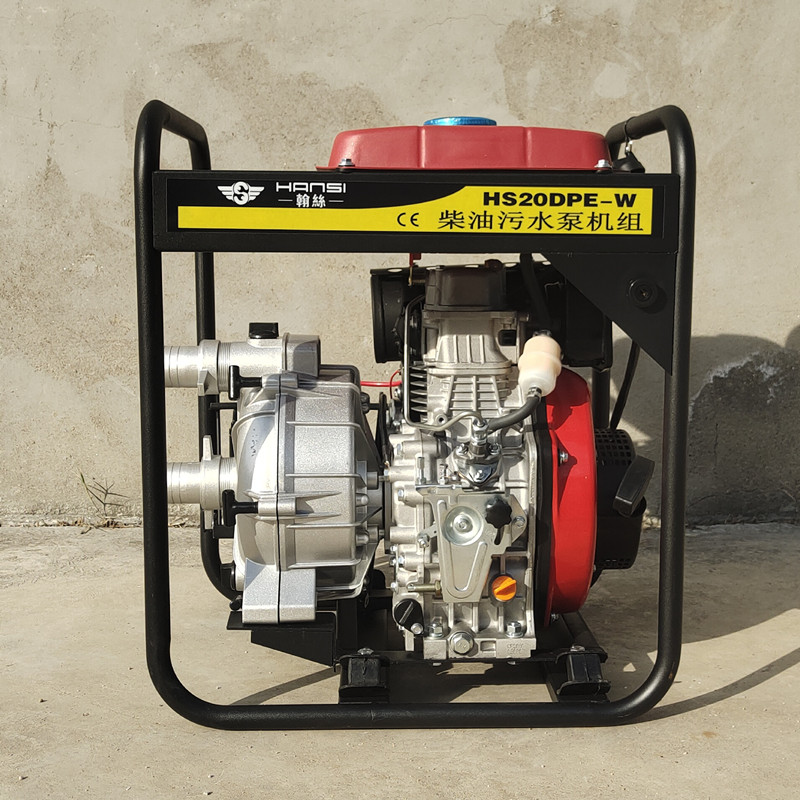

2寸柴油污水泵HS20DP-W
| Project项目 Model型号 | HS20DPE-W | ||
| Pump水泵 | Suction prot diameter 进水口直径 | mm | 50(2 〃 ) |
| discharge prot diameter 出水口直径 | mm | 50(2 〃 ) | |
| Max.capa ity流量 | m3h | 36 | |
| Cont.head lift扬程 | m | 25 | |
| Max.suction head吸程 | 8 | ||
| Particle diameter 允许通过软体颗粒直径 | mm | 30 | |
| principle原理 | Centrifugal pump 离心泵 | ||
| Engine 发动机 | Model: 发动机型号 | HS-178FE | |
| Engine type发动机形式 |
Single
cylinder,4-stroke,air-cooled ，diesel
engine 单缸，四冲程，风冷，柴油发动机 |
||
| Bore x Stroke缸径x行程 | 78*62 | ||
| Compression ratio压缩比 | 20:1 | ||
| Cubic cc.: 排耗量 | cc | 296 | |
| Max.outpur(3600rpm)功率 | KW | 6.2 | |
| Alimentation:供油方式 | Natural 自流式 | ||
| Cooling system:冷卻方式 | Air 风冷 | ||
| Starting system:起动方式 | Recoil/Electric starter 手拉式/电启动 | ||
| Rpm::转速 | rpm | 3600 | |
| Oil capacity:机油容量 | L | 1.1 | |
| Fuel tank capacity燃油箱容积 | L | 15 | |
| Fuel consumption ratio耗油量 | g/kW.h | 276.1 | |
| Lube.brand润滑油型号 | CD级或SAE10W-30，15W-40柴机油 | ||
| Fuel type燃油型号 | 0# in summer,-10# in winter,diesel oil 夏天0#，冬天-10#柴油 | ||
| Standard features 标准配置 | Connecter of infall,Connecter of outfall进出水管接头 | Yes 有 | |
| Filter过滤器 | Yes 有 | ||
| Seal ring密封圈 | Yes 有 | ||
| Hoop紧箍 | Yes 有 | ||
| big fuel tank capacity大油箱容量 | optional(可选) | ||
| Electric starter电启动 | Yes 有 | ||
| Size尺寸 | Packing size包装尺寸（L×W×H） | mm | 490*405*515 |
| Net/Gross weight净重/毛重 | kg | 35/37 | |
| 20FT Qty | 85 | ||
| 40FT Qty | 168 | ||
