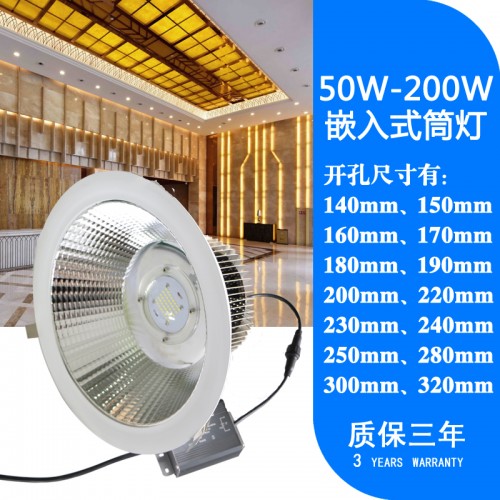

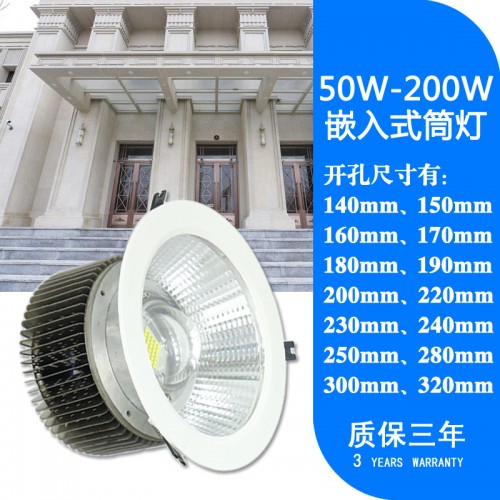

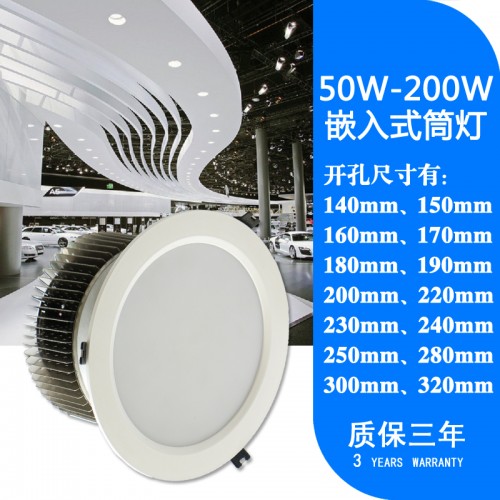

深圳市凯明节能设备有限公司生生led筒灯30w40w50w60w70w75w80w100w120w150w200w筒灯大功率筒灯，，直径面径开孔140mm 150mm 160mm 170mm 180mm 190mm 200mm 220mm 230mm 240mm 250mm 300mm 340mm筒灯，5寸6寸8寸10寸12寸LED筒灯天花灯，防水筒灯、聚光筒灯、防爆筒灯、防眩光筒灯、暗装筒灯、防雾筒灯、COB筒灯、节能筒灯、RGB筒灯，调光筒灯，可调光筒灯，户外防水筒灯，嵌入式筒灯、压铸筒灯、超薄筒灯、鳍片筒灯、防尘筒灯、防腐筒灯、天花灯、嵌灯、小角度天花射灯、应急筒灯、消防应急筒灯、大瓦数筒灯、筒灯、筒灯*、筒灯品牌、筒灯*、筒灯、酒店筒灯、高铁站筒灯、飞机场筒灯、商场筒灯、礼堂筒灯、可控硅调光筒灯，0-10V调光筒灯、下照筒灯、象鼻灯、斗胆筒灯，深防眩筒灯、万向筒灯，LED天花灯。

Features 品特点:

●采用高导纯铝鳍片散热器，外观阳极氧化，让整体灯具重量更轻，体积更小，Adopt high purity Aluminum finned radiator the fin suce treatment of anodic oxidationlighter weight aller size.

●采用原装进口美国科锐/飞利浦灯珠，高显色高光效，亮度可达130LM/W。Adopt CREE /Philips LED chips imported from Americahigh CRI and high efficiency up to 130lm/W.

●采用恒流恒压驱动，电源范围85-305VAC，各国电压均可使用 。Adopt Constant-current constant-voltage power supply operates in the 85~305 VAC rangewidely use in every country.

●采用进口磁悬浮电脑风扇，噪音小低于5分贝，寿命更长远。Adopt gnetic levitation Company fannoise lower than 5 dblonger lasting .

●采用圆形环状面环采用ABS防水材料，阻燃94V0。Adopt ABS waterproof circle ring anti-flaming 94V0.

●采用高品质雾面导光片增强漫反射，光色均匀、柔和、无眩光、不刺眼；Adopt high end diffuser high lumen outputsoft light no glare.

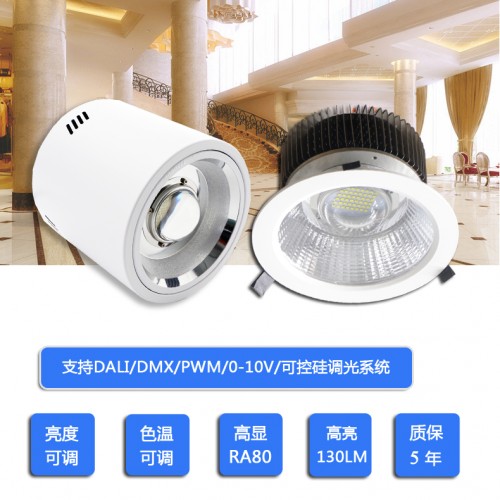

●可定制调光（0-10/可控硅/DALI） 特殊照明（RGB/应急）Dimming(0-10V/Triac/Dali) and professional lighting(Emergency/RGB) customized available.

Dimensions外形尺寸：

Inch

寸数

A-Size

面径

B-Cut Out

开孔

C-High

高度

5′

175mm

140mm

120mm

6′

200mm

170mm

120mm

8′

225mm

200mm

130mm

9′

235mm

210mm

130mm

10′

270mm

240mm

130mm

11′

300mm

280mm

180mm

12′

340mm

300mm

180mm

MAIN SPECIFICATIONS主要参数(t=20℃)

型号

Type

KW-SD50W

KW-SD60W

KW-SD80W

KW-SD100W

KW-SD120W

KW-SD150W

KW-SD200W

功率

Power

50W

60W

80W

100W

120W

150W

200W

输入电压

Input voltage

AC85-305V 480-528V DC12/24/36/48V

电源频率

Freqency range

50-60Hz

发光效率

luminous efficiency

100-110lm/w

灯具效率

Lamp>s efficiency

>90%

相关色温

Color temperature

暖白 Warm white

2700-3500K

正白 Pure white

4000-5000K

冷白 Cold white

6000-7000K

显色指数

Color rendering index

>80

光束角

Beam angle

30°、45°、60°、90°、120°

配光曲线

Light distribution

圆形光斑Round spot

配光方式

Light design

LED+透镜 LED+lens

LED 结点温升

Junction temperature

≤30℃

工作环境温度

Working temperature

-30℃——+55℃

储藏环境温度

Storage temperature

-25℃——+65℃

防护等级

IP Grade

IP65

光源使用寿命

Working life-span

50000H

电源连接线

Connect wire

棕色 Brown

L 火线

蓝色 Blue

N 零线

黄绿 Yellow/Green

G 地线

灯具 外壳颜色

Color of lamp shell

白色 White

*

Certificate

CE、ROSH、FCC、PSE

Inch

寸数

A-Size

面径

B-Cut Out

开孔

C-High

高度

5′

175mm

140mm

120mm

6′

200mm

170mm

120mm

8′

225mm

200mm

130mm

9′

235mm

210mm

130mm

10′

270mm

240mm

130mm

11′

300mm

280mm

180mm

12′

340mm

300mm

180mm

适用：高铁站、汽运站、航站楼、火车站、候车厅、会展、博物馆、工程等；旅馆、酒店、商务会议室、写字楼大堂、专卖店商业照明等；

1.维护维修前请确定已经断电。Please ensure that the in power source is switched off before performing any intenance or repair.

2.注意不要用水或者腐蚀性强的溶液进行清洁，用干抹布。Please do not use water or Corrosive Property to clean  cleaning with a dry rag is the best.

更换电源时，可直接用螺丝刀打开后盖后，取出电源，AC 电源三芯线接线按照红色对应电源上的“L”， 蓝色对应电源上的“N”黄绿色或者对应“G”，DC 电源线的红线或者白线对应电源的正黑线对应电源的负极，注意正负极不要接反。In the progressing of replace LED Driverplease use a hexagonal screwdriver to open rear cover and take out the driver connect the new AC input driver wiring as the figure show in the driver.
