UL1569 MC金属铠装电缆 MC3*12awg，Ul569，UL1569 MC cable UL认证
MC Cable is suitable for use as follows:
? Branch, feeder and service power distribution in commercial, industrial, institutional, and multi-residential buildings.
? Power, lighting, control, and signal circuits.
? Fished or embedded in plaster.
? Concealed or exposed installations.
? Environmental air-handling spaces per NEC 300.22 (C).
? Places of Assembly per NEC 518.4 and theaters per NEC 520.5.
? As aerial cable on a messenger.
? Installation in cable tray and approved raceways.
? Under raised floors for information technology equipment conductors and cables per NEC 645.5(D) & 645.5(D)(2).
? Class I Div. 2, Class II Div 2, & Class III Div. 1 Hazardous LOCAIIONs.
Standard
UL 83, UL 1063, UL 1569
Features
1,Reduces installation costs up to 50% over pipe and wire.
2,Lightweight aluminum armor--as much as 45% lighter than steel MC Cable.
3,UL Classified 1, 2, and 3 hour Through Penetration Firestop Systems:
W-J-3037, W-L-3110, W-L-3113, W-L-3117,W-L-3120, W-L-3121, W-L-3160,
C-AJ-3115, C-AJ-3140, C-AJ-3142, C-AJ-3145, C-AJ-3173, C-AJ-3202,
C-AJ-4065,C-AJ-4066, F-C-3038.
4,Cable reverse wound on reel for ease of pulling and installation. When
pulling from coils, pull from inside to ensure ease of installation.

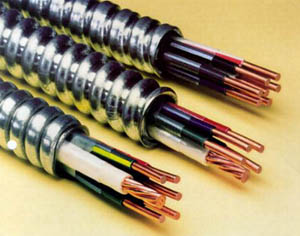

Specification and Construction
MC Cable is constructed with soft-drawn copper, Type THHN/THWN conductors rated 90°C dry/75°C
wet, available in sizes 14 AWG through 750 kcmil, and a green insulated
grounding conductor (sizes 1/0 AWG and larger furnished with bare
grounding conductor). The conductors are cabled together and a binder
tape bearing the print legend is wrapped around the assembly. Aluminum
interlocking armor is applied over the assembly. Refer to color chart
for conductor color sequence.
青岛青缆科技有限责任公司前身青岛电缆厂始建于1950年,是具有50年专业生产电线电缆历史的国家二级企业、国家二级计量单位。
青岛青缆科技有限责任公司位于青岛高科技工业园，毗邻海尔工业园，是青岛市高新技术企业。厂区占地40余亩，总资产1.6亿元，固定资产3500万元，生产设备60台套，实验设备50台套，大型生产线20条。公司现有员工400余人，其中大中专毕业生200余人，各类专业技术人员100余人。主要产品包括 35kv及以下交联电缆、10kv及以下架空绝缘电缆、PVC绝缘电力电缆、裸线、布电线、控制电缆、低烟无卤电缆、各类阻燃和耐火电缆、尼龙护套线、汽 车配套线、数据传输电缆、通信电缆及光纤光缆等。公司产品广泛应用于电力、电信、石化、冶金、建筑等行业，同时我们还与朗讯、摩托罗拉等跨国公司建立了良 好的业务关系。
公司生产设备先进、检测设备齐全、产品质量优良，售前、售中、售后服务热情周到，在用户中享有良好的声誉。企业先后通过了ISO9001质量体系 认证、ISO14001环境管理体系认证、青岛朗讯科技和北京摩托罗拉公司的第二方认证，产品通过CCC国家强制认证和美国UL认证，可按GB、IEC、 UL等标准及用户要求进行开发生产。
青岛青缆科技有限责任公司将在建立现代企业制度的基础上，不断寻求更稳定的产品质量，以更好的服务来保证合作伙伴的长远利益，真诚希望与国内外各行各业进行交流与合作，实现共同发展。
