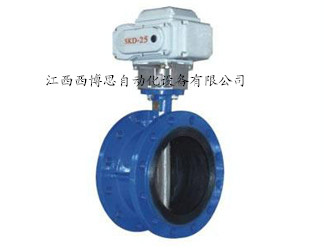

D941X电动法兰蝶阀概述：
电动法兰蝶阀作为新一代调速型蝶阀，电动法兰蝶阀从设计思路上改变了传统的靠机械变速来完成蝶板开关速度变化的模式，根据蝶板不同位置的动作特点，从电动驱动控制上进行了全新的设计。本系列电动法兰蝶阀采取改电动装置输入电流的频率，进而调整电动装置的转动速度和输出力矩，以达到控制蝶板开工关速度，实现蝶板快关、慢关两阶段关闭或慢开、快开两阶段开启的目的。与液控蝶阀具有同样的功能。
D941X电动法兰蝶阀主要技术参数
|
公称压力（MPa） |
0.25 |
0.6 |
1 |
|
|
公称通经（mm） |
1000～2400 |
800～2400 |
500～1600 |
|
|
试验压力 |
强度试验 |
0.375 |
0.9 |
1.5 |
|
密封试验 |
0.275 |
0.66 |
1.1 |
|
|
适用介质 |
水、海水 |
|||
|
适用温度（℃） |
≤80℃ |
|||
|
安装方式 |
立式、卧式 |
|||
D941X电动法兰蝶阀主要零部件
|
零件名称 |
材料 |
|
阀体 |
球墨铸钢、铸钢、合金钢、不锈钢 |
|
蝶板 |
灰铸铁、球墨铸钢、铸钢、不锈钢及特殊材料 |
|
密封圈 |
各种橡胶、聚四氟 |
|
阀杆 |
2Cr13、不锈钢 |
|
填料 |
O型圈、柔性石墨O |
D941X电动法兰蝶阀主要性能参数
|
设计制造 |
法兰连接尺寸 |
结构长度 |
压力试验 |
|
GB12238 |
GB2555-2526-8 |
GB12221 |
GB/T13927 |
D941X电动法兰蝶阀外形尺寸
|
PN |
DN |
L |
A |
H1 |
H2 |
DO |
B1 |
B2 |
B3 |
B4 |
|
0.25MPa |
1000 |
410 |
|
817 |
1303 |
400 |
225 |
709 |
303 |
770 |
|
1200 |
470 |
1200 |
812 |
1529 |
400 |
225 |
709 |
303 |
760 |
|
|
1400 |
530 |
1400 |
1020 |
1692 |
400 |
225 |
728 |
303 |
760 |
|
|
1600 |
600 |
1600 |
1145 |
1885 |
400 |
275 |
843 |
385 |
778 |
|
|
1800 |
670 |
1800 |
1315 |
1924 |
400 |
275 |
879 |
385 |
792 |
|
|
2000 |
760 |
2000 |
1670 |
2095 |
400 |
275 |
969 |
450 |
856 |
|
|
2200 |
840 |
2200 |
1739 |
2487 |
400 |
430 |
1103 |
540 |
995 |
|
|
2400 |
910 |
2400 |
1699 |
2595 |
400 |
430 |
1103 |
540 |
995 |
|
|
PN |
DN |
L |
A |
H1 |
H2 |
DO |
B1 |
B2 |
B3 |
B4 |
|
0.6MPa |
800 |
318 |
|
667 |
1190 |
500 |
175 |
583 |
230 |
683 |
|
900 |
330 |
|
745 |
1245 |
400 |
225 |
709 |
303 |
770 |
|
|
1000 |
410 |
|
817 |
1303 |
400 |
225 |
709 |
303 |
760 |
|
|
1200 |
470 |
1200 |
912 |
1529 |
400 |
225 |
728 |
303 |
760 |
|
|
1400 |
530 |
1400 |
1041 |
1693 |
400 |
275 |
843 |
385 |
778 |
|
|
1600 |
600 |
1600 |
1145 |
1885 |
400 |
275 |
879 |
385 |
792 |
|
|
1800 |
670 |
1800 |
1346 |
1924 |
400 |
275 |
969 |
450 |
856 |
|
|
2000 |
760 |
2000 |
1670 |
2095 |
400 |
430 |
1103 |
540 |
995 |
|
|
2200 |
840 |
2200 |
1739 |
2487 |
400 |
430 |
1103 |
540 |
995 |
|
|
2400 |
910 |
2400 |
1850 |
2595 |
400 |
430 |
1103 |
540 |
995 |
|
|
PN |
DN |
L |
A |
H1 |
H2 |
DO |
B1 |
B2 |
B3 |
B4 |
|
1.0MPa |
500 |
229 |
|
548 |
943 |
500 |
145 |
533 |
162 |
610 |
|
600 |
267 |
|
583 |
985 |
500 |
175 |
583 |
230 |
683 |
|
|
700 |
292 |
|
612 |
1075 |
500 |
175 |
583 |
230 |
683 |
|
|
800 |
318 |
|
677 |
1190 |
400 |
225 |
709 |
303 |
770 |
|
|
900 |
330 |
|
745 |
1245 |
400 |
225 |
709 |
303 |
760 |
|
|
1000 |
410 |
|
817 |
1303 |
400 |
225 |
728 |
303 |
760 |
|
|
1200 |
470 |
1200 |
948 |
1529 |
400 |
275 |
843 |
385 |
778 |
|
|
1400 |
530 |
1400 |
1158 |
1692 |
400 |
275 |
879 |
385 |
792 |
|
|
1600 |
600 |
1600 |
1285 |
1885 |
400 |
275 |
969 |
450 |
85 |
