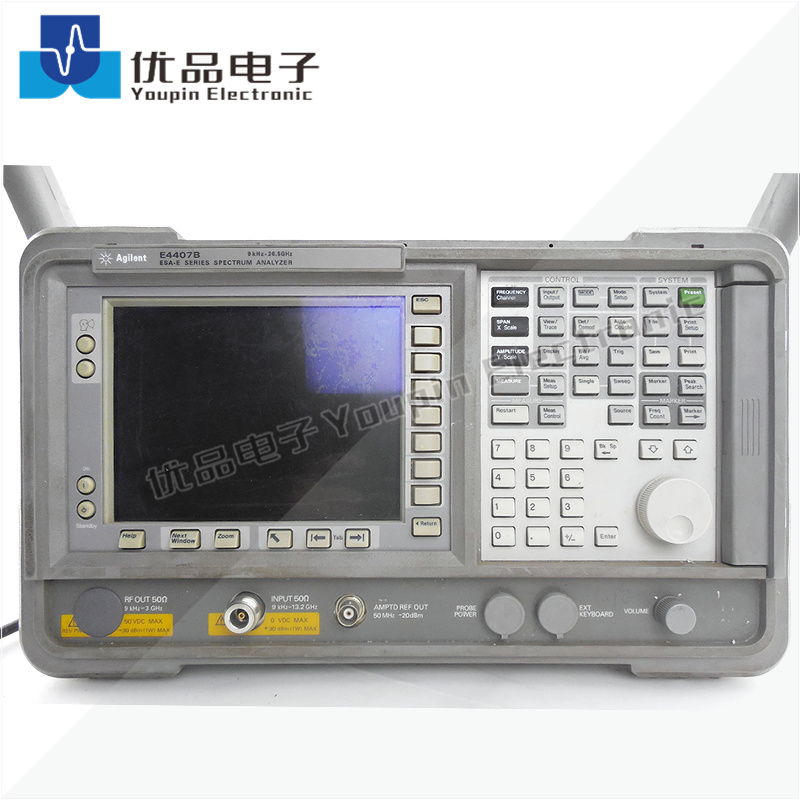

是德（安捷伦）E4407B ESA-E 系列频谱分析仪_E4407B

性能
0.4 dB的总体幅度精度
+16 dBm TOI
-167 dBm DANL，带有内置前置放大器
测量应用软件
相噪、噪声系数、GSM/EDGE、cdmaOne等测量应用软件
包括功率套件，可进行一键式RF功率测量

特性
10 MHz分析带宽
分段扫描，一次扫描32个不连续的范围
便携耐用，可在现场提供实验室级的性能
5分钟的预热时间，可确保极高的测量精度

ESA-E系列是能适应未来需要的中性能频谱分析仪解决方案。该系列在测量速度、动态范围、精度和功率分辨能力上，都为类似价位的产品建立了性能标准。它灵活的平台设计使研发、制造和现场服务工程师能自定义产品，以满足特定测试要求，和在需要时用新的特性升级产品。该产品采用单键测量解决方案，并具有易于浏览的用户界面和高速测量的性能，使工程师能把较少的时间用于测试，而把更多的时间用在元件和产品的设计、制作和查错上。

E4407B-042     Gray spectrum analyzer backpack
E4407B-044     Yellow spectrum analyzer backpack
E4407B-060     Reduced emissions
E4407B-106     Bluetooth FM demodulator
E4407B-120     Enhanced Wide Offset Phase Noise and ACPR Dynamic Range
E4407B-1AX     RS-232 and Centronics interface
E4407B-1CP     Rackmount and handle kit
E4407B-1D5     High stability frequency reference
E4407B-1D6     Time-gated spectrum analysis, fixed perpetual license
E4407B-1D7     50 -75 ohm minimum loss pad(s)
E4407B-1DN    Tracking generator
E4407B-1DR    Narrow resolution bandwidths
E4407B-1DS     Preamp
E4407B-219     Noise figure measurement personality and hardware, fixed perpetual license
E4407B-225     Cable fault LOCAIION measurement personality fixed perpetual license
E4407B-226     Phase noise measurement personality, fixed perpetual license measurement personality fixed perpetual license
E4407B-227     Cable TV measurement personality, fixed perpetual license
E4407B-228     Bluetooth measurement personality, fixed perpetual license
E4407B-229     Modulation analysis measurement personality, fixed perpetual license
E4407B-230     BenchLink web remote control software
E4407B-231     ESA to 89600 series software link update
E4407B-252     EDGE upgrade to GSM measurement personality, fixed perpetual license
E4407B-266     8566/8568 programming code compatibility suite
E4407B-290     859x programming code compatibilty
E4407B-304     Bluetooth premium opt. Bundle
E4407B-A4J      IF and sweep ports
E4407B-A5D    12 Vdc power cable
E4407B-A6J      ANSI Z540-1-1994 Calibration
E4407B-AKT     Russia - Russian localization (includes English manual set)
E4407B-AMG Calibration + Uncertainties + Guardbanding (Accredited)
E4407B-AXT     Add transit case
E4407B-AYQ     FM demodulation and quasi peak detector
E4407B-AYT Gray soft carrying/operating case
E4407B-AYU     Yellow soft carrying/operating case
E4407B-AYX Fast time domain sweep
E4407B-AYZ External Mixing
E4407B-B75     Performance opts. Bundle
E4407B-B7B     TV trigger and picture on screen
E4407B-B7D    Digital signal processing and fast ADC
E4407B-B7E     RF communications hardware
E4407B-B7K     Cable fault measurement kit
E4407B-BAA   FM demodulation
E4407B-BAB   APC 3.5 Input Connector
E4407B-BAC    CDMAOne measurement personality, fixed perpetual license
E4407B-BAH    GSM/GPRS measurement personality, fixed perpetual license
E4407B-COM   Communication test analyzer (1D5, 1DR, B7D, B7E, BAA)
E4407B-H70     70 MHz IF out
E4407B-J36      FM deviation measurement personality - enhanced, fixed perpetual license
E4407B-STD     Standard analyzer (AYX, BAA)
E4407B-STG     Standard analyzer with tracking generator (1DN,AYX, BAA)
E4407B-UK6     Commercial calibration certificate with test data
E4407B-UK9     Front panel cover
E4407B-UKB    100 Hz low frequency extension
BV0005A BenchVue Spectrum Analyzer Pro Software License
E1779B       充电式电池组
