ETS 5532 静电衰减温湿度环境手套箱_ETS 5532_理宝商贸（上海）有限公司

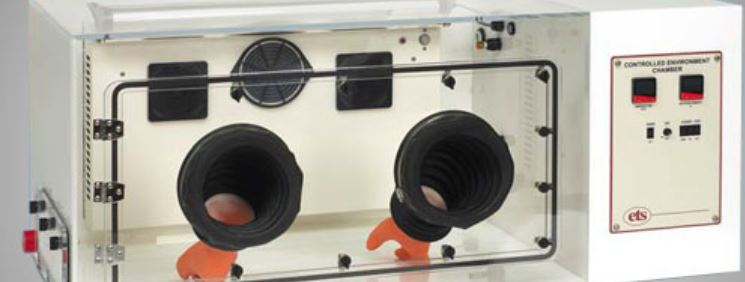

ETS 5532 環境控制手套箱是為了需要極高可見性、精準度、穩定性的設備及物料而設的，備有一個較大的內部工作區 (13立方英尺，368升)。獨立地維持濕度於 98% 相對濕度及氣溫於 64-135°F (18-55°C)。用途包括稱重、檢測、貯藏、生物醫學的製備及老化、醫藥、汽車、電子、DOD、靜電、大學研究和其他應用。

Chamber:
Material: Fans: 2x110 cfm (6230 l/min), ON/VARY/OFF
3/8” (6mm) clear & white acrylic Access Ports: (right side)
Construction: 2x?” (6mm) Quick disconnects
PS30 polished welded seams 1x1” (25.4mm) Hose barb
Doors: 3/8” (9mm) clear acrylic, ?-turn latches 1x1?” (31.4mm) cable pass through
Seal: (located on left side)
?” (6mm) Poron, non-setting gasket Lighting: 18W sealed fluorescent, ON/OFF sw
Gloves: (when configured) Dimensions:
.018” (0.5mm) replaceable hands, natural rubber, Overall: 54”Wx25.5”Dx22”H (137x65x56cm)
accordion sleeves, 8” (20.3cm) ports Working space (useable): 39”Wx20”Dx22”H
Operating Range: (99x51x56 cm)
Humidity: 98% Weight: 120 lbs (55 kg)
Temp: (Std) 64-135°F (18-55°C), 55°F/12°C (Opt)

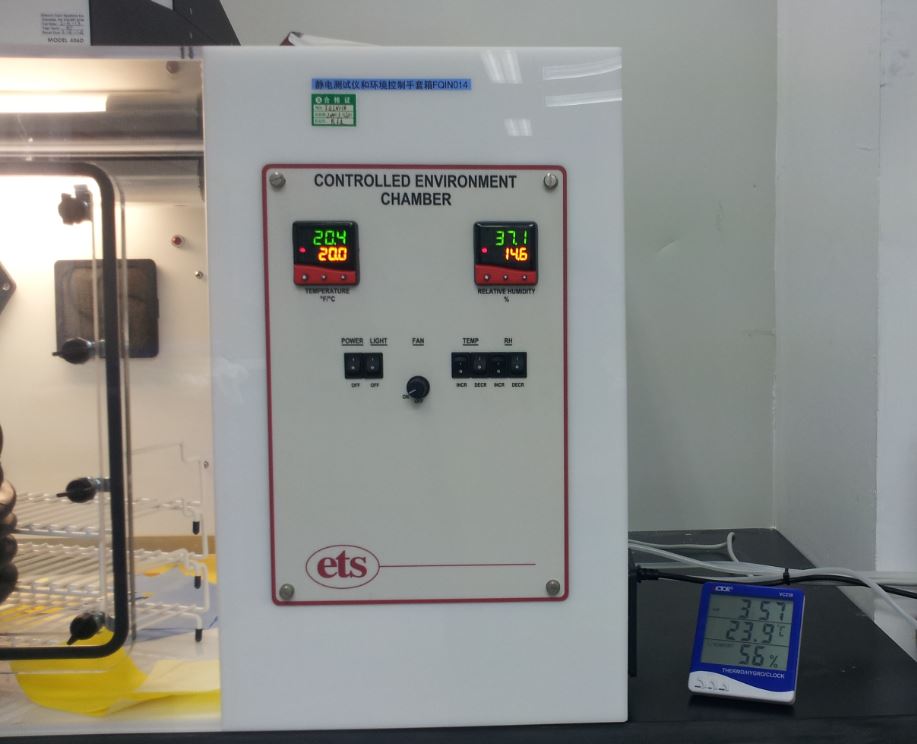

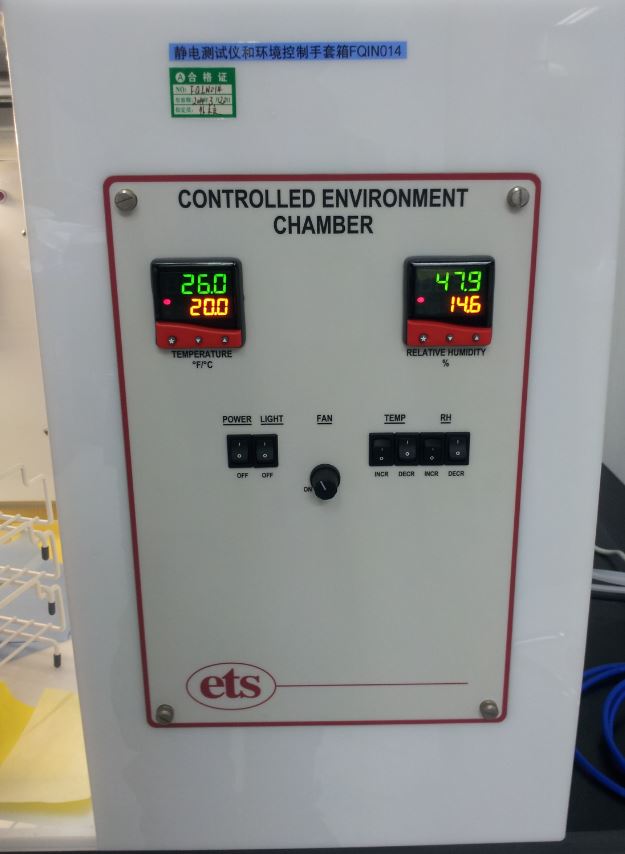

Controllers: Operating Systems:
Type: 2x CAL 9500, multiple ramp/soak cycles Dehumidify: Desiccant/Pump
1x CAL 9500, opt. 3rd parameter, linear input 2.5 lb (1.1kg) CaSO4/1.2cfm
Resolution: 0.1%/0.1° Humidify: Ultrasonic
Set Pt. Tracking: ±0.1 Capacity: Tap water or 5 gal (19 l) ext. tank
Rec. Out: 0-1vdc, 0-20ma, 4-20ma Flow rate – 0.06 cfm (max)
Computer IF: MODBUS proto. Via RS485- Heat: Electric, 500W
PC with W98 or higher, NT Cool: 150W Thermoelectric (Std), 300W (Opt)
Sensor: Power:
Type: Temp compensated RH/Temp Voltage: 115/230VAC, 50/60Hz
RH: Capacitive film, 0 to 100%, non-condense Current: 8-10 Amps
Temp: RTD, -40 to +140°F (-40 to 60°C)
Accuracy: ±1.5% RH @ 72°F (22°C) Warranty: One (1) year

ETS 5532 静电衰减温湿度环境手套箱
