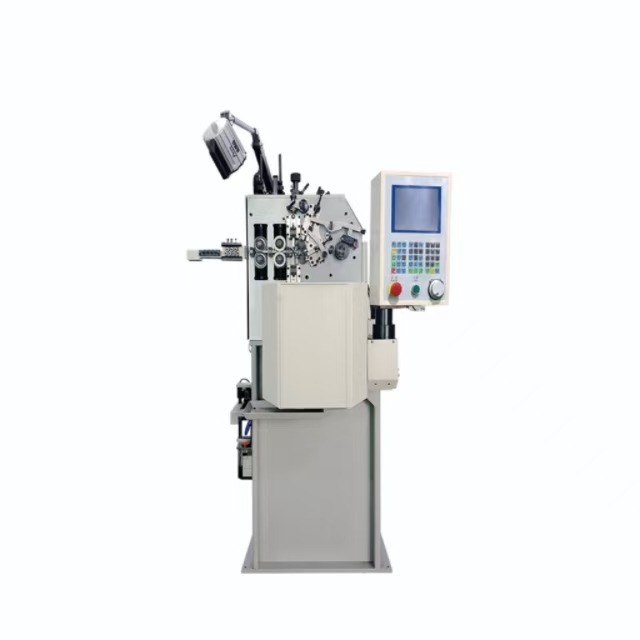

2 axes Spring Coiling Machine（2轴压簧机）
|
Model 型号 |
US-208 |
US-212 |
US-220 |
US-230 |
|
Wire Diameter 线径 |
?0.15～?0.8MM |
?0.2～?1.2MM |
?0.5～?2.0MM |
?1.0～?3.0MM |
|
Axis 轴数 |
2 |
2 |
2 |
2 |
|
Wire Feed Wheel Sets 送线轮组数 |
1Set |
2Sets |
2Sets |
2Sets |
|
Max. Outside Diameter 最大外径 |
?20mm |
?25mm |
?45mm |
?50mm |
|
Max. Feeding Speed 最大送线速度 |
300m/min |
200m/min |
155m/min |
135m/min |
|
Cam Axis 凸轮轴功率 |
0.75KW |
0.85KW |
2.7KW |
2.7KW |
|
Wire Feeding Axis 送线轴功率 |
0.75KW |
0.85KW |
2.7KW |
3.8KW |
|
Dimension (LxWxH) 尺寸（长×宽×高） |
850*650*1300(mm) |
800*750*1500(mm) |
1100*850*1600(mm) |
1200*1200*1700(mm) |
|
Weight (kg) 重量（千克） |
400kg |
500kg |
850kg |
1200kg |
Machine features:
机器特性：
① It is composed of servo control system and full digital driver.
由伺服控制系统和全数字驱动组成。
② Adopts 5.7-inch human-machine computer interface and membrane buttons, which are easy and convenient to operate.
采用5.7英寸人机交互界面和薄膜按键，操作简便。
③The camshaft (X-axis) can perform forward and reverse movements, and the wire-feeding shaft (Y-axis) can increase or decrease the wire-feeding length during machine operation.
凸轮轴（X轴）可正反转，送线轴（Y轴）可调整送线长度。
④In high-speed production, when the servo motor overheats, the computer will automatically detect and slow down to protect the motor.
高速生产中伺服电机过热时，电脑自动检测并降速保护电机。
⑤The machine has a probe deceleration ratio function.
机器具有探针减速比功能。
⑥ During the production process, production capacity can be increased or decreased at any time.
生产过程中可随时增减产能。
⑦ Mainly suitable for processing various precision compression springs (coil springs), simple torsion springs, tension springs and other spring products within the wire diameter range
适用于线径范围内的精密压簧、扭簧、拉簧等。
