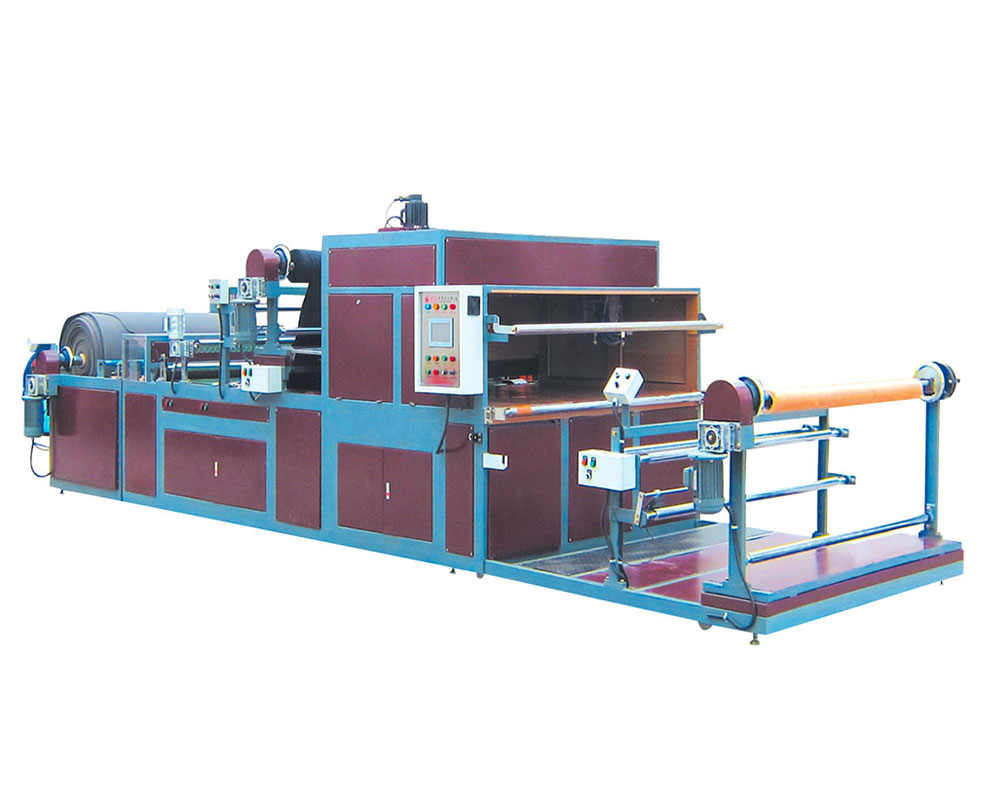

产品类别：贴合机系列产品编号：PT-225产品名称：PT-225喷胶贴合机产品说明：
用途：
※ 主要用於內衣行業兩件物料之間的上膠貼合。如泡棉、布料、PVC/EVA的上膠貼合。特別適合於高端產品之貼合。
Function:
※ It is mainly used to laminate foam，fabric，and EVA ect. It is especially suitable for laminating various high-performance and super soft material. It is the best choice for laminating the high-quality materials for seamless lingerie
特點：
※ 配置高性能噴槍，膠水霧化效果好，噴塗均勻。
※ 二種物料經壓輥貼合，無需加熱。
※ 配置自動對邊系統，及恒張力放，收卷控制系統，布面拉力均勻，不起皺。
※ 貼合之產品柔軟透氣，富有彈性，粘貼力強，易定型，耐水洗。
Features
※ Equipped with high-performance spray guns, the atomization effect is good; the glue can be well-distributed and sprayed evenly.
※ It is cold lamination without being heated, the two materials to be bonded together through the compressing rollers.
※ Equipped with automatic edge and tension units, with surface unwinding device and separate driven motor to feed out material without tension also with edge control device.
※ The laminated products are soft, breathable and flexible. And they are with good sticky performance, easy forming and anti-wrinkled, washable and durable.
技術參數：
Technical Specifications:
|
電源/功率 Power supply/power |
380V/35W |
|
氣壓 Air pressure |
0.6~0.8Map
|
|
貼合速度 Laminating speed |
0~15米/分鐘（可調） 0~15m/m（adjustable） |
|
原料最大寬度 Max width |
1700mm |
|
主機尺寸 Size of the main engine |
7200mmx2250mmx2050mm |
|
重量 Weight |
3500kg
|
