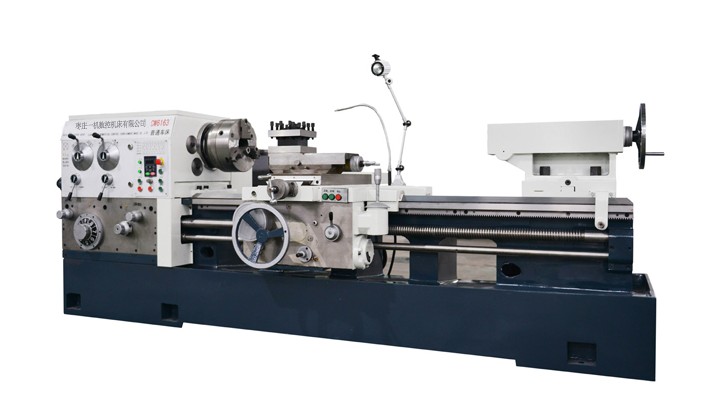

| 型号 Model | CA6140 CA6140B | CA6240 CA6240B | CA6150 CA6150B | CA6250 CA6250B | CA6161 CA6161B | CA6261 CA6261B | CA6166 CA6166B | CA6266 CA6266B | CA6180 CA6180B | CA6280 CA6280B | ||
|
床身上最大工件直径 Max. Swing over bed |
400mm | 500mm | 610mm | 610mm | 610mm | |||||||
|
刀架上最大工件直径 Max. Swing over carriage |
210mm | 300mm | 370mm | 400mm | 540mm | |||||||
|
马鞍槽最大工件直径 Max. Swing in gap |
- | 630mm | - | 720mm | - | 830mm | - | 880mm | - | 1020mm | ||
|
马鞍槽有效长度 Effective gap length |
- | 210mm | - | 210mm | - | 210mm | - | 210mm | - | 210mm | ||
|
最大工件长度 Max. Length of workpiece |
750mm1000mm1500mm2000mm3000mm | |||||||||||
| 床身宽度 Width of bed | 400mm | |||||||||||
| 刀杆截面 Section of turning tool | 25X25mm | |||||||||||
| 主轴 Spindle |
主轴转速范围 Spindle speeds |
11—1600 r/min (24 steps) | ||||||||||
|
主轴内孔 Hole though spindle |
52mm(80mm) | |||||||||||
|
主轴孔锥度 Spindle taper |
Morse No.6 (莫氏6号) | |||||||||||
| 进给 Feed | 进给数量 No. of feeds | 64种(kinds)(for each) | ||||||||||
| 公制螺纹Range of metric threads (kinds) | (1-192mm)44种(44kinds) | |||||||||||
| 英制螺纹 Range of inch threads(kinds) | (1-24tpi)21种(21kinds) | |||||||||||
| 模数螺纹 Rage of module threads(kinds) | 0.25-48(模数39种)(Module 39 kinds) | |||||||||||
| 径节螺纹 Rage of Diametral pitc threads (kinds) | 1-96DP(37种)(37 kinds) | |||||||||||
| 床尾 Tailstock |
床尾主轴最大行程 Max tailstock spindle travel |
150mm | ||||||||||
| 床尾主轴直径 Tailstock spindle diameter | 75mm | |||||||||||
| 床尾主轴孔锥度 | Morse No.5 (莫氏5号) | |||||||||||
| 主电机 Main motor | 7.5KW(10HP) | |||||||||||
|
包装外形尺寸 Picking dimensions (L×M×H mm) |
Overall dimensions for 750 | 2440X1150X1170 | 2440X1150X1700 | 2440X1190X1700 | 2440X1150X1900 | 2440X1150X1950 | ||||||
| Overall dimensions for 1000 | 2650X1150X1700 | 2650X1150X1700 | 2650X1190X1700 | 2650X1150X1900 | 2650X1150X1950 | |||||||
| Overall dimensions for 1500 | 3150X1150X1700 | 3150X1150X1700 | 3150X1190X1700 | 3150X1150X1900 | 3150X1150X1950 | |||||||
| Overall dimensions for 2000 | 3610X1150X1700 | 3610X1150X1700 | 3610X1190X1700 | 3650X1150X1900 | 3650X1150X1950 | |||||||
| Overall dimensions for 3000 | 4610X1150X1700 | 4610X1150X1700 | 4610X1190X1700 | 4650X1150X1900 | 4650X1150X1950 | |||||||
|
重量 Weight (Kg) |
Length | 毛重 G.W. 净重 N.W. | ||||||||||
| Overall dimensions for 750 | 2700 2000 | 2700 2000 | 2860 2260 | 2900 2300 | 3000 2400 | |||||||
| Overall dimensions for 1000 | 2800 2100 | 2700 2000 | 3050 2450 | 3060 2460 | 3200 2600 | |||||||
| Overall dimensions for 1500 | 3050 2250 | 2700 2000 | 3240 2640 | 3250 2650 | 3400 2800 | |||||||
| Overall dimensions for 2000 | 3300 2600 | 2700 2000 | 3480 2880 | 3480 2880 | 3500 3000 | |||||||
| Overall dimensions for 3000 | 4000 3450 | 2700 2000 | 4287 3687 | 4300 3700 |
4500 3900 |
|||||||
