不锈钢安全阀：
上海好施阀门有限公司是国内生产安全阀的主导厂，厂内建有远东一流的安全阀测试中心，国产第一台安全阀就是我厂诞生的。二十多年来，好施牌安全阀的品种已发展到百余个系列，千余个规格，产品广泛应用于锅炉、石化、电站以及国防工业。并为国内第一座核电站秦山核电站研制成功了第一批核级安全阀。好施牌安全阀主要产品系列分别荣获机械部信得过产品，上海市优质产品称号，国家银质奖。好施牌安全阀是受压设备、容器或管路上的最佳超压保护装置。当设备压力升高达到预定值时，安全阀自动开启，继而全量排放，防止设备压力继续升高；当压力降低到规定值时，安全阀及时自动关闭。好施牌安全阀是选用者为保护工程设备安全运行的最理想的，最科学的明智选择。

主要连接尺寸：

型号	公称		主要结构尺寸(mm)					阀体材料	简要性能		备注
型号	通径 DN(mm)	压力 PN(Mpa)	D	D1	L	L1	H	阀体材料	适用温度 ℃	适用介质	备注
A21W-16P	15	1.6			35	60	64	1Cr1₈Ni₉Ti	≤200	醋酸类
"	20	"			40	68	68	"	"	"
"	25	"			50	78	105	"	"	"
A21W-25P	15	2.5			35	60	64	1Cr1₈Ni₉Ti	"	"
"	20	"			40	68	68	"	"	"
"	25	"			50	78	105	"	"	"
A21W-40P	15	4.0			35	60	64	"	"	"
"	20	"			40	68	68	"	"	"
"	25	"			50	78	105	"	"	"
A41Y-16P	32	1.6	135	135	115	100	266	1Cr1₈Ni₉Ti	≤200	醋酸类
"	40	"	145	145	120	105	318	"	"	"
"	50	"	160	160	130	115	350	"	"	"
"	65	"						"	"	"
"	80	"	195	195	160	135	385	"	"	"
"	100	"	215	215	170	160	525	"	"	"
"	150	"						"	"	"
"	200	"						"	"	"
A41Y-25P	32	2.5	135	135	115	100	266	1Cr1₈Ni₉Ti	≤200	醋酸类
"	40	"	145	145	120	105	318	"	"	"
"	50	"	160	160	130	115	340	"	"	"
"	65	"						"	"	"
"	80	"	195	195	160	135	565	"	"	"
"	100	"	230	215	170	160	580	"	"	"
A41Y-40P	32	4.0	135	135	115	100	266	1Cr1₈Ni₉Ti	≤200	醋酸类
"	40	"	145	145	120	105	318	"	"	"
"	50	"	160	160	130	115	340	"	"	"
"	65	"						"	"	"
"	80	"	195	195	160	135	565	"	"	"
"	100	"						"	"	"
A41Y-16R	32	1.6	135	135	115	100	260	OCr18Ni12Mo2Ti	≤200	醋酸类
"	40	"	145	145	120	105	318	"	"	"
"	50	"	160	160	130	115	350	"	"	"
"	65	"						"	"	"
"	80	"	195	195	160	135	385	"	"	"
"	100	"	215	215	170	160	525	"	"	"
"	150	"						"	"	"
"	200	"						"	"	"
A41Y-25R	32	2.5	135	135	115	100	266	OCr18Ni12Mo2Ti	≤200	醋酸类
"	40	"	145	145	120	105	318	"	"	"
"	50	"	160	160	130	115	350	"	"	"
"	65	"						"	"	"
"	80	"	195	195	160	135	570	"	"	"
"	100	"	230	215	170	160	580	"	"	"
"	150	"
A41Y-40R	32	4.0	135	135	115	100	266	OCr18Ni12Mo2Ti	≤200	醋酸类
"	40	"	150	150	120	110	320	"	"	"
"	50	"	165	165	135	120	340	"	"	"
"	65	"						"	"	"
"	80	"	195	195	160	135	570	"	"	"
"	100	"						"	"	"
"	150	"						"	"	"
SA41H-16P	25	1.6	115	45	55	85	200	1Cr1₈Ni₉Ti	≤200	醋酸类
SA41H-25P	25	2.5	115	45	55	85	200	1Cr1₈Ni₉Ti	≤200	醋酸类
SA41H-40P	25	4.0	115	45	55	85	200	1Cr1₈Ni₉Ti	≤200	醋酸类
SA41H-64P	25	6.4	135	45	55	85	200	1Cr1₈Ni₉Ti	≤200	醋酸类
SA41Y-160P	15	16.0	95	115	95	100	238	1Cr1₈Ni₉Ti	≤200	醋酸类
"	20	"
"	25	"
"	32	"	115	165	165	135	310	"	"	"
SA41Y-320P	15	32.0	105	115	95	100	238	1Cr1₈Ni₉Ti	≤200	醋酸类
"	20	"	110	115	95	100	238	"	"	"
"	25	"						"	"	"
"	32	"	135	165	130	135	334	"	"	"
SA41Y-500P	15	50.0	105	115	95	100	222	1Cr1₈Ni₉Ti	≤200	醋酸类
A42Y-16P	25	1.6					230	1Cr1₈Ni₉Ti	≤200	醋酸类
"	32	"	135	145	115	100	285	"	"	"
"	40	"	150	160	120	110	278	"	"	"
"	50	"	165	180	135	120	323	"	"	"
"	65	"						"	"	"
"	80	"	200	215	170	135	478	"	"	"
"	100	"	220	245	205	160	590	"	"	"
"	150	"	280	310	255	230	650	"	"	"
"	200	"						"	"	"
A42Y-40P	32	4.0	140	150	115	100	285	1Cr1₈Ni₉Ti	≤200	醋酸类
"	40	"	145	160	130	115	278	"	"	"
"	50	"	160	180	145	130	332	"	"	"
"	65	"						"	"	"
"	80	"	195	215	170	150	478	"	"	"
"	100	"	230	245	205	185	590	"	"	"
"	150	"	300	310	255	230	650	"	"	"
"	200	"						"	"	"
A42Y-64P	32	6.4						1Cr1₈Ni₉Ti	≤200	醋酸类
"	40	"	165	160	130	120	305	"	"	"
"	50	"	175	180	155	130	462	"	"	"
"	65	"						"	"	"
"	80	"	210	230	175	160	582	"	"	"
"	100	"	250	270	195	195	600	"	"	"
A42Y-100P	32	10.0						1Cr1₈Ni₉Ti	≤200	醋酸类
"	40	"						"	"	"
"	50	"						"	"	"
"	65	"						"	"	"

"	80	"						"	"	"
"	100	"						"	"	"
A42Y-16R	25	1.6						OCr18Ni12Mo2Ti	≤200	醋酸类
"	32	"	135	145	115	100	265	"	"	"
"	40	"	150	160	120	110	278	"	"	"
"	50	"	165	180	135	120	332	"	"	"
"	65	"						"	"	"
"	80	"	200	215	170	135	478	"	"	"
"	100	"	220	245	205	160	590	"	"	"
"	150	"	280	310	255	230	650	"	"	"
"	200	"						"	"	"
A42Y-40R	32	4.0	140	150	115	100	260	OCr18Ni12Mo2Ti	≤200	醋酸类
"	40	"	145	160	130	120	278	"	"	"
"	50	"	160	180	145	130	332	"	"	"
"	65	"						"	"	"
"	80	"	195	215	170	150	478	"	"	"
"	100	"	230	245	205	185	590	"	"	"
"	150	"	300	310	255	230	650	"	"	"
"	200	"						"	"	"
A42Y-64R	32	6.4						OCr18Ni12Mo2Ti	≤200	醋酸类
"	40	"	165	160	130	120	308	"	"	"
"	50	"	175	180	155	130	464	"	"	"
"	65	"						"	"	"
"	80	"	210	230	175	160	582	"	"	"
"	100	"	250	270	195	195	600	"	"	"
A42Y-100R	32	10.0						OCr18Ni12Mo2Ti	≤200	醋酸类
"	40	"						"	"	"
"	50	"						"	"	"
"	65	"						"	"	"
"	80	"						"	"	"
"	100	"						"	"	"
A44Y-16P	32	1.6						1Cr1₈Ni₉Ti	≤200	醋酸类
"	40	"	150	165	120	110	314	"	"	"
"	50	"	165	185	135	120	375	"	"	"
"	65	"						"	"	"
"	80	"	200	220	170	135	538	"	"	"
"	100	"	215	245	205	185	655	"	"	"
"	150	"	280	310	255	230	740	"	"	"
"	200	"						"	"	"
A44Y-40P	32	4.0						1Cr1₈Ni₉Ti	≤200	醋酸类
"	40	"	145	165	130	120	314	"	"	"
"	50	"	160	180	145	130	376	"	"	"
"	65	"						"	"	"
"	80	"	190	215	170	150	538	"	"	"
"	100	"	250	245	205	185	655	"	"	"
"	150	"	300	310	255	230	740	"	"	"
"	200	"						"	"	"
A44Y-64P	32	6.4						1Cr1₈Ni₉Ti	≤200	醋酸类
"	40	"						"	"	"
"	50	"	175	180	155	130	520	"	"	"
"	65	"						"	"	"
"	80	"	210	230	185	160	810	"	"	"
"	100	"	250	270	195	195	890	"	"	"
A44Y-100P	32	10.0						1Cr1₈Ni₉Ti	≤200	醋酸类
"	40	"						"	"	"
"	50	"	195	180	155	130	520	"	"	"
"	65	"						"	"	"
"	80	"	230	230	175	160	815	"	"	"
"	100	"	265	270	220	210	680	"	"	"

上海金盾阀门制造有限公司始终以质量为本，一切为满足用户的经营理念，不断引进国外先进的新技术，新工艺、新材料，竭诚为用户提供优质的阀门产品和更加完善的售后服务。

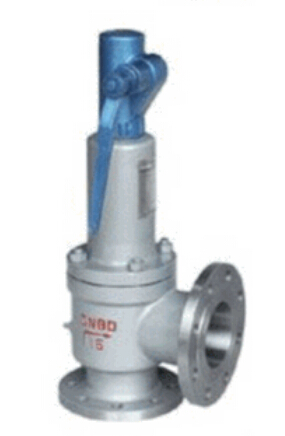

上海金盾A41Y、A42Y、A44Y不锈钢安全阀
