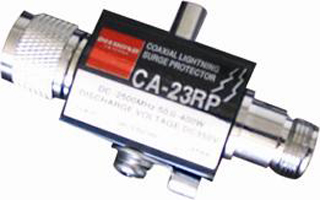

CA-23RP 2.5GHz 200W coaxial lightning surge
Protector
with connector N
DeSCRJPTion
The surge protector is a lightning arrestor of coaxial construction. This device designed to absorb the surge of lightning s
trikes on an antenna at the top of a building and ground it,thus providing full lightning protection for transceivers,receivers,etc.
Package
1 x CA-23RP coaxial lightning surge protector
If you have any question,please be free to contact us!!!
More quantity,please be free to contact us!!!
Specification
|
Frequency range |
DC2500MHz |
|
VSWR |
Less than1.1 |
|
Loss |
Less than 0.2dB |
|
Withstand power |
400W PEP |
|
Voltage at discharge start |
DC350V±15% |
|
Discharge voltage of shock wave(1 x 40)S |
1,000V |
|
Withstand current of shock wave(1 x 40)S |
6,000A |
|
Repetitive discharge of shock wave(1 x 40)S500A,over 500 times |
DC350V±20% |
|
Insulating resistance DC 100V |
Over10,000M |
|
Connector |
N Type |
|
Outer dimensions (Max.value incl.connector) |
77W x 41H x 20Dmm |
|
Weight |
114g |
DIAMOND（钻石）CA-23R、CA-23RP、CA-23RS天馈避雷器，天馈防雷器
产品型号：CA-23R，CA-23RP，CA-23RS
产品品牌：DIAMOND（钻石）
|
型号 |
CA-23R |
CA-23RP |
|
接口 |
N 接口 |
N 接口 |
|
频率范围 |
DC-2500MHz |
DC-2500MHz |
|
VSWR |
<1.2:1 |
<1.2:1 |
|
插入损耗 |
<0.2dB |
<0.2dB |
|
功率 |
200W PEP |
200W PEP |
|
放电电压 |
DC230V±15% |
DC230V±15% |
|
脉冲放电电压（1x40）us |
1000V |
1000V |
|
脉冲放电电流（1x40）us |
6 KA |
6 KA |
|
（1x40）us 500A 重复放电，次数大于500次 |
DC230V±20% |
DC230V±20% |
|
100V 绝缘电阻 |
>10,000MΩ |
>10,000MΩ |
|
连接器 |
N-R/N-R |
N-R/N-P |
|
外形尺寸 |
78×41×20mm |
76×41×20mm |
|
重量 |
100g |
110g |
