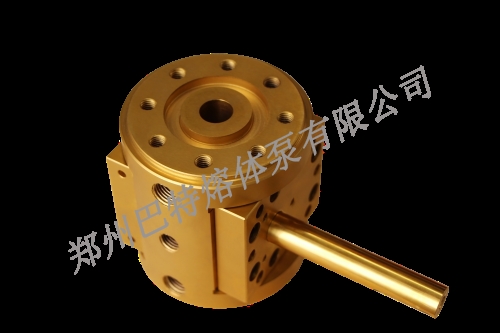

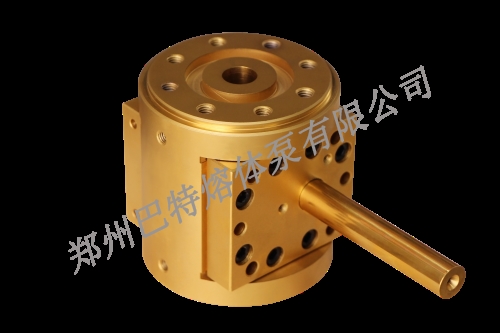

ZB-E系列圆体泵circular melt pump

ZB-E系列圆体泵主要用于挤出机或中高粘度聚合物的增压和稳定流量输送。加热方式主要为电加热。适用于PS . PET . PVC . PC . PA . PMMA . HDPE .LDPE . LLDPE . PP .等工艺中。

技术参数

泵体: 高温工具钢，

齿轮: 高温工具钢，渗氮钢

滑动轴承: 高温工具钢

轴封: 螺旋密封，填料密封

加热系统 : 电加热

规格/流量范围: 从0.5CC - 2500CC, 0.5cm3/rev - 2500cm3/rev

操作参数

粘度: ≤40000 Pas

温度: ≤400℃

清洗温度: ≤450℃

进口压力: 最高可达12MPa

最高压差: 可达25MPa

ZB-E Series Circular Melt Pump

ZB-E series circular melt pump is mainly used for extruder or pressurization, stabilizing flow and transportation of medium or high viscosity polymer. This series of melt pump primarily adopts electrical heating, and applies to PS, PET, PVC, PC, PA, PMMA, HDPE, LDPE, LLDPE, PP, etc.

Technical Parameter

Material for Melt Pump Body: High Temperature Tool Steel

Material for Gear: High Temperature Tool Steel or Nitrided Steel

Material for Sliding Bearing: High Temperature Tool Steel

Shaft Sealing: Spiral Sealing or Packing Sealing

Heating System: Electrical Heating

Model/Volume Range: 0.5CC - 2500CC, 0.5cm3/rev - 2500cm3/rev

Operating Parameter

Viscosity: ≤40000 Pas

Working Temperature: ≤400℃

Cleaning Temperature: ≤450℃

Inlet Pressure: ≤12MPa

Differential Pressure:≤25MPa

======================================================================
