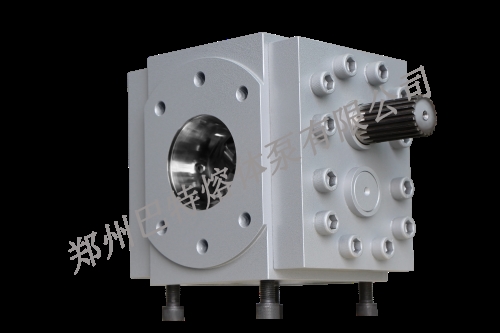

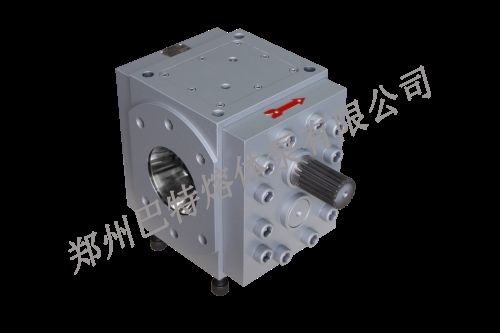

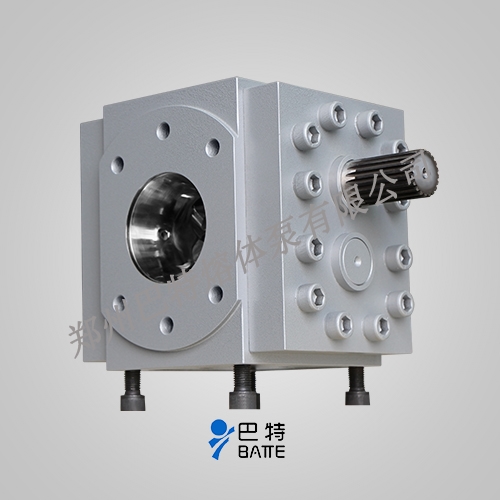

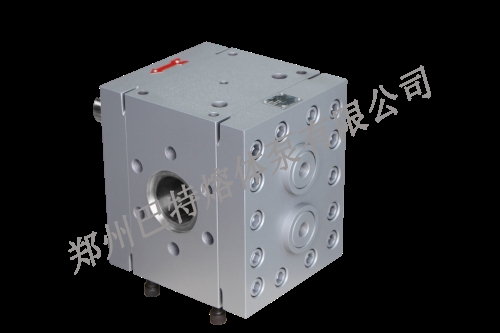

ZB-R系列橡胶泵rubber melt pump

ZB-R系列橡胶泵具有高效的自清洁功能，简洁的设计，优化了流体通道。高压差下脉动率更低。适用于聚丁橡胶、氯丁二烯橡胶、EPDM、SBR、NBR、天然橡胶等工艺中。

技术参数

泵体: 高温工具钢，

齿轮: 高温工具钢，渗氮钢

滑动轴承: 高温工具钢

轴封: 螺旋外排

加热系统 : 电加热 、热水加热

冷却系统：轴端冷却系统

规格/流量范围: 从50CC - 2000CC, 50cm3/rev - 2000cm3/rev

操作参数

粘度: ≤20000 Pas

温度: ≤130℃

清洗温度: ≤350℃

进口压力: ≤20MPa

最高压差: 可达50MPa

ZB-R Series Rubber Melt Pump

ZB-R series rubber melt pump is efficiently self-cleaning. The structure for shaft sleeves is simple, while the fluid passageway is specially designed. All of this make the pulsation rate become much lower under the higher differential pressure. This series of melt pump applies to butadiene rubber, chloroprene rubber, EPDM, SBR, NBR, natural rubber, etc.

Technical Parameter

Material for Melt Pump Body: High Temperature Tool Steel

Material for Gear: High Temperature Tool Steel or Nitrided Steel

Material for Sliding Bearing: High Temperature Tool Steel

Shaft Sealing: Spiral Discharging

Heating System: Electrical Heating or Hot Water Heating

Cooling System: Shaft End Cooling

Model/Volume Range: 50CC - 2000CC, 50cm3/rev - 2000cm3/rev

Operating Parameter

Viscosity: ≤20000

Working Temperature: ≤130℃

Cleaning Temperature:≤350℃

Inlet Pressure: ≤20MPa

Differential Pressure:≤50MPa

======================================================================
