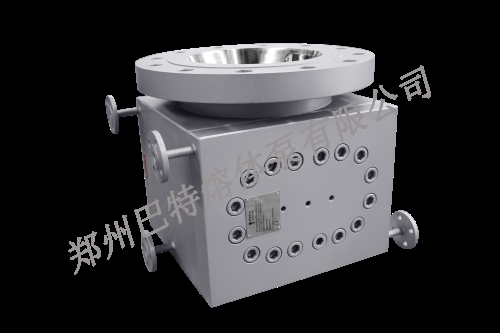

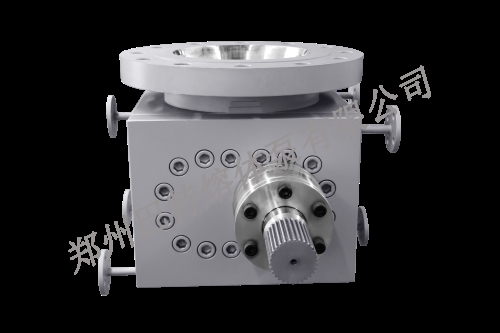

ZB-F系列釜底泵bottoms pump

ZB-F系列釜底泵主要用于输送真空反应器中的中高粘度的介质，吸入口大法兰设计，在真空条件下能使高粘度介质顺利吸入。主要应用于ABS、PS、PC、PET、SAN、PP、PE Bioploymers等介质。

计量泵、齿轮泵主要用于化工、化纤、纺丝、石油、食品工业、生物、医药等行业。如：腈纶、涤纶、高强度聚乙烯、树脂、食品、医药、粘合剂、多元醇、石油等行业。

技术参数：

泵体：不锈钢，碳钢，哈氏合金，蒙乃尔合金

齿轮：工具钢，渗氨钢，特种材料及涂层，齿形为直齿，斜齿或人字齿

滑动轴承：工具钢，钛钽合金，银镍合金，特种材料及涂层

轴封：机械密封，填料+螺旋密封，带冲洗液的组合密封

加热系统：导热油加热，联苯气体加热

规格/流量范围：0.5CC-12000CC

操作参数：

粘度：≤40000Pa.s

工作温度：≤400℃(750°F)

清洗温度：≤450℃(850°F)

进口压力：真空--1.5MPa

出口压差：≤40MPa

ZB-F series bottoms pump is mainly used to transport vacuum reactor high-viscosity media, the inlet Dharma Blue design, enabling high-viscosity media smoothly under vacuum suction. Mainly used in ABS, PS, PC, PET, SAN, PP, PE Bioploymers other media.

Metering pumps, gear pumps for the chemical industry, chemical fiber, spinning, oil, food industry, biotechnology, pharmaceutical and other industries. Such as: acrylic, polyester, high strength polyethylene, rubber, food, medicine, adhesives, polyols, petroleum and other industries.

Technical Parameters:

Pump body: stainless steel, carbon steel, Hastelloy, Monel

Gear: tool steel, ammonia seepage steel, special materials and coatings, tooth straight teeth, Helical or herringbone

Bearing: tool steel, titanium, tantalum alloy, silver-nickel alloys, special materials and coatings

Shaft seal: mechanical seals, packing + spiral seal with a combination of flushing liquid seal

Heating system: oil heating, gas heating biphenyl

Specifications / flow range: 0.5CC-12000CC

Operating parameters:

Viscosity: ≤40000Pa.s

Working temperature: ≤400 ℃ (750 ° F)

Cleaning temperature: ≤450 ℃ (850 ° F)

Inlet pressure: Vacuum --1.5MPa

Outlet pressure: ≤40MPa

======================================================================
