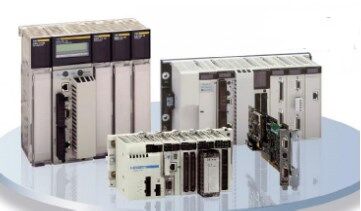

《140AC013000 施耐德PLC》
140AC013000 施耐德 PLC 价格
140AC013000 工作原理:
通信实现
5.1 通信设置
(1) 变频器设置
使用RS-485方式通信时,将终端变频器的外部设定开关SW2设置为ON,接入120Ω的终端电阻。将S+与R+,S-与R-连接。
每台变频器使用前要设定与通信相关的参数,将运行控制方式、频率控制方式均设定为“通信”,频率单位设为0.1Hz,还要设定从站地址,通信参数设为1位启动位,8位数据位,1位停止位,偶校验,9600bps波特率。
(2) 通信板设置
对通信板上的开关作调整,将SW1置于2侧,使用RS-485方式;SW2设定为ON,接入120Ω的终端电阻。
设定通信板端口A为通信协议宏方式。PLC的通信参数设定必须与变频器的参数一致。
5.2 编写通信程序
通信协议宏的调用程序段如图6所示。其中,28908为通信板端口A操作标志。28908为OFF,表示可以使用端口A进行通信。通信过程中 28908置ON,通信结束后,28908置为OFF状态。当23201由OFF变为ON、且28908为OFF时,调用通信板上的通信序列,通过端口A 发送和接收数据。
DCS集散式控制系统、PLC可编程控制器、数控系统、(CPU处理器、模块、卡件、控制器、伺服驱动、驱动器、马达电机、 内存卡、
电源,机器人备件等)各类工控备品备件产品。(A-B,ABB,GE,FOXBORO,KUKA,SIEMENS,WESTINGHOUSE,SCHNEIDER……)
【厦门光沃自动化设备有限公司】
【联 系
人:陈晓】
【免费热线:0592-5709825】
【24小时开机:18030229053 】
【工作QQ:
2479261344】
