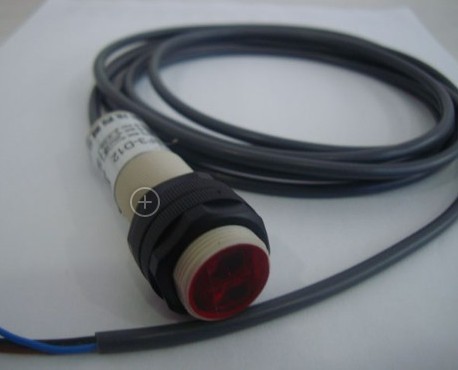

欧姆龙开关E3S-AT11
欧姆龙开关E3S-AT11

产品资料：

maximum for soldering connectors.

Connector Arrangement山武行程开关 霍尼韦尔限位开关 欧姆龙光电开关

For safety, when constructing a connection system between a Sensor

and panel with a connector, make sure that the connector plug is on

the Sensor side and the connector socket is on the panel side (i.e.,

the female pins are located on the power-supply side).

Connecting the XS5山武行程开关 霍尼韦尔限位开关 欧姆龙光电开关

1. Connecting the XS5 Plug and Socket

? Align the projection on the plug cover with the polarity key on the

socket, then insert the plug all the way in.

? Hold the knurled socket grip, then insert the projection on the plug

into the groove of the socket.

? Turn the knurled grips of the socket clockwise approximately 45

degrees in respect to the plug. A click will indicate that the山武行程开关 霍尼韦尔限位开关 欧姆龙光电开关

Connectors are locked. The locking condition can also be

confirmed by the alignment marks on the plug and socket.

2. Connecting the XS5 and XS2

? Align the projection on the plug cover with the polarity key on the

socket, then insert the plug all the way in.

? In the same way as when connecting two XS2 Connectors, screw

the knurled grip in the clockwise direction.山武行程开关 霍尼韦尔限位开关 欧姆龙光电开关

? Use your fingers to tighten the Connectors sufficiently.

Connector Cable external diameter (mm)

6 mm 5 mm 4 mm 3 mm

For 6-mm-dia. cable 1 0 --- ---

For 4-mm-dia. cable --- 2 1 ---

For 3-mm-dia. cable --- --- 2 1

Triangle mark山武行程开关 霍尼韦尔限位开关 欧姆龙光电开关

Cover lock Pin block

Cover

P

Safety Precautions

Do not use the Connectors in an atmosphere or environment that

exceeds the specifications.

Connector Connection and Disconnection山武行程开关 霍尼韦尔限位开关 欧姆龙光电开关

? When connecting or disconnecting Connectors, be sure to hold the

Connectors by hand.

? Do not hold the cable when disconnecting Connectors.

? When mating Connectors, be sure to insert the plug all the way to

the back of the socket before attempting to lock the Connectors.

? Do not use tools of any sort to mate the Connectors. Always use山武行程开关 霍尼韦尔限位开关 欧姆龙光电开关山武行程开关 霍尼韦尔限位开关 欧姆龙光电开关

your hands. Pliers or other tools may damage the Connectors.

? When mating the Connectors to XS2 or other M12 Connectors,

tighten the lock by hand to a torque of 0.39 to 0.49 N?m. 山武行程开关 霍尼韦尔限位开关 欧姆龙光电开关
