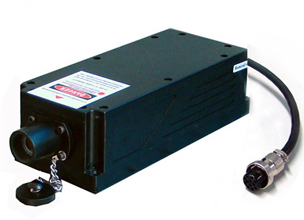

单纵模激光器
单纵模激光器指输出激光模式既是单纵模又是单横模的激光器。单纵模是指谐振腔内只有单一纵模(单一频率)进行振荡;单横模又称TEM00模，是指光强在光横截面上的分布为高斯分布。
Model
MSL-FN-532-S
Wavelength (nm)
532±1
Operating mode
CW
Output power (mW)
>1, 5, 10, 20, … , 400
Power stability (rms, over 4 hours)
<1%, <3%, <5%
Transverse mode
TEM00
Longitudinal mode
Single
Spectral linewidth (nm)
<0.00001
Frequency stability over 8 hours(MHz)
<±200
Coherent length (m)
>50
Noise of amplitude (rms, 1Hz~20MHz)
<0.5%, <1%
M2 factor
<1.2
Beam diameter at the aperture (1/e2, mm)
<1.5
Beam divergence, full angle (mrad)
<1.2
Polarization ratio
>20:1, >100:1, >500:1, optional
Warm-up time (minutes)
<15
Pointing stability after warm-up (mrad)
<±0.05
Beam height from base plate (mm)
27.4
Operating temperature (℃)
15~35
Extra heatsink
TC-01
Power supply (90-264VAC)
PSU-H-FDA
Expected lifetime (hours)
10000
单纵模激光器简介
Vertical±5 degree (Horizontal Optional)
Warranty
1 year
