D类15W双声道PAM8124RHR龙鼎微一级代理.龙创威电

Diodes Inc. PAM8124 is a 15W efficient, Class-D audio power amplifier for driving stereo speakers in a single-ended configuration; or a mono speaker in a bridge-tied-load configuration. The PAM8124 can drive stereo speakers (SE) as low as 4Ω. Due to the low power dissipation and high efficiency, up to 95%, the device can be used without any external heat sink when playing music. The gain of the amplifier is controlled by 2 gain selectable pins, offering 20dB, 26dB, 32dB, and 36dB gain selections. The PAM8124 is available in a TSSOP-24-EP package.

30W/Ch into 8Ω BTL Load from 22V Supply
15W/Ch into 4Ω SE Load from 22V Supply
10W/Ch into 8Ω SE Load from 24V Supply
Operate from 10V to 26V
Single-Ended Analog Inputs
Supports Multiple Output Configurations:
- 2-Ch Single-Ended (SE, Half-Bridge)
- 1-Ch Bridge-Tied Load (BTL, Full-Bridge)
Four Selectable Fixed-gain Settings
No Pop Noise for Start-up and Shut-down Sequences
Internal Oscillator (No External Components Required)
High Efficient Class-D Operation Eliminates Need for Heat Sinks
Thermal and Short-Circuit Protection with Auto Recovery

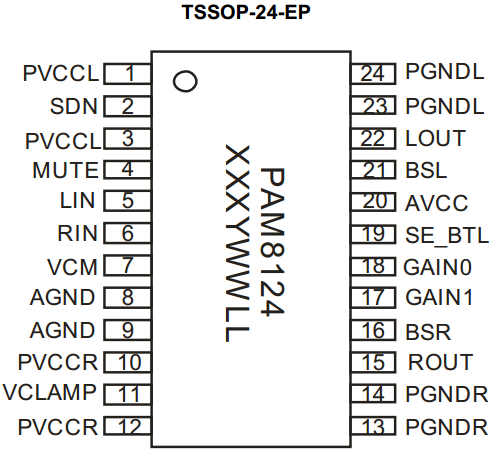

Space-Saving Surface-Mount TSSOP-24EP Package
Pb-Free Package
