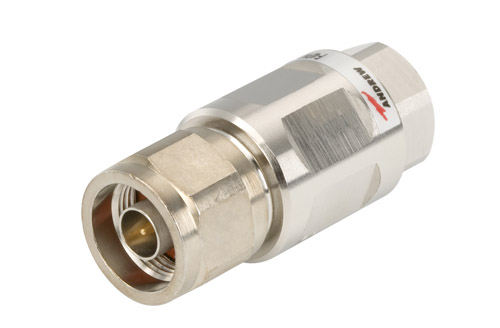

F4PDMV2-C
7-16 DIN Male for 1/2 in FSJ4-50B cable
|
General Specifications |
|
|
Interface |
7-16 DIN Male |
|
Body Style |
Straight |
|
Brand |
HELIAX® |
|
Mounting Angle |
Straight |
|
|
|
|
Electrical Specifications |
|
|
Connector Impedance |
50 ohm |
|
Operating Frequency Band |
0 – 7500 MHz |
|
Cable Impedance |
50 ohm |
|
3rd Order IMD, typical |
-120 dBm @ 910 MHz |
|
3rd Order IMD Test Method |
Two +43 dBm carriers |
|
RF Operating Voltage, maximum (vrms) |
884.00 V |
|
dc Test Voltage |
2500 V |
|
Outer Contact Resistance, maximum |
1.50 mOhm |
|
Inner Contact Resistance, maximum |
0.80 mOhm |
|
Insulation Resistance, minimum |
5000 MOhm |
|
Average Power |
1.0 kW @ 900 MHz |
|
Peak Power, maximum |
15.60 kW |
|
Insertion
Loss, typical |
0.05 dB |
|
Shielding Effectiveness |
-110 dB |
|
|
|
|
Mechanical Specifications |
|
|
Outer Contact Attachment Method |
Crush-flare |
|
Inner Contact Attachment Method |
Captivated |
|
Outer Contact Plating |
Trimetal |
|
Inner Contact Plating |
Silver |
|
Attachment Durability |
25 cycles |
|
Interface Durability |
500 cycles |
|
Interface Durability Method |
IEC 61169-4:9.5 |
|
Connector Retention Tensile Force |
890 N | 200 lbf |
|
Connector Retention Torque |
5.42 N-m | 48.00 in lb |
|
Insertion Force |
200.17 N | 45.00 lbf |
|
Insertion Force Method |
IEC 61169-1:15.2.4 |
|
Pressurizable |
No |
|
Coupling Nut Proof Torque |
24.86 N-m | 220.00 in lb |
|
Coupling Nut Retention Force |
1000.85 N | 225.00 lbf |
|
Coupling Nut Retention Force Method |
MIL-C-39012C-3.25, 4.6.22 |
|
|
|
|
Dimensions |
|
|
Nominal Size |
1/2 in |
|
Diameter |
34.54 mm | 1.36 in |
|
Length |
50.01 mm | 1.97 in |
|
Weight |
136.08 g | 0.30 lb |
|
|
|
|
Environmental Specifications |
|
|
Operating Temperature |
-55 °C to +85 °C (-67 °F to +185 °F) |
|
Storage Temperature |
-55 °C to +85 °C (-67 °F to +185 °F) |
|
Immersion Depth |
1 m |
|
Immersion Test Mating |
Mated |
|
Immersion Test Method |
IEC 60529:2001, IP68 |
|
Water Jetting Test Mating |
Mated |
|
Water Jetting Test Method |
IEC 60529:2001, IP66 |
|
Moisture Resistance Test Method |
MIL-STD-202F, Method 106F |
|
Mechanical Shock Test Method |
MIL-STD-202F, Method 213B, Test Condition C |
|
Thermal Shock Test Method |
MIL-STD-202, Method 107, Test Condition A-1, Low Temperature -55 °C |
|
Vibration Test Method |
MIL-STD-202F, Method 204D, Test Condition B |
|
Corrosion Test Method |
MIL-STD-1344A, Method 1001.1, Test Condition A |
|
|
|
|
Standard Conditions |
|
|
Attenuation, Ambient Temperature |
20 °C | 68 °F |
|
Average Power, Ambient Temperature |
40 °C | 104 °F |
Return Loss/VSWR
|
Frequency Band |
VSWR |
Return Loss (dB) |
|
0–2200 MHz |
1.03 |
36.00 |
|
2200–2700 MHz |
1.05 |
33.00 |
|
2700–3000 MHz |
1.05 |
32.00 |
Regulatory Compliance/Certifications
|
Agency |
Classification |
|
RoHS 2011/65/EU |
Compliant by Exemption |
|
China RoHS SJ/T 11364-2006 |
Above Maximum Concentration Value (MCV) |
|
ISO 9001:2008 |
Designed, manufactured and/or distributed under this quality management system |
