L2TNF-PL

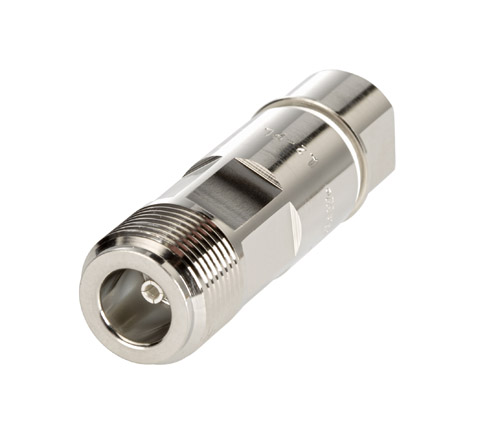

Type N Female Positive Lock for 3/8 in LDF2-50 cable
Standard
Conditions
Attenuation,
Ambient Temperature
20
°C | 68 °F
Average Power,
Ambient Temperature
40
°C | 104 °F
Average Power,
Inner Conductor Temperature
100
°C | 212 °F
Return Loss/VSWR
Frequency Band
VSWR
Return Loss (dB)
0–960 MHz
1.03
37.60
960–2200 MHz
1.06
30.30
2200–2700 MHz
1.08
28.50
2700–4000 MHz
1.09
27.00
4000–6000 MHz
1.09
27.00
6000–8000 MHz
1.16
22.50
8000–10000 MHz
1.27
18.50
10000–12000 MHz
1.29
18.00
Regulatory Compliance/Certifications
Agency
Classification
RoHS 2011/65/EU
Compliant by Exemption
China RoHS SJ/T 11364-2006
Above Maximum Concentration
Value (MCV)
ISO 9001:2008
Designed, manufactured
and/or distributed
under this quality management system
