| 产品特点 |
|
? 理想的重点照明产品，特别适用于需要调光的场合 ? 可直接替换MR16卤素灯杯 ? 节能超过80%，投资回报期短 ? 40,000小时寿命，降低维护成本 ? 采用Airfux散热技术 ? TRANSFORMAX ® 智能驱动，兼容现有12V电子变压器 ? 适用于室内开放式灯具，最小间隙>10mm |
|
||||
| 更好的显色性 | 更高的光束质量 | 更好的调光效果 | ||
| 精心设计的色彩技术，使本产品CRI高达97，可媲美晴天太阳光，完美还原物体的自然本色。同时色域面积指数为100，能充分展现鲜物体艳、生动、明亮和栩栩如生的颜色。 | 单点发光，低眩光，无重影，保护用眼安全。 | MASTER LED MR16商用调光灯杯搭配调光配件，可匹配90%以上的调光器，免去更换调光器的成本与时间。调光范围更广，最低可调到5%以下。 | ||

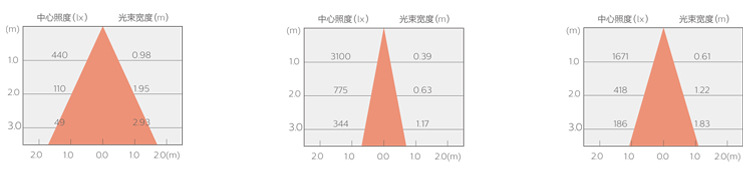

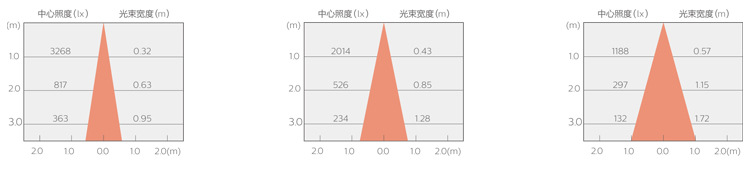

| 平均照度图 | ||||
| LED 7-50W 927 MR16 15D Dim | LED 7-50W 927 MR16 24D Dim | LED 7-50W 927 MR16 36D Dim | ||
|
||||
| LED 7-50W 927 MR16 60D Dim | LED 8-50W+ 827 MR16 24D Dim | LED 8-50W+ 827 MR16 36D Dim | ||
|
||||

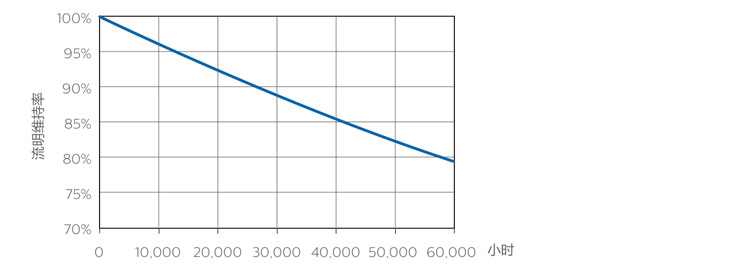

| 流明维持率曲线 | ||||
|
||||

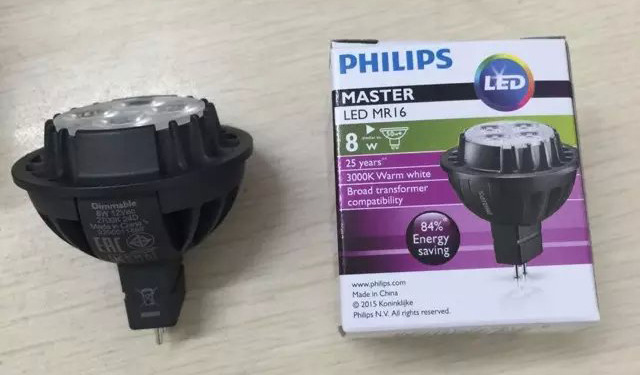

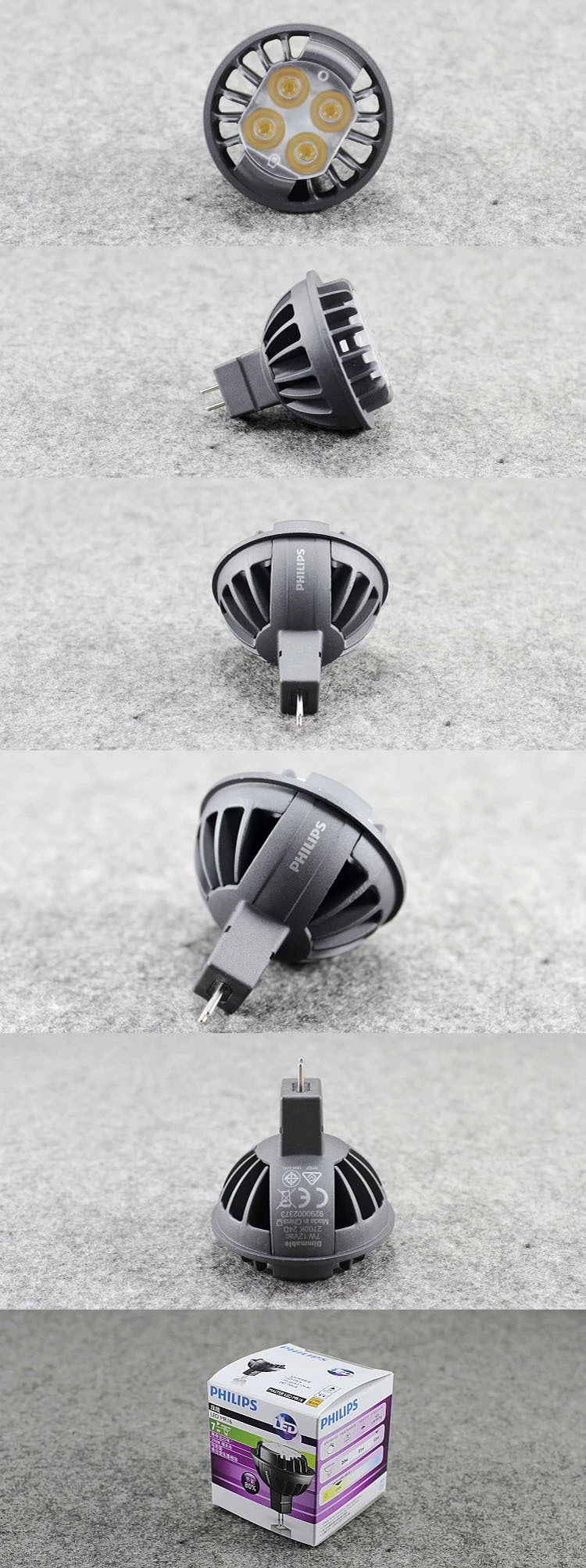

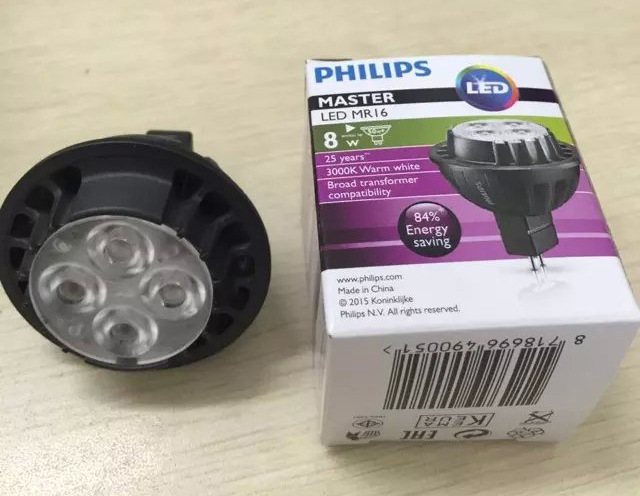

| 产品实拍 | ||||
| MASTER LED 7-50W 927 MR16 Dim CN | ||||
|
||||
| MASTER LED 8-50W+ MR16 24D CN | ||||
|
||||
|
||||
产品尺寸
|
|
||
|
产品
|
高（mm）
|
直径（mm）
|
重量（g）
|
|
7W
|
51
|
51
|
50
|
|
8W
|
54
|
50
|
60
|
技术参数
|
产品型号
|
光源功率
|
替代功率
|
电压
|
灯头
|
寿命
|
光通量
|
中心光强
|
|
W
|
W
|
V
|
|
hrs
|
lm
|
cd
|
|
|
MASTER LED 7-50W 927 MR16 15D Dim CN
|
7
|
50
|
12
|
GU5.3
|
40000
|
400
|
2800
|
|
MASTER LED 7-50W 930 MR16 15D Dim CN
|
7
|
50
|
12
|
GU5.3
|
40000
|
420
|
2950
|
|
MASTER LED 7-50W 940 MR16 15D Dim CN
|
7
|
50
|
12
|
GU5.3
|
40000
|
440
|
3050
|
|
MASTER LED 7-50W 927 MR16 24D Dim CN
|
7
|
50
|
12
|
GU5.3
|
40000
|
420
|
2100
|
|
MASTER LED 7-50W 930 MR16 24D Dim CN
|
7
|
50
|
12
|
GU5.3
|
40000
|
440
|
2200
|
|
MASTER LED 7-50W 940 MR16 24D Dim CN
|
7
|
50
|
12
|
GU5.3
|
40000
|
460
|
2300
|
|
MASTER LED 7-50W 927 MR16 36D Dim CN
|
7
|
50
|
12
|
GU5.3
|
40000
|
420
|
1150
|
|
MASTER LED 7-50W 930 MR16 36D Dim CN
|
7
|
50
|
12
|
GU5.3
|
40000
|
440
|
1200
|
|
MASTER LED 7-50W 940 MR16 36D Dim CN
|
7
|
50
|
12
|
GU5.3
|
40000
|
460
|
1250
|
|
MASTER LED 7W 927 MR16 60D Dim AU
|
7
|
50
|
12
|
GU5.3
|
40000
|
420
|
440
|
|
MASTER LED 7W 930 MR16 60D Dim AU
|
7
|
50
|
12
|
GU5.3
|
40000
|
440
|
460
|
|
MASTER LED 7W 940 MR16 60D Dim AU
|
7
|
50
|
12
|
GU5.3
|
40000
|
460
|
490
|
|
MASTER LED 8-50W+ 827 MR16 24D CN
|
8
|
50+
|
12
|
GU5.3
|
40000
|
635
|
3100
|
|
MASTER LED 8-50W+ 830 MR16 24D CN
|
8
|
50+
|
12
|
GU5.3
|
40000
|
660
|
3250
|
|
MASTER LED 8-50W+ 827 MR16 36D CN
|
8
|
50+
|
12
|
GU5.3
|
40000
|
635
|
1650
|
|
MASTER LED 8-50W+ 830 MR16 36D CN
|
8
|
50+
|
12
|
GU5.3
|
40000
|
660
|
1700
|
|
|
|
|
|
|
|
|
|
|
产品型号
|
出光角度
|
调光
|
色温
|
显色指数
|
最小包装
|
12NC
|
|
|
°
|
|
K
|
|
个/箱
|
|
||
|
MASTER LED 7-50W 927 MR16 15D Dim CN
|
15
|
是
|
2700
|
90
|
10
|
929001152510
|
|
|
MASTER LED 7-50W 930 MR16 15D Dim CN
|
15
|
是
|
3000
|
90
|
10
|
929001152610
|
|
|
MASTER LED 7-50W 940 MR16 15D Dim CN
|
15
|
是
|
4000
|
90
|
10
|
929001152710
|
|
|
MASTER LED 7-50W 927 MR16 24D Dim CN
|
24
|
是
|
2700
|
90
|
10
|
929001152810
|
|
|
MASTER LED 7-50W 930 MR16 24D Dim CN
|
24
|
是
|
3000
|
90
|
10
|
929001152910
|
|
|
MASTER LED 7-50W 940 MR16 24D Dim CN
|
24
|
是
|
4000
|
90
|
10
|
929001153010
|
|
|
MASTER LED 7-50W 927 MR16 36D Dim CN
|
36
|
是
|
2700
|
90
|
10
|
929001153110
|
|
|
MASTER LED 7-50W 930 MR16 36D Dim CN
|
36
|
是
|
3000
|
90
|
10
|
929001153210
|
|
|
MASTER LED 7-50W 940 MR16 36D Dim CN
|
36
|
是
|
4000
|
90
|
10
|
929001153310
|
|
|
MASTER LED 7W 927 MR16 60D Dim AU
|
60
|
是
|
2700
|
90
|
10
|
929001153449
|
|
|
MASTER LED 7W 930 MR16 60D Dim AU
|
60
|
是
|
3000
|
90
|
10
|
929001153549
|
|
|
MASTER LED 7W 940 MR16 60D Dim AU
|
60
|
是
|
4000
|
90
|
10
|
929001153649
|
|
|
MASTER LED 8-50W+ 827 MR16 24D CN
|
24
|
是
|
2700
|
80
|
10
|
929001149810
|
|
|
MASTER LED 8-50W+ 830 MR16 24D CN
|
24
|
是
|
3000
|
80
|
10
|
929001149910
|
|
|
MASTER LED 8-50W+ 827 MR16 36D CN
|
36
|
是
|
2700
|
80
|
10
|
929001150110
|
|
|
MASTER LED 8-50W+ 830 MR16 36D CN
|
36
|
是
|
3000
|
80
|
10
|
||
898995850
